Trip Report: Dyess Missile Sites
First published in 2000-03. Reformatted 2025. A benefit of membership in the Atlas ICBM Historical Society is visiting some of the Dyess Atlas F sites, courtesy of the current owners. This Trip Report will cover a series of visits, listed by site number rather than chronology. Just a reminder PIN means Permanent Installation Number and ILC means Installation Location Code; I include these for Air Force properties when I know them. Dyess Missile Site #3 (578-3) TX, PIN 7268. On 28 October 2000, the Atlas ICBM Historical Society arranged a tour of Dyess Missile Site #3, which is now owned by the Clyde Independent School District (CISD) and used for school bus parking and maintenance. One Quonset hut remains, and the slab for the other is visible. The security gate is in place, and some of the original locking mechanism remains. The UHF antenna still has the emitter. An unusual feature of this site is a pair of pop-up antenna silos. The entry portal is in good shape, as is the perimeter fence. The remains of the water treatment structure, cooling tower foundation, fuel hydrant fittings, escape hatch, sight tube platform, and sewage system are visible. The silo doors are in good condition. Three of four light pole mounts remain in place. Underground, the stairwell and Launch Control Center (LCC) are quite wet. The blast doors have had walk-through openings cut through them. Notice the ladder leading into the escape hatch. A painted sign near the stairs still reads "NO LONE ZONE." Some conduit is in place. Many of the light fixture shock mounts are in place in the LCC (note also one of the four support links which supported the floor structure on shock absorbers).General view

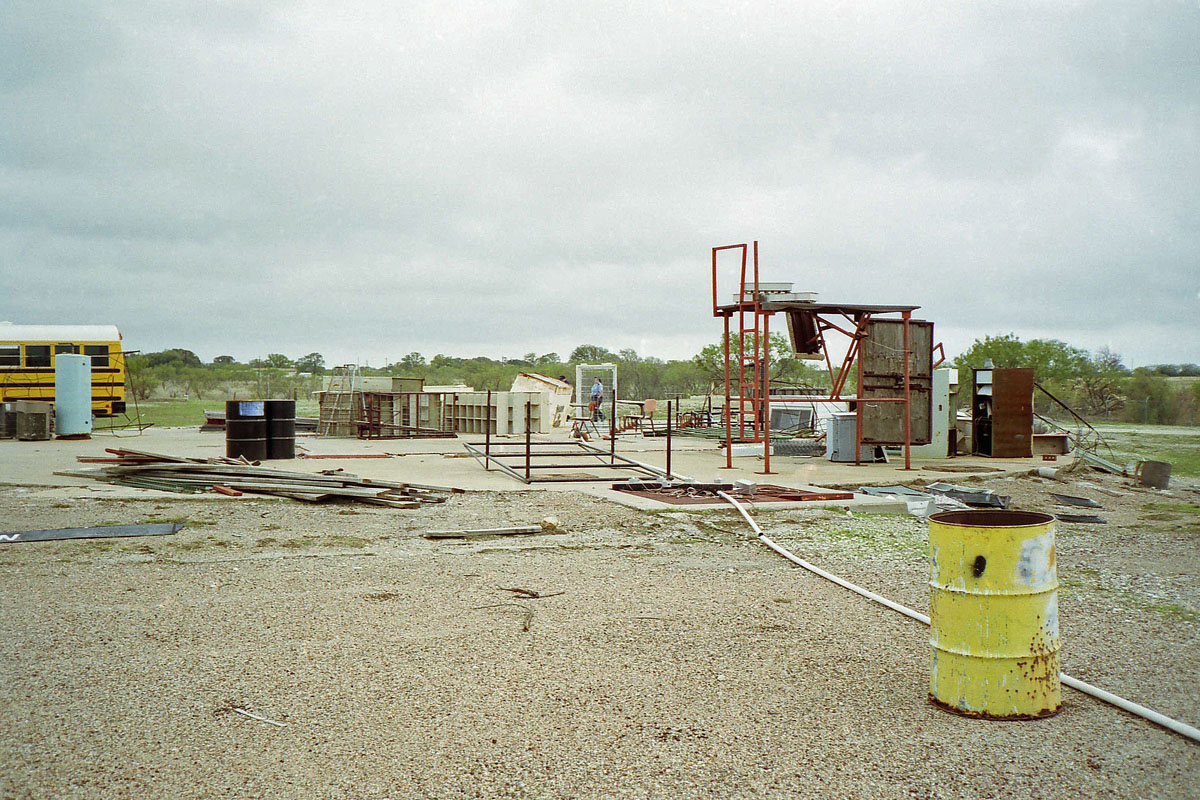

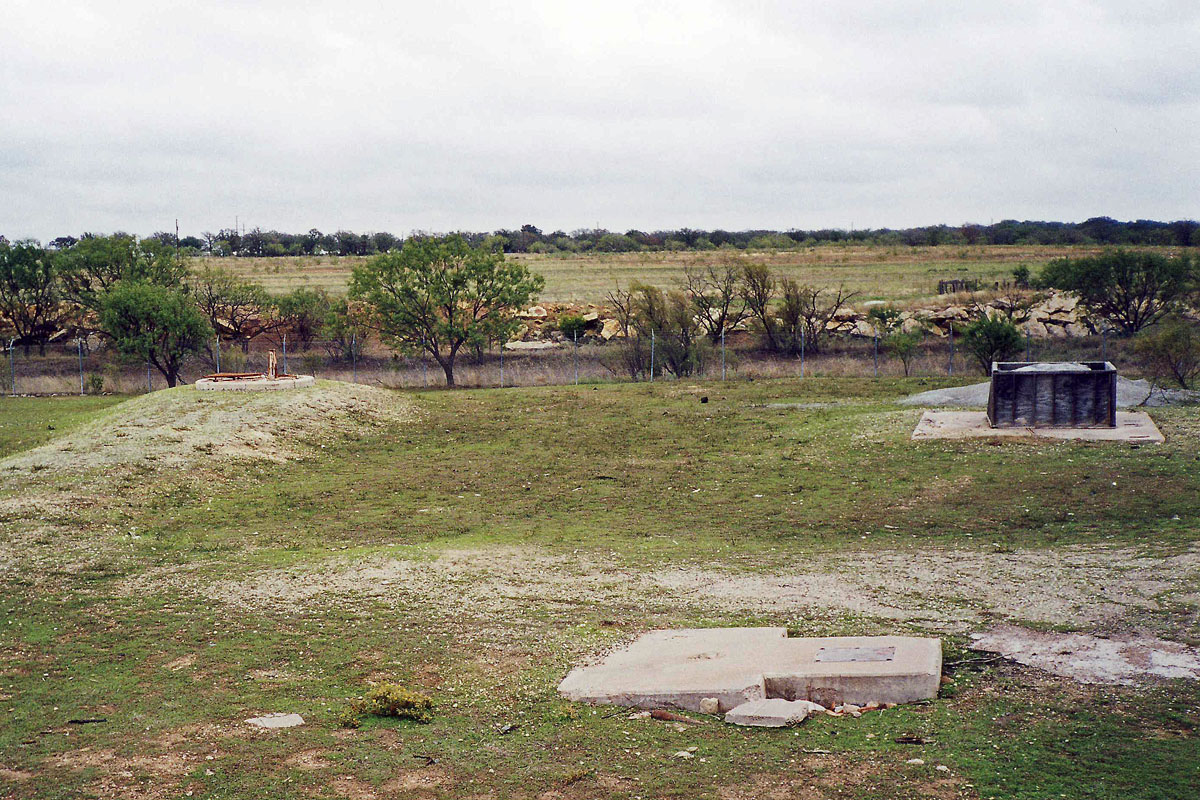

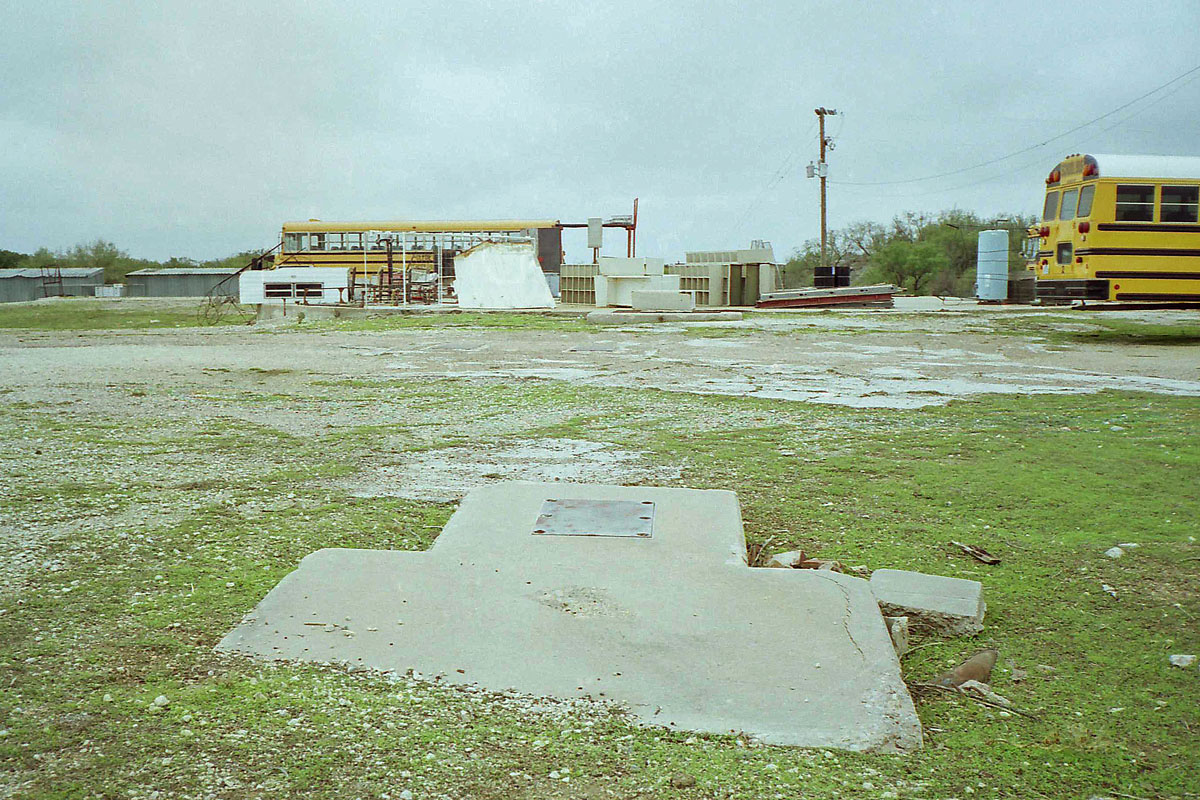

General view

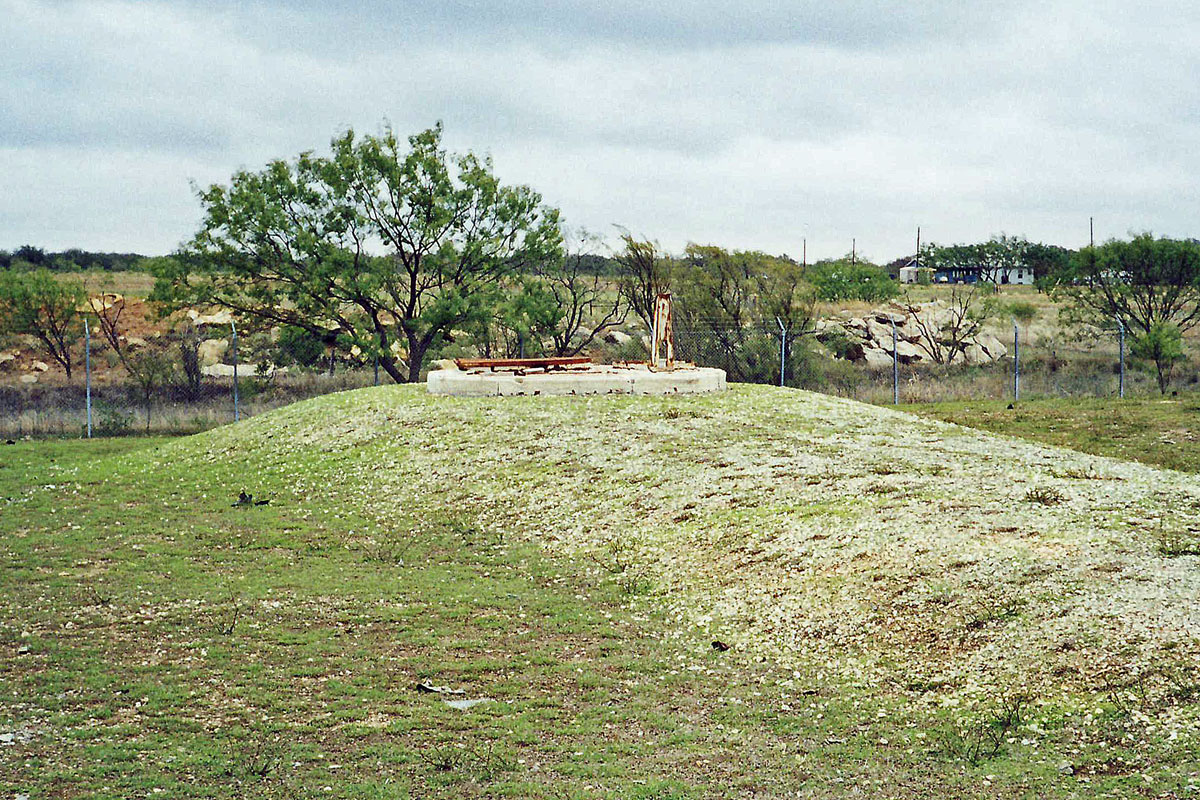

General view

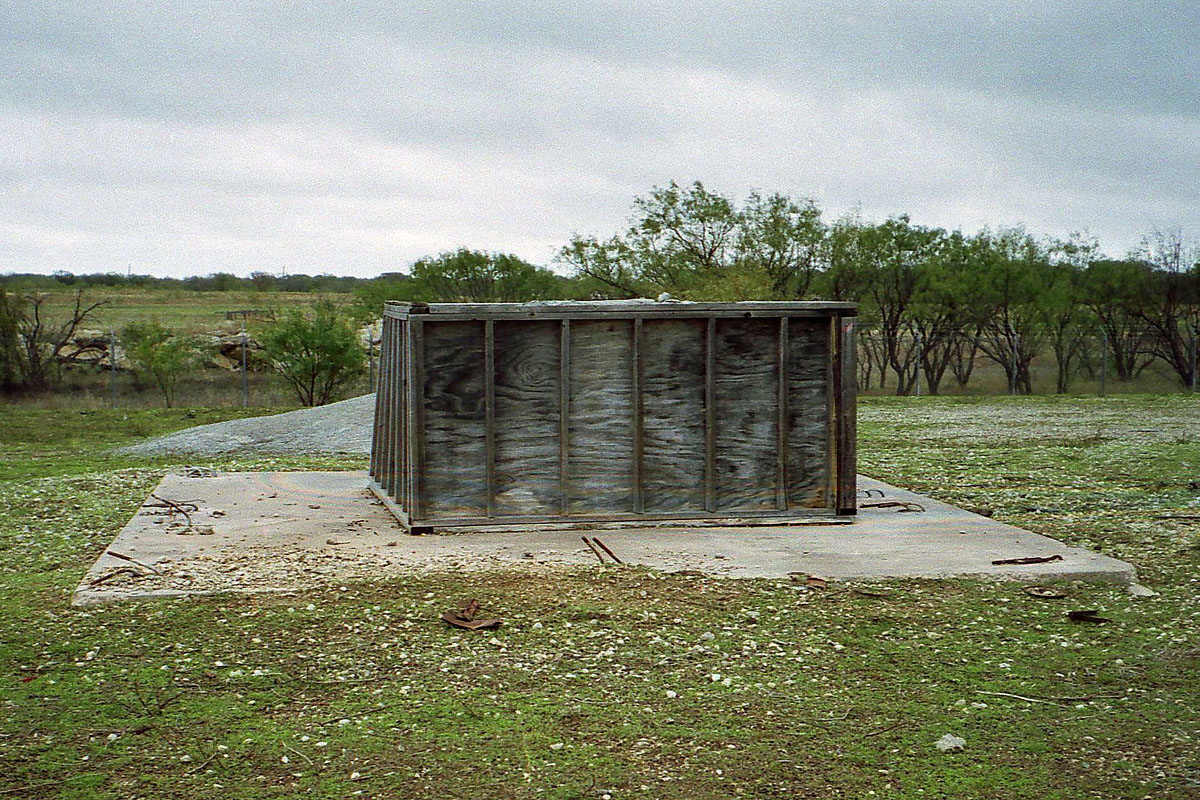

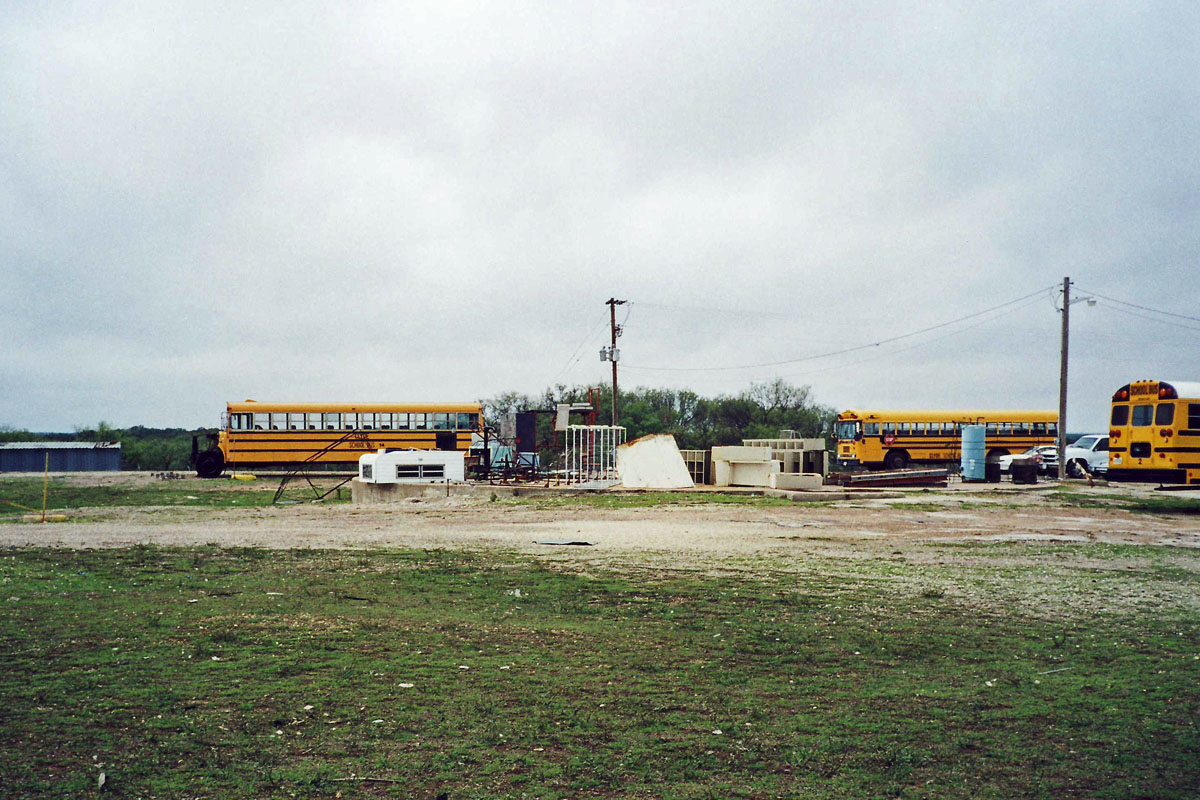

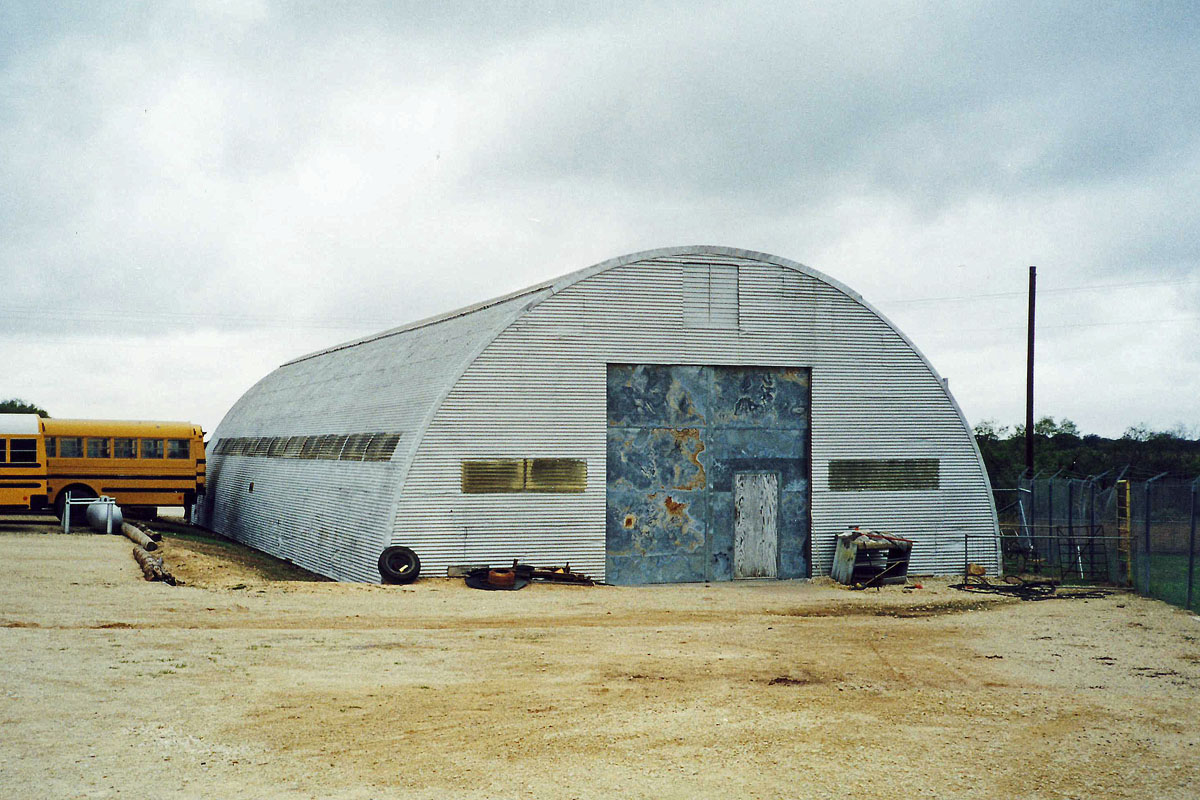

Quonset hut (warehouse)

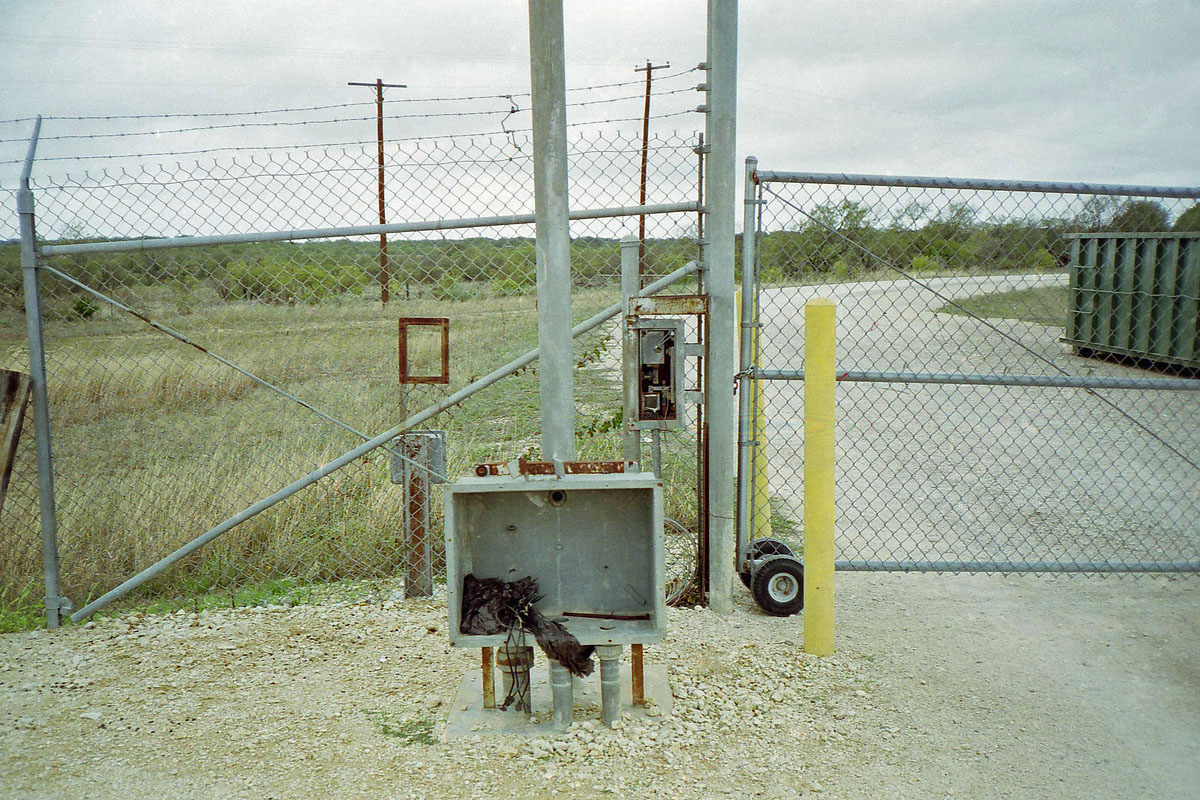

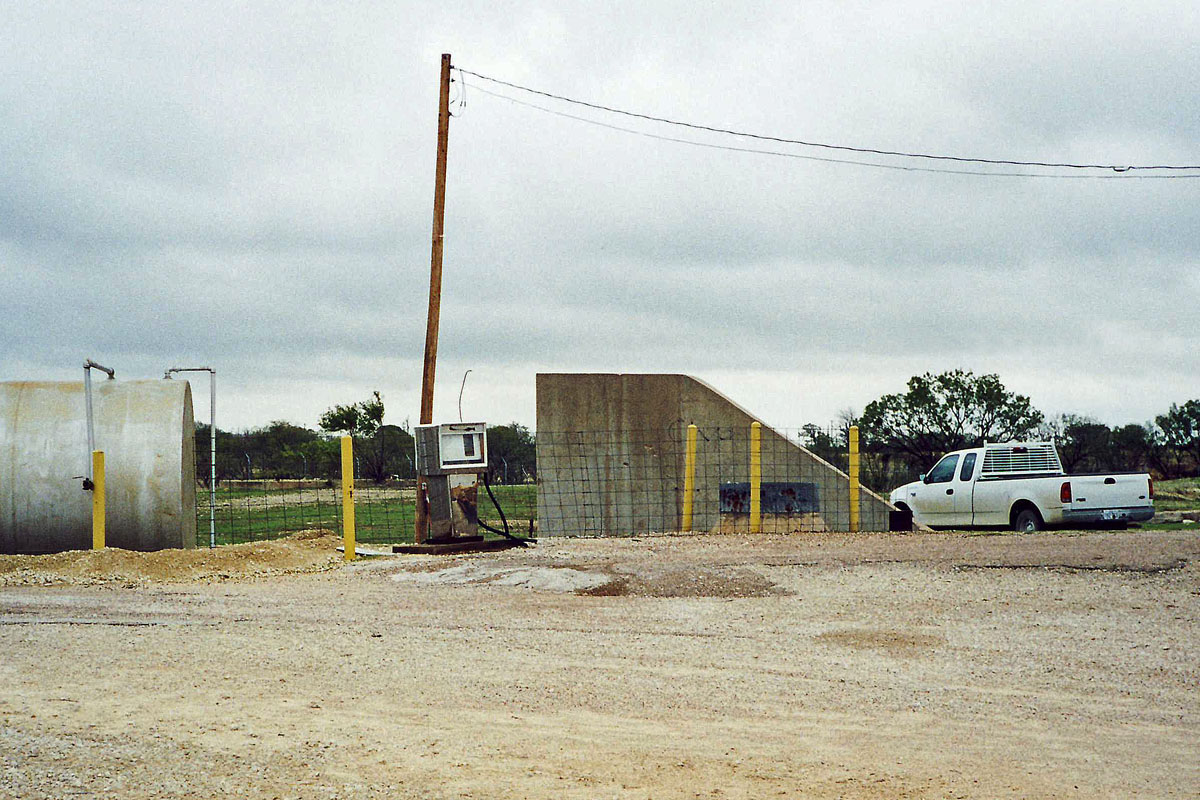

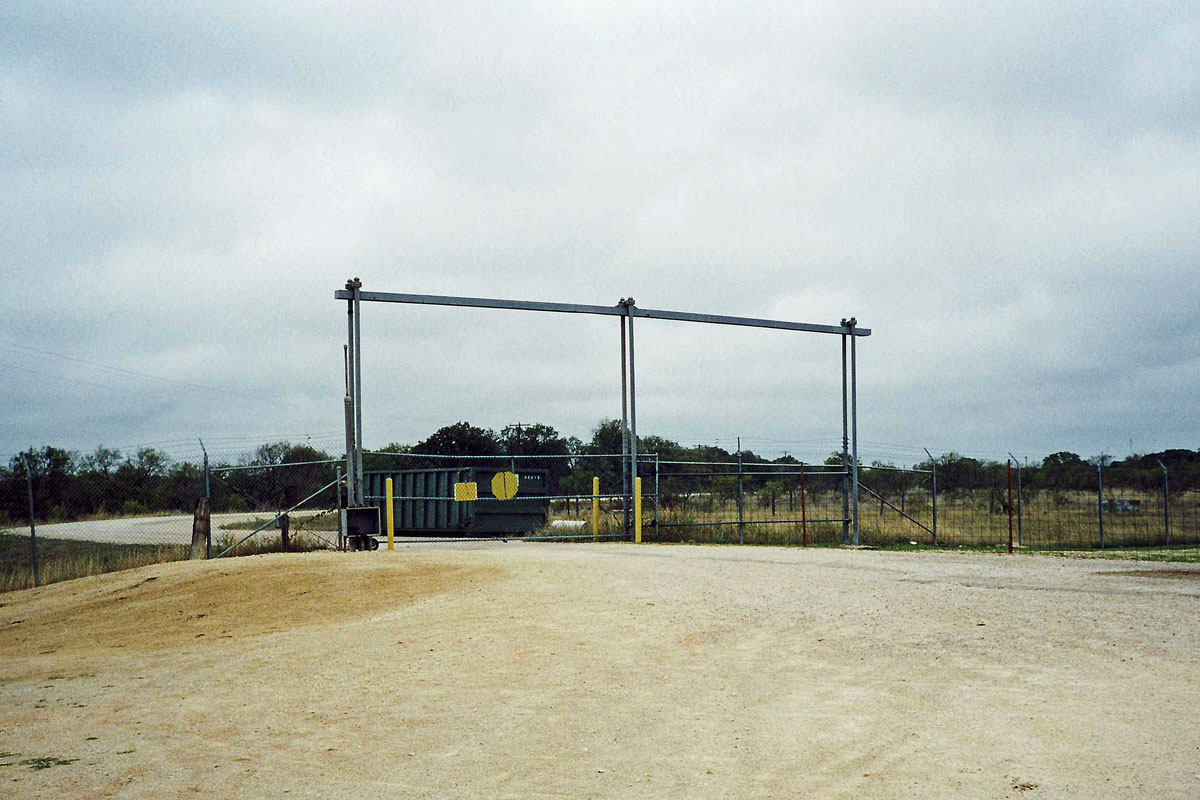

Security gate
Security gate locking mechanism
UHF antenna

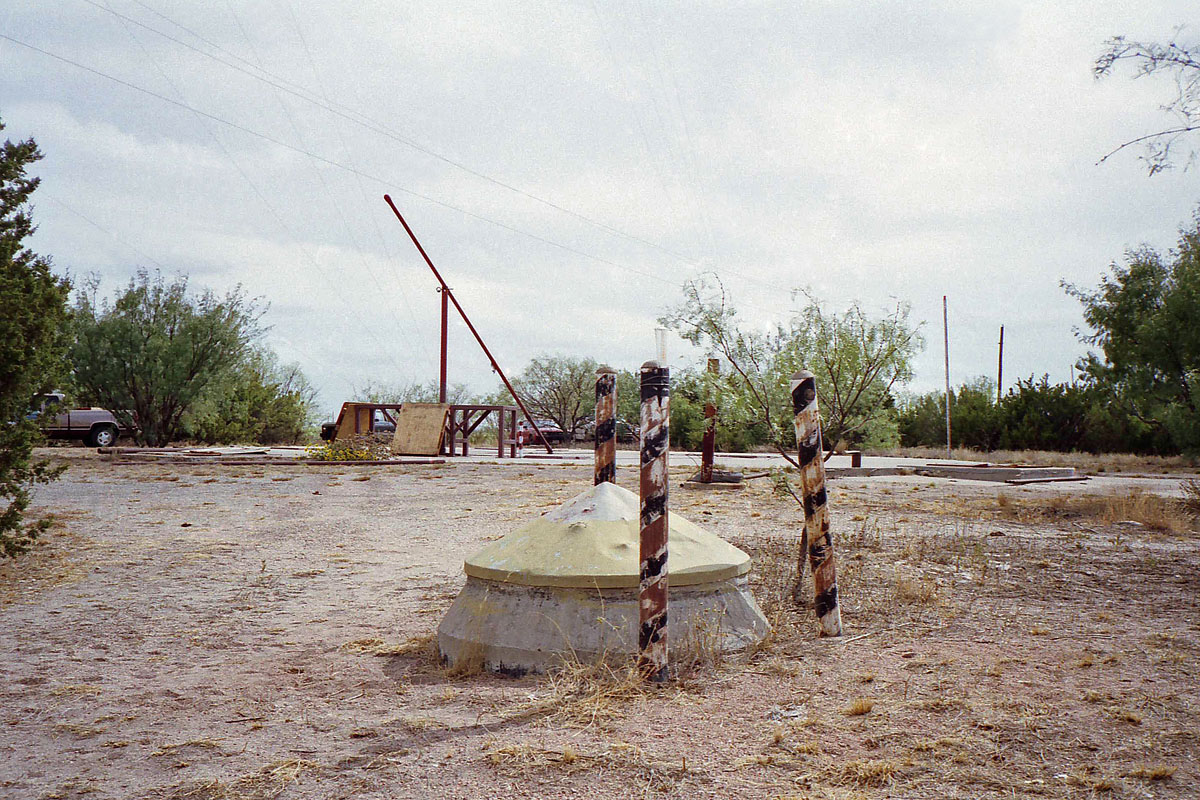

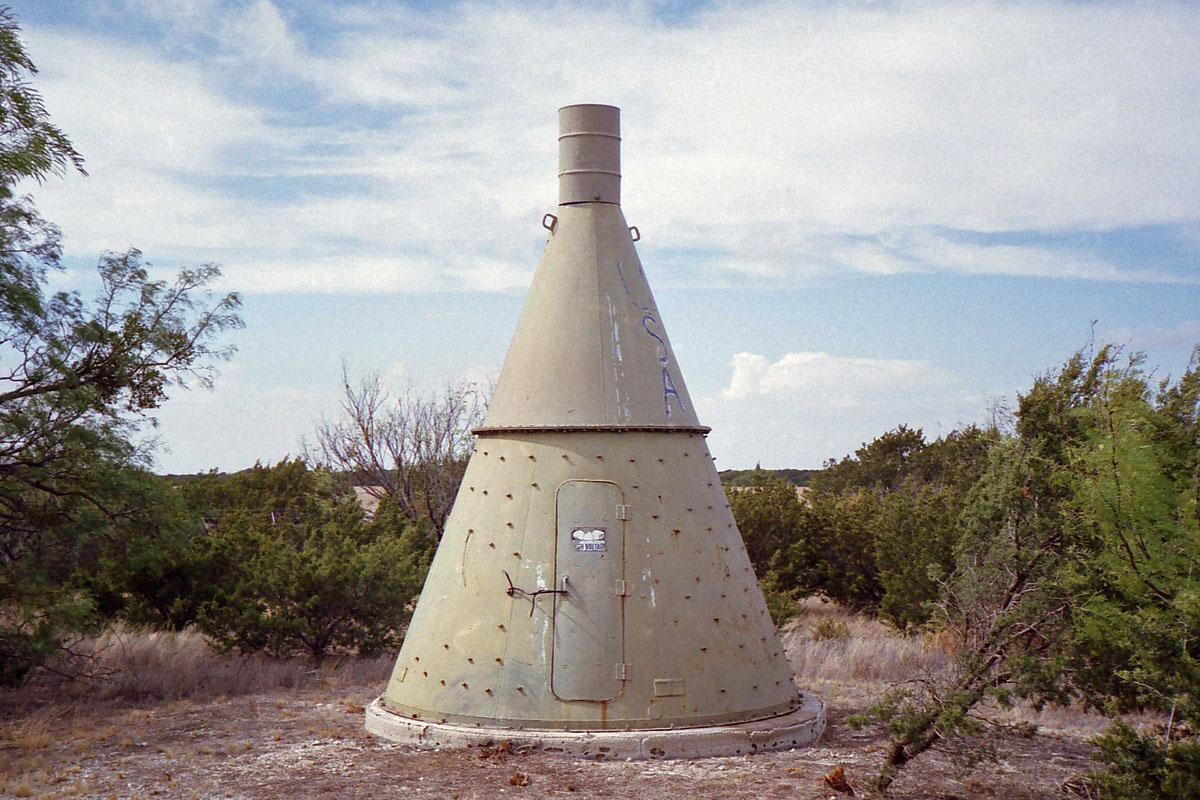

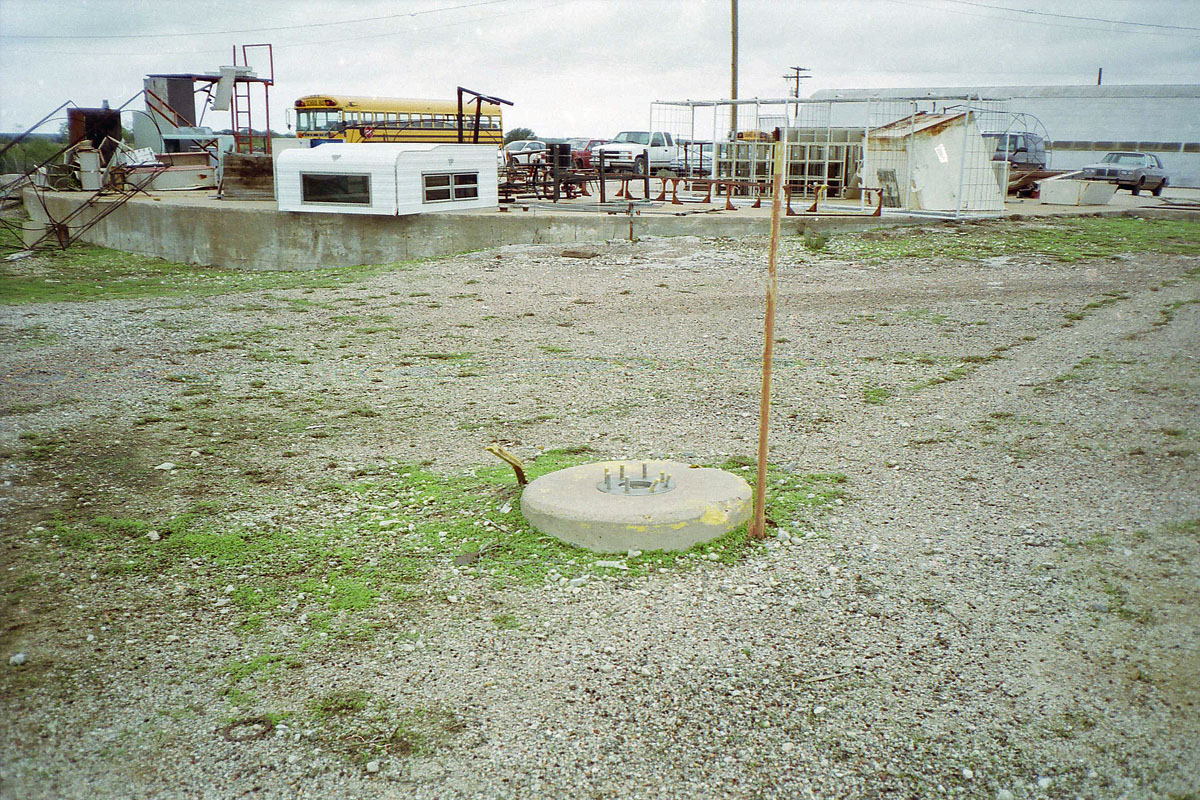

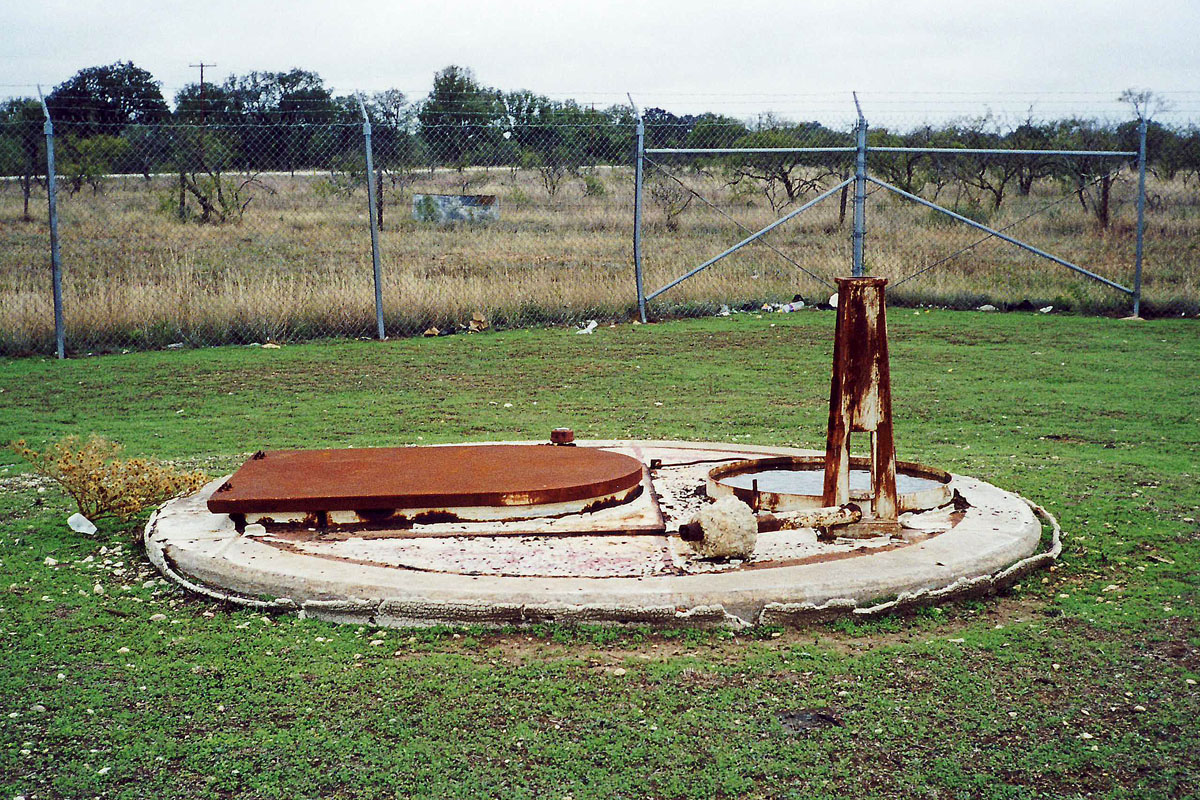

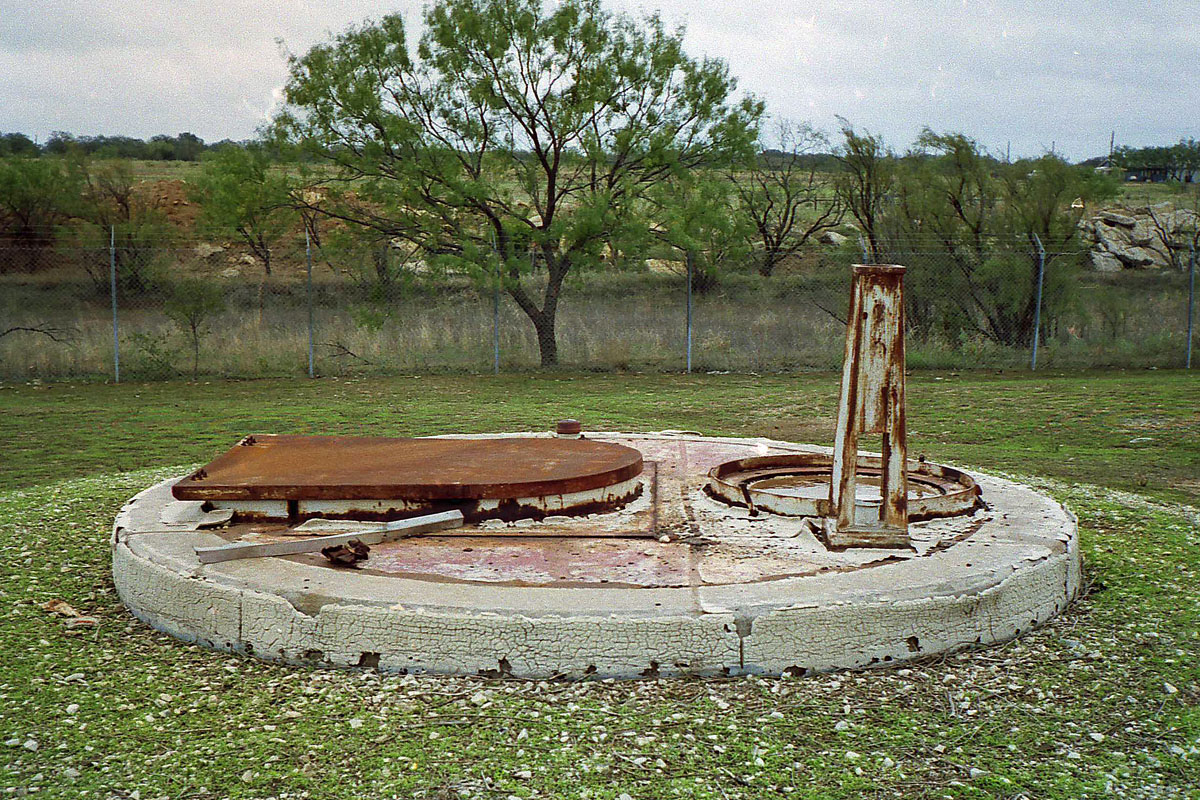

Pop-up antenna silo
Pop-up antenna silo
Pop-up antenna silo

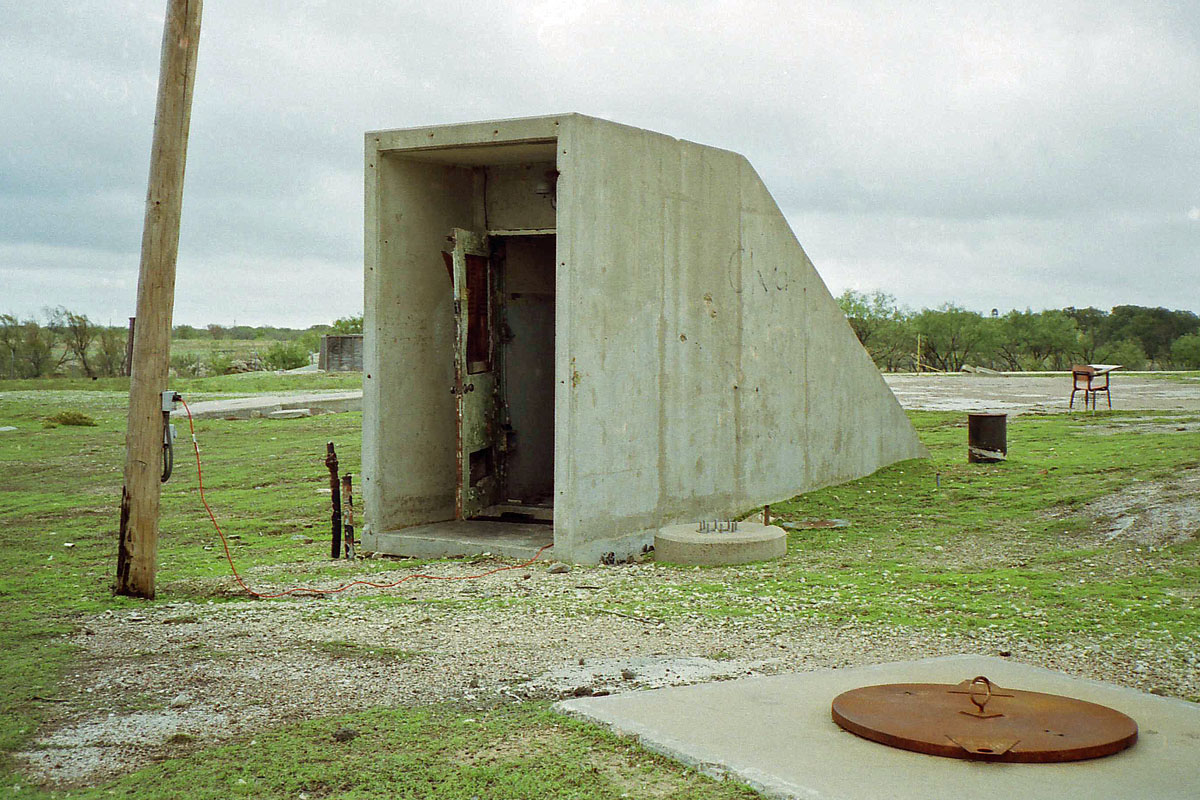

Personnel entryway
Personnel entryway

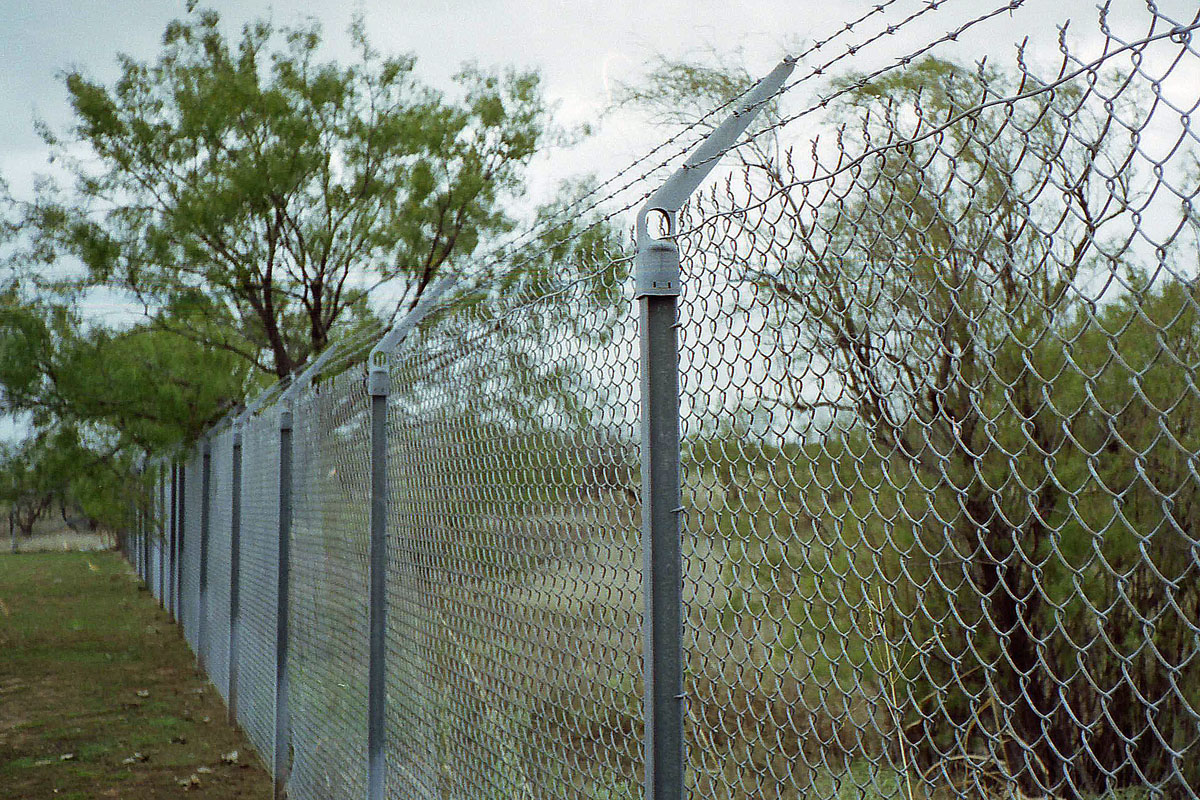

Perimeter fence

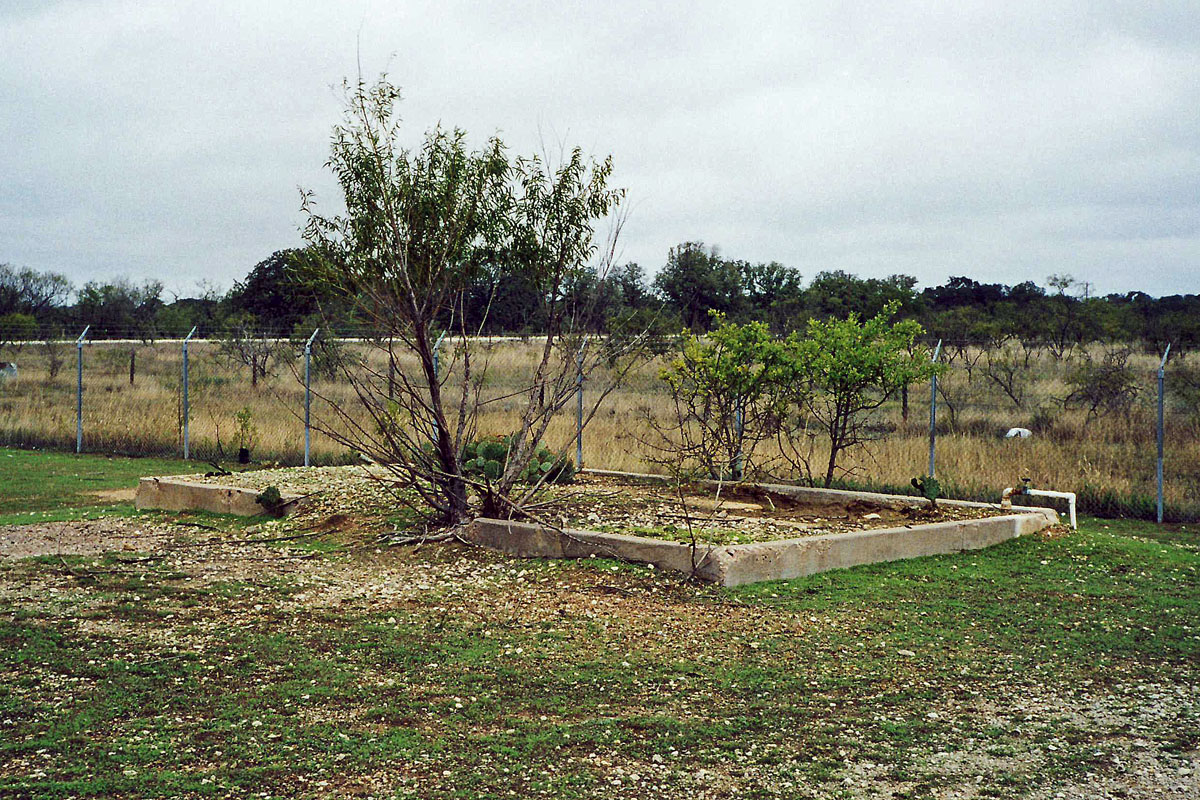

Water treatment structure
Cooling tower support

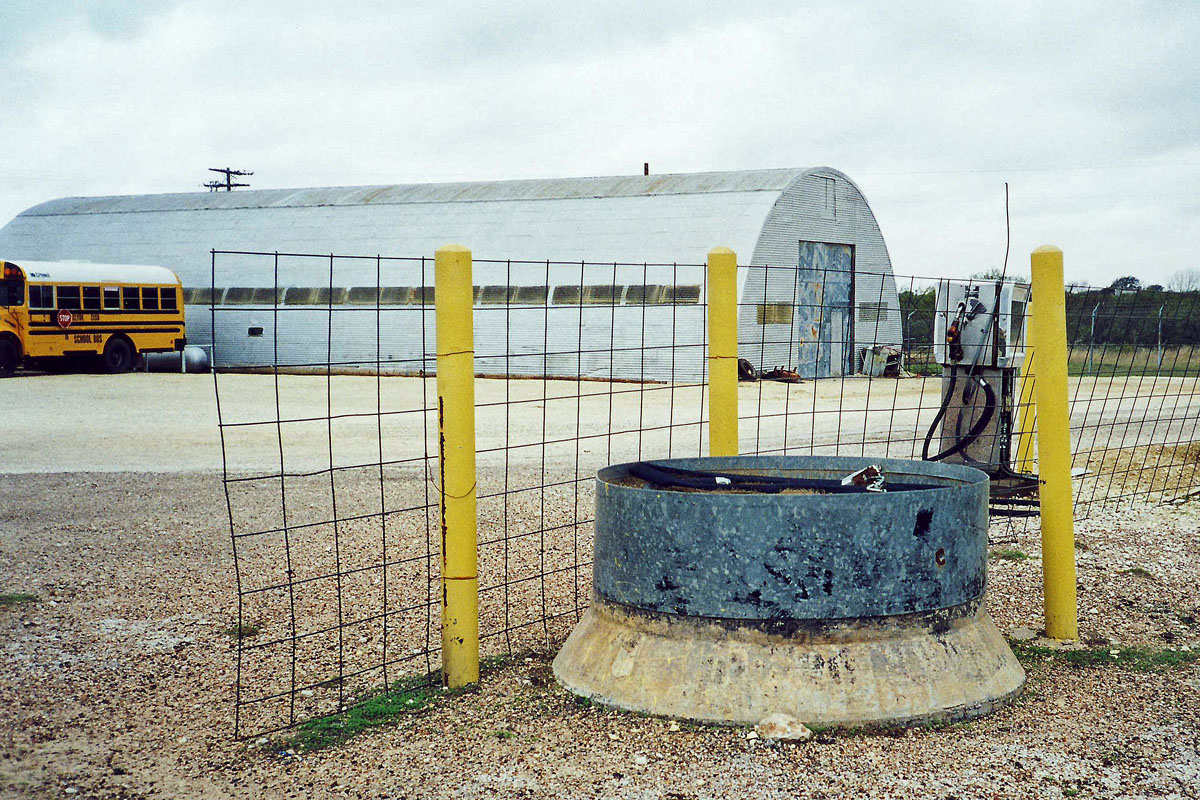

Fuel hydrant fittings

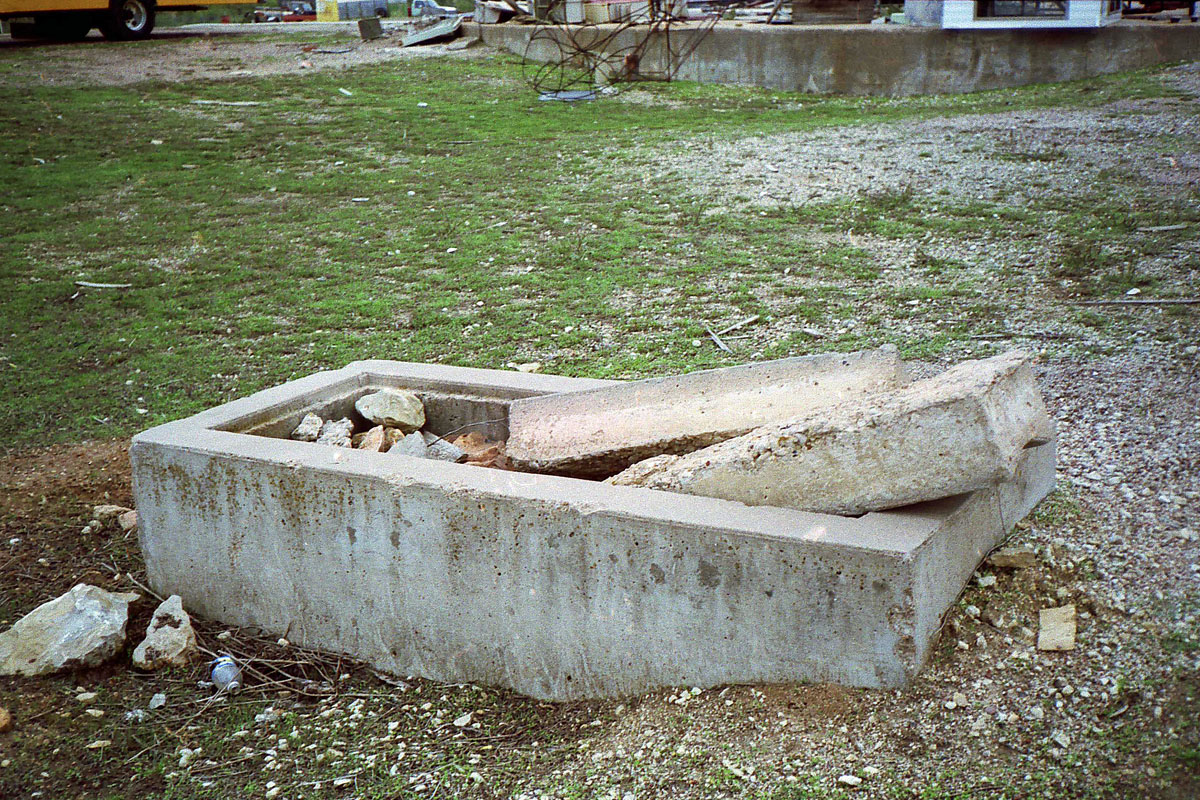

Escape hatch
Sight tube platform
Silo doors
Lighting pole mount

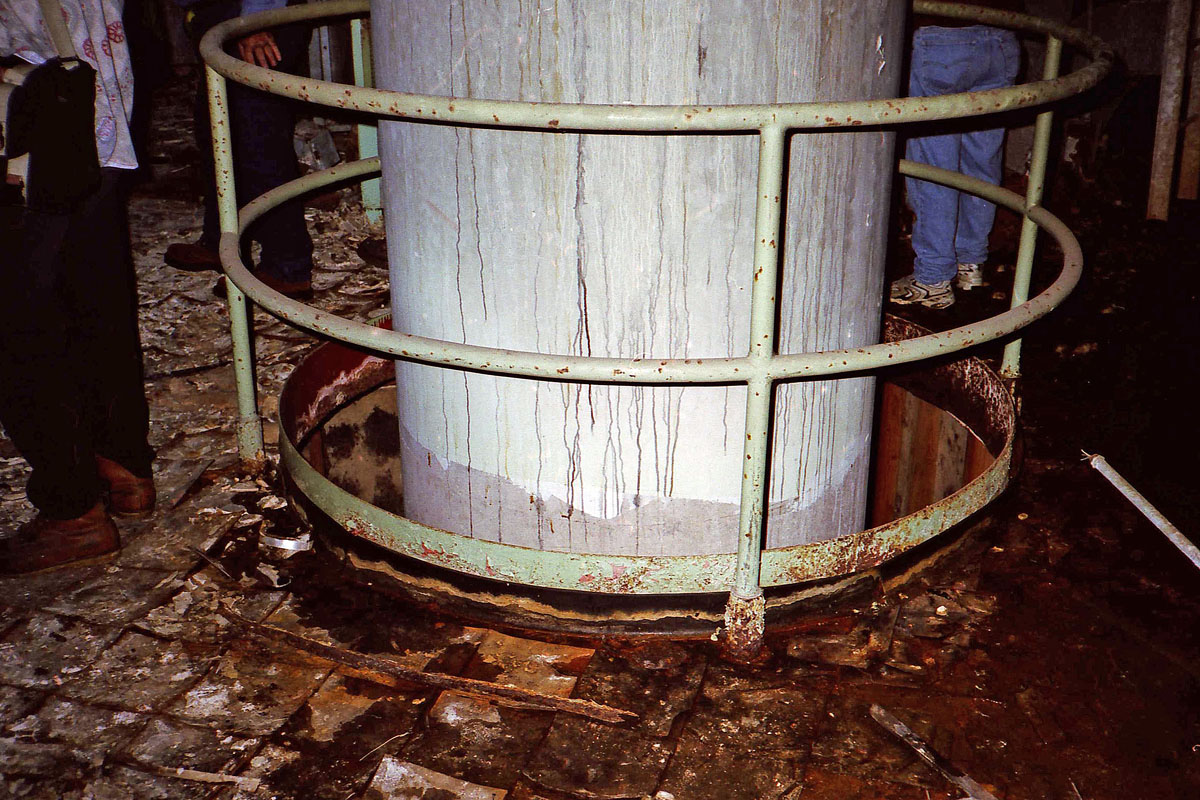

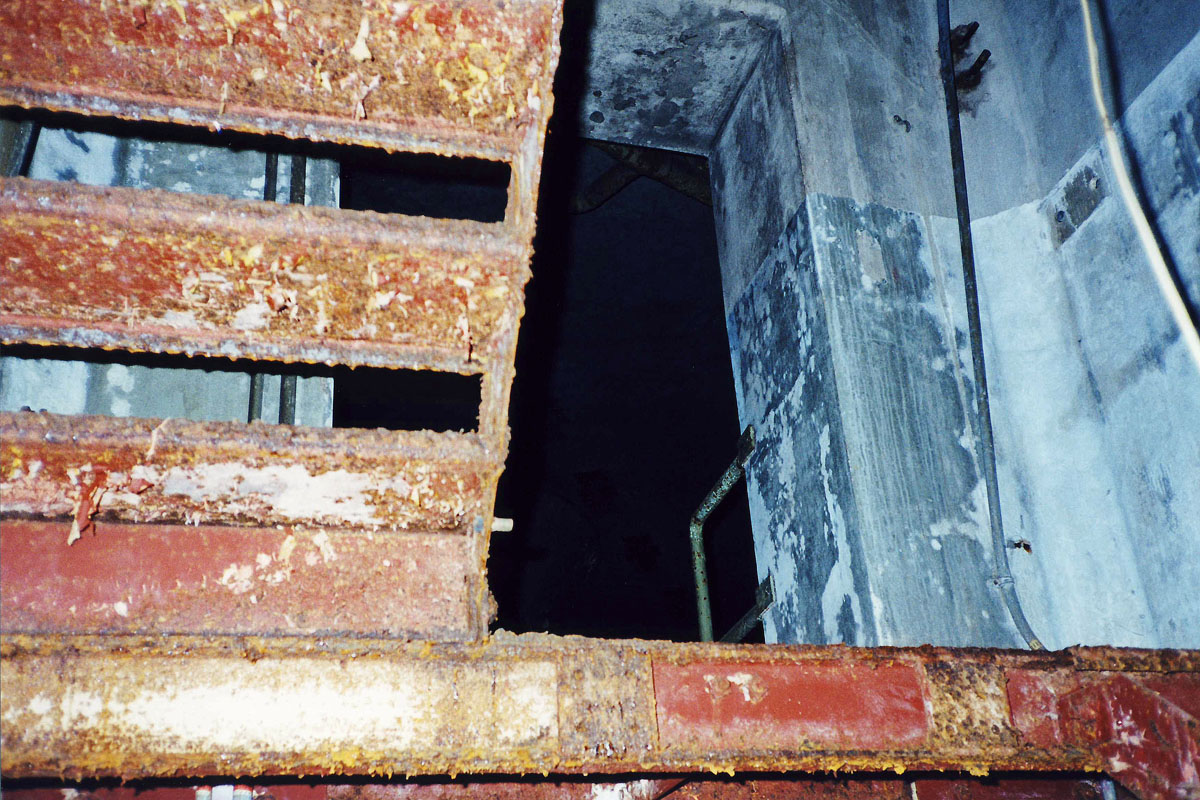

Launch control center stairway
Launch control center

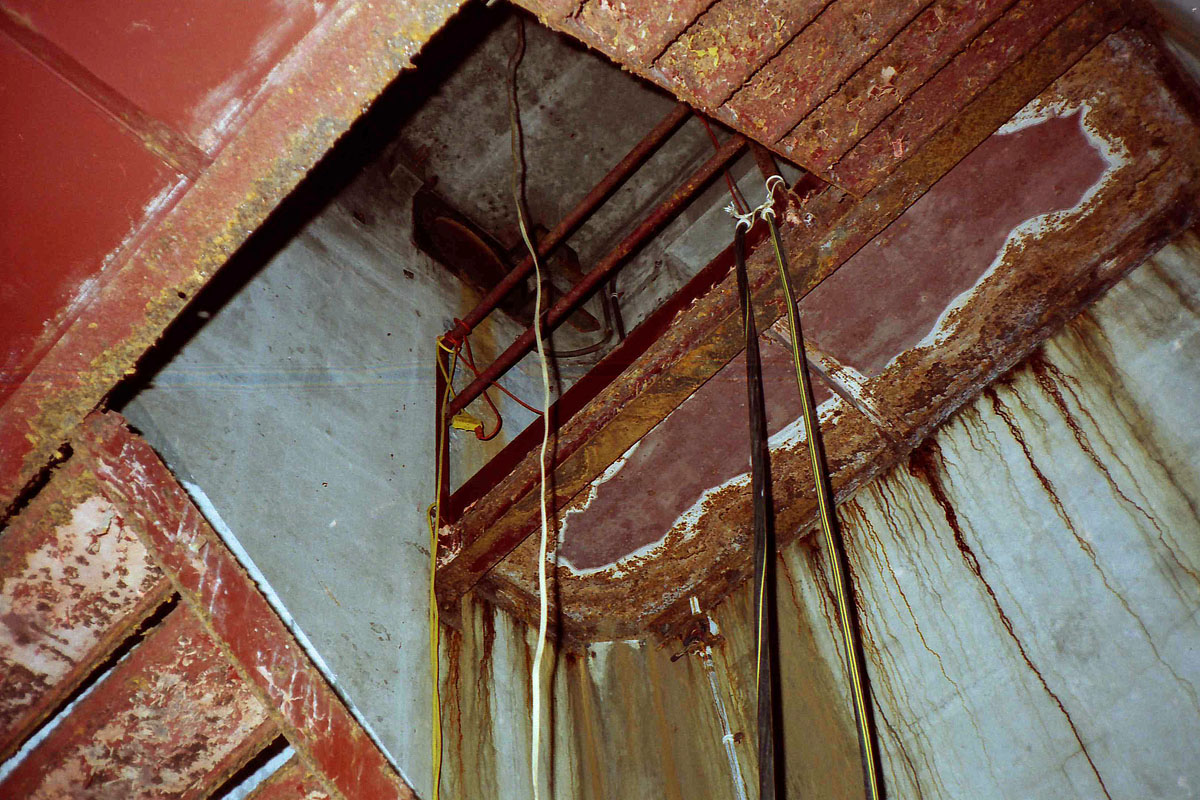

Escape hatch with ladder

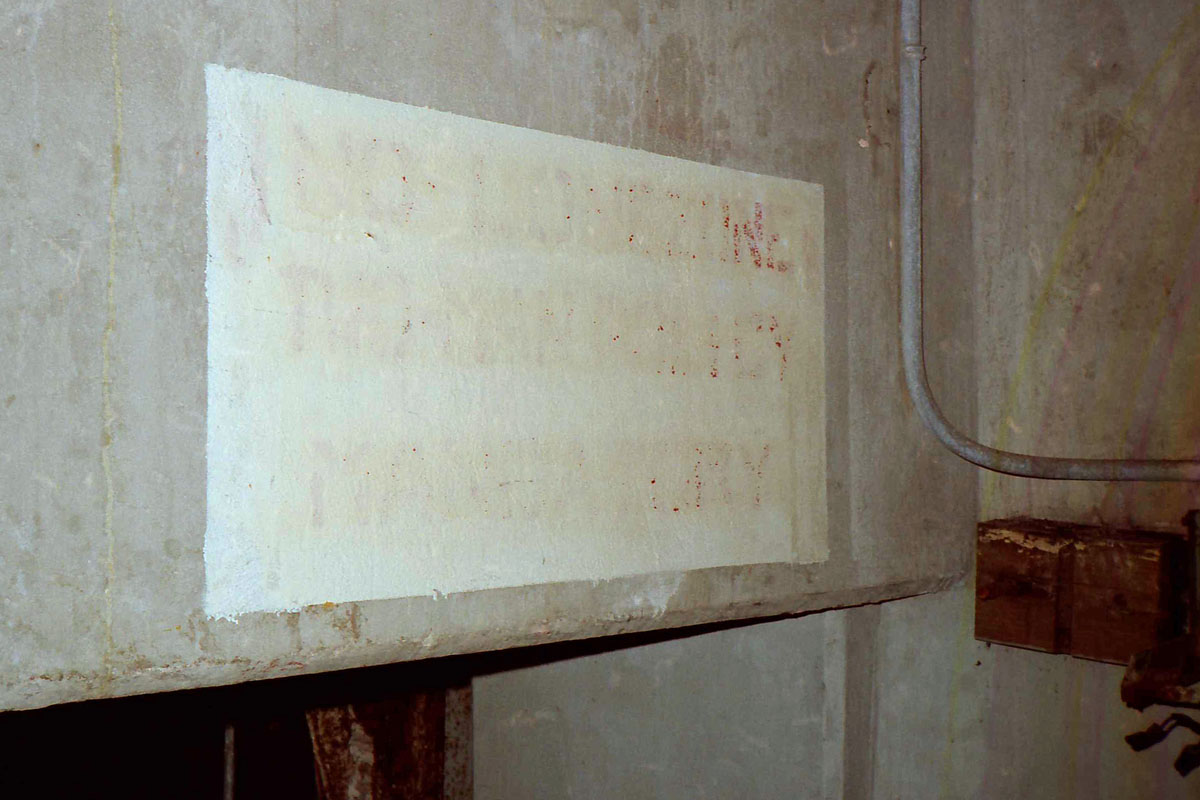

Historic signage
Launch control center stairway

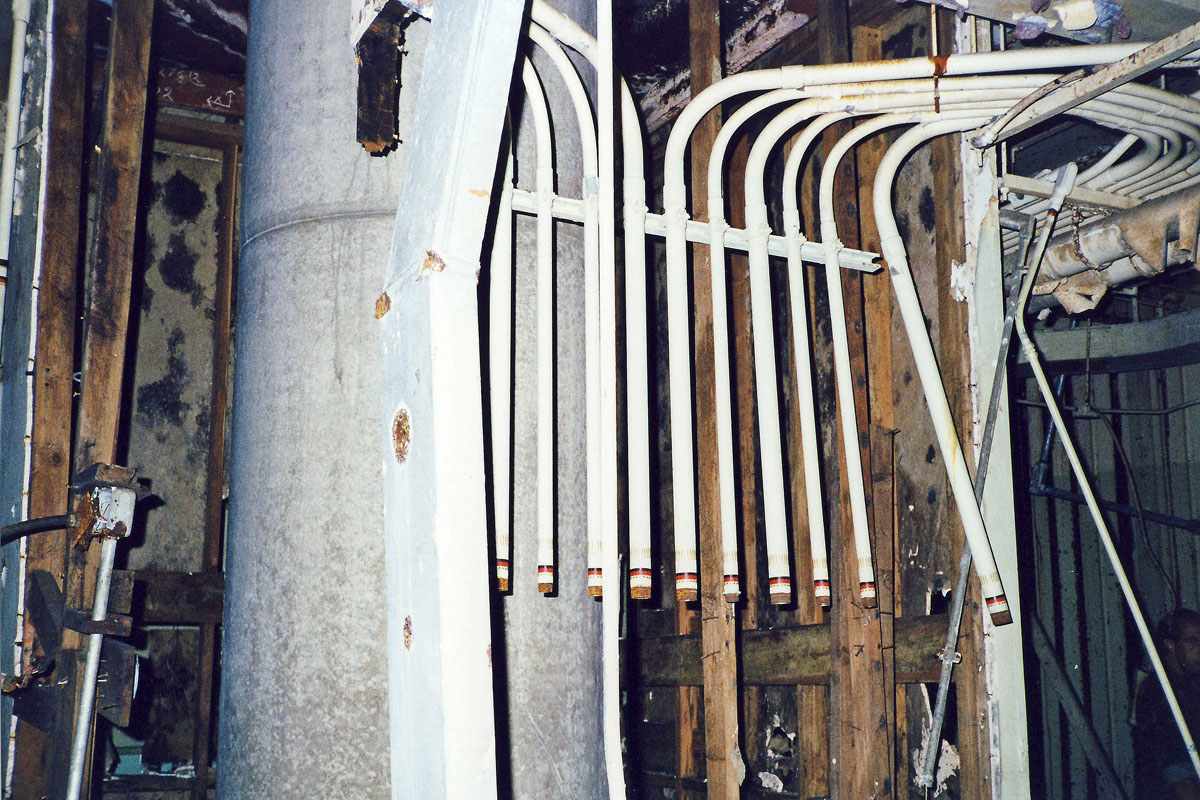

Launch control center conduit

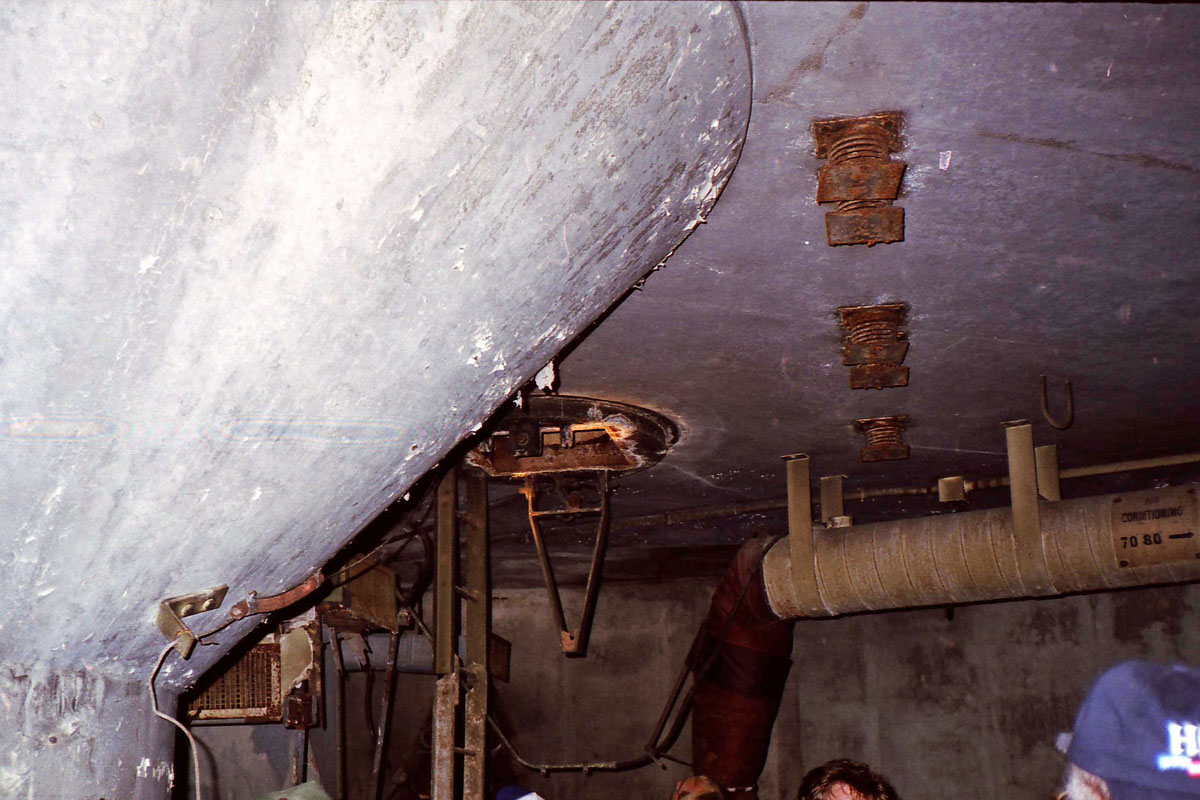

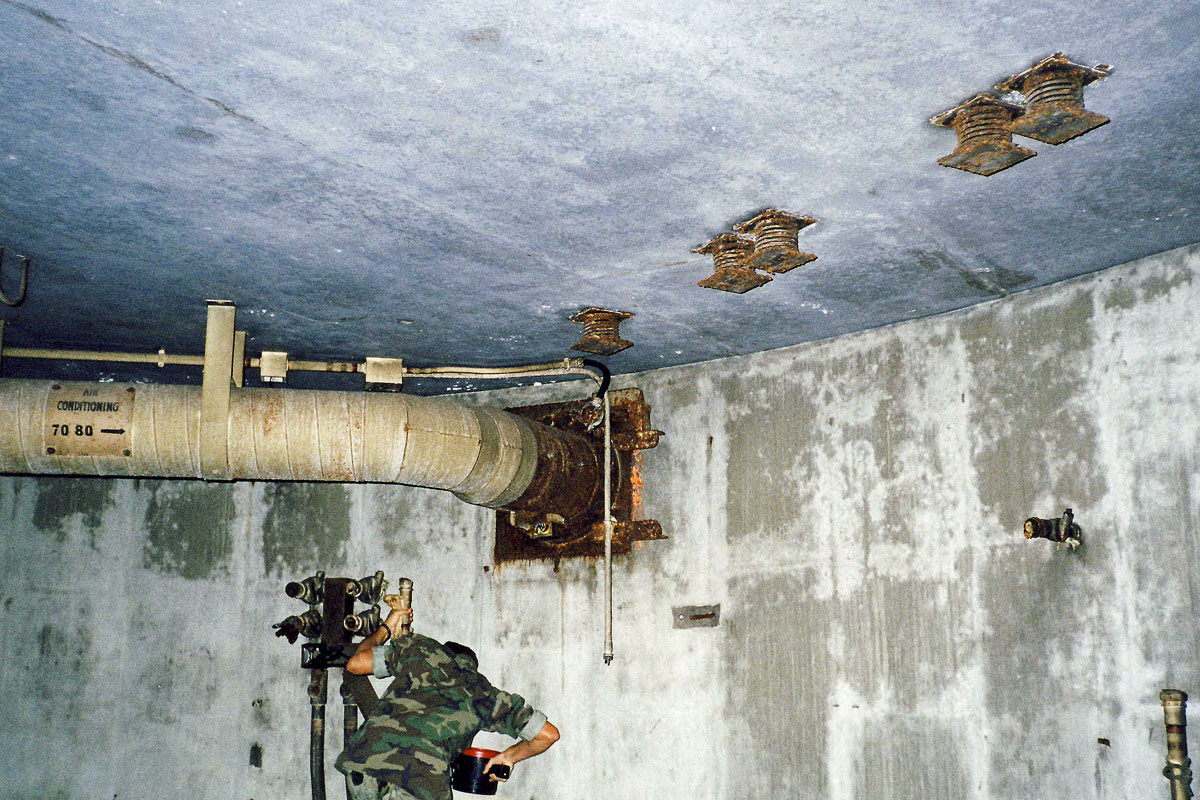

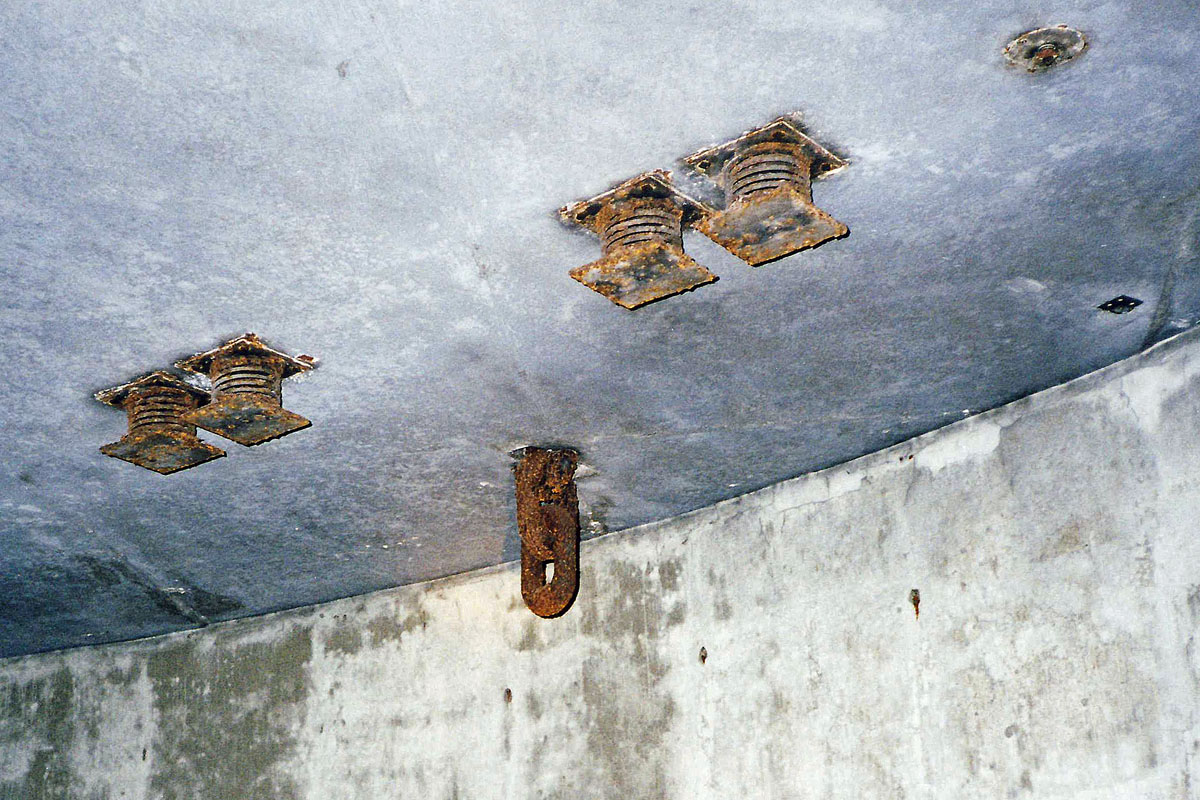

Launch control center shock mounts for light fixtures
Launch control center shock mounts for light fixtures
Launch control center support link Dyess Missile Site #3 Water System Annex TX, PIN 7816. The CISD also owns the water system that supported site #03, which consists of two wells on separate plots of land a mile east of the missile site. Each well was surrounded by a standard barbed wire fence, although on one well the fence has been removed. One of the plots originally had a Butler building, but it was destroyed by a tornado post-Air Force and replaced with this building.

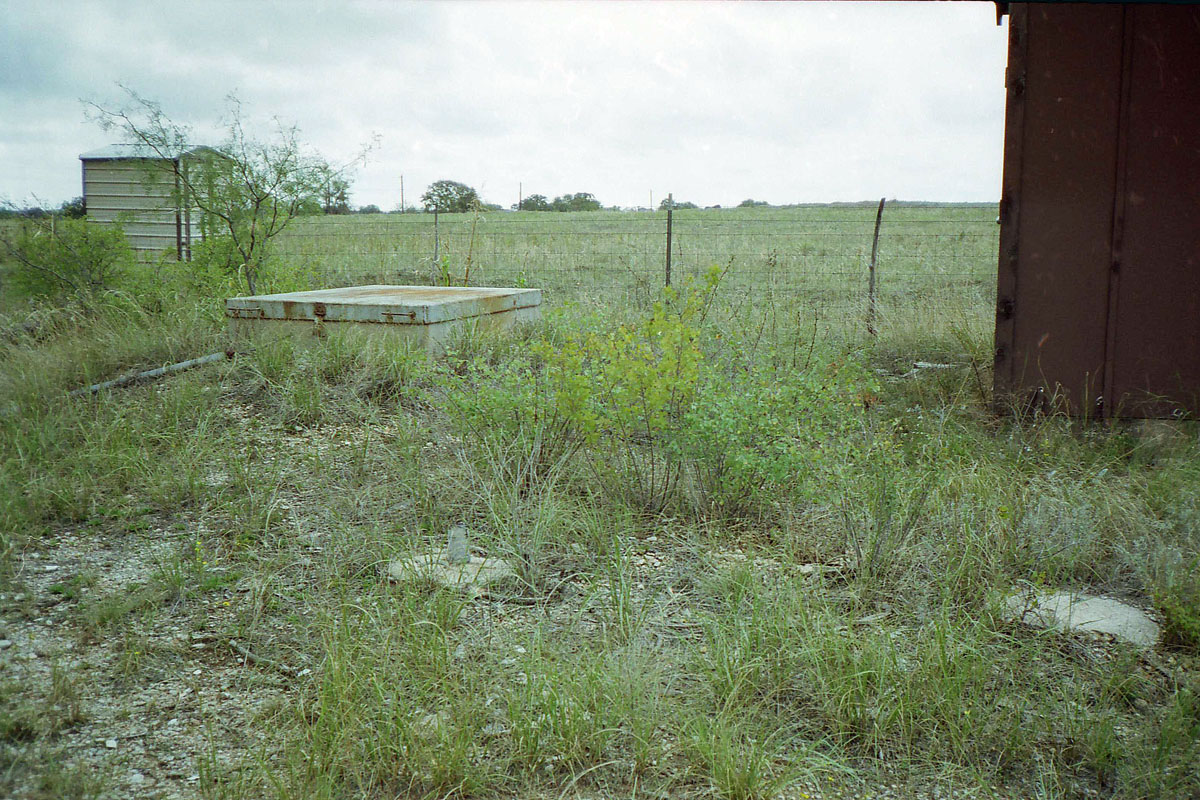

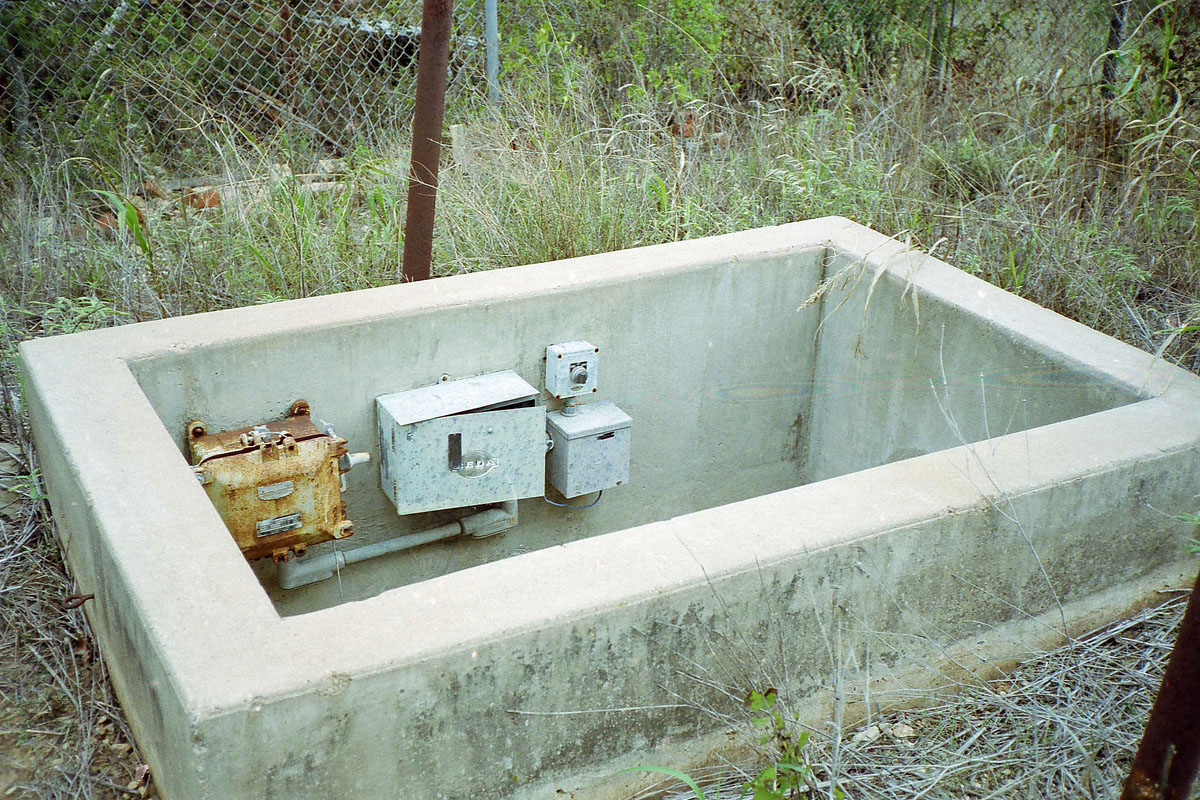

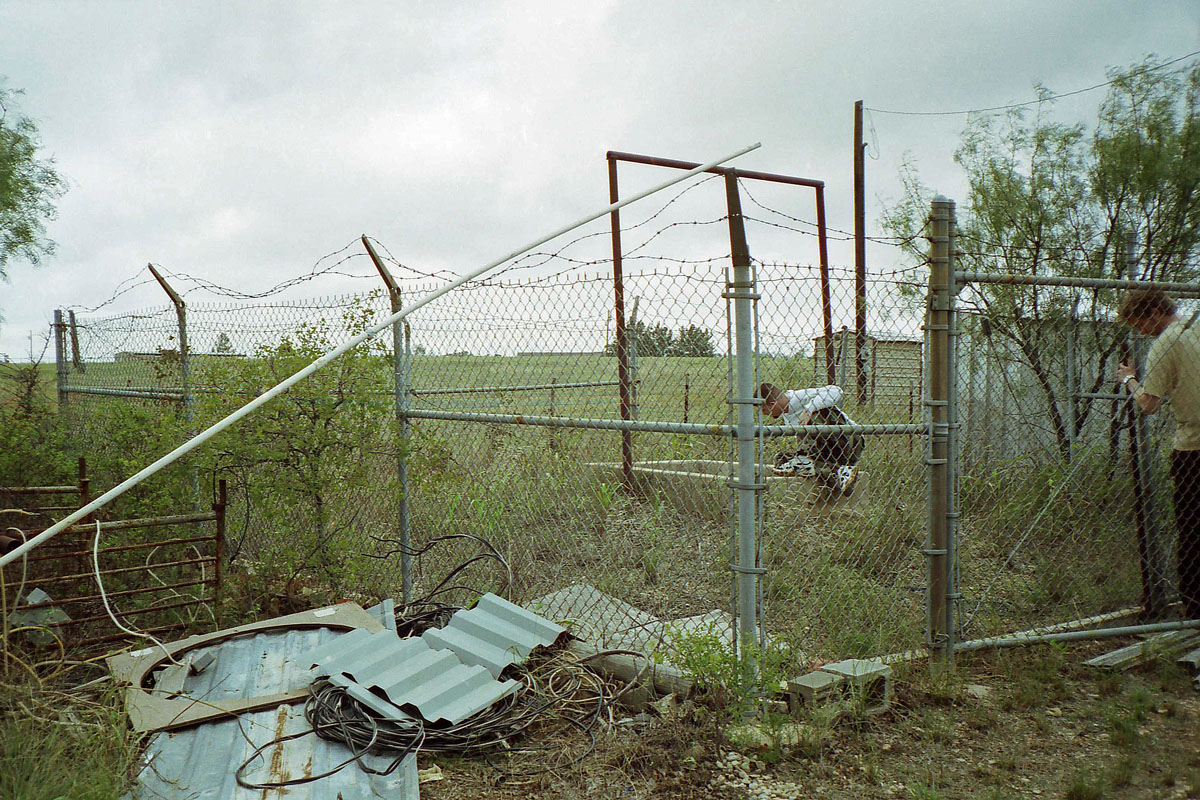

Water well

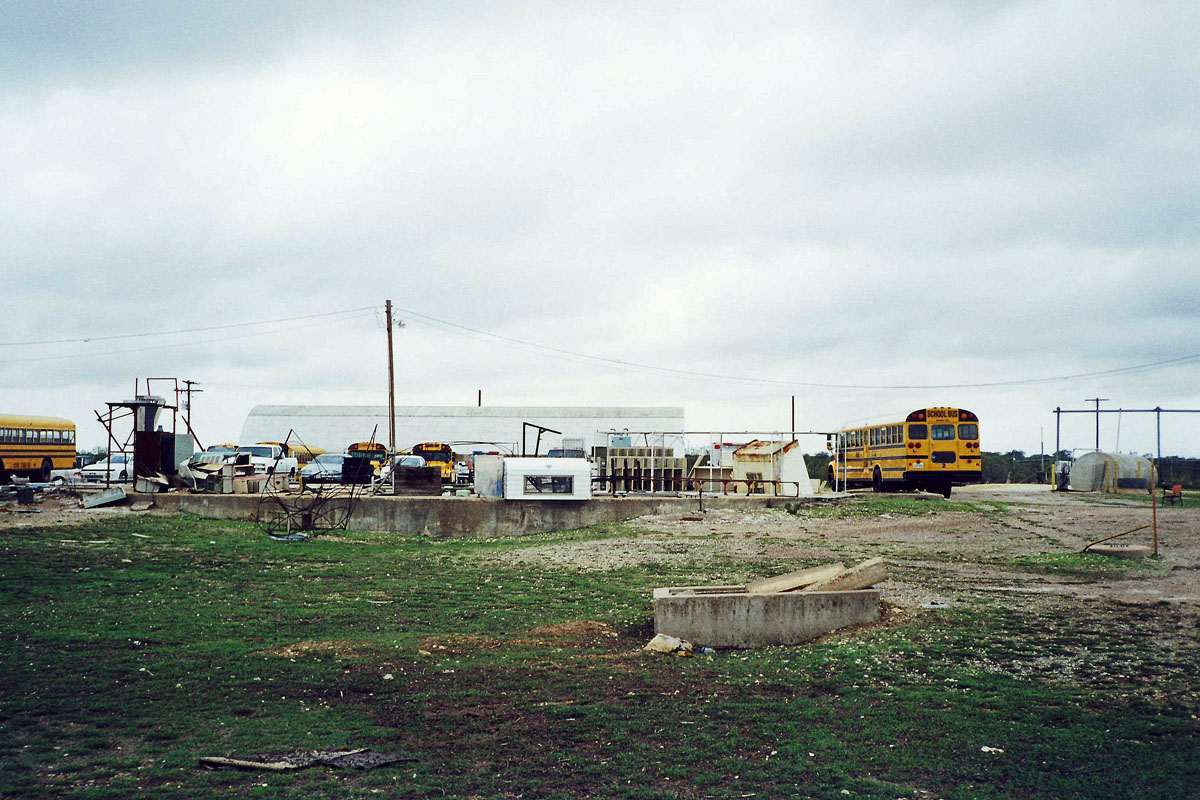

General view
General view
Non-historic building Dyess Missile Site #5 (578-5) TX, PIN 7270, ILC FNXU. A nice surprise from the Corinth West visit on 18 March 2000 was an add-on visit to Dyess Missile Site #5. This was a "While you're here, I've got to run some parts down to Oplin, so you can see that one too." kind of deal. The owner of site #5 lives in the control center, and L1 is finished and decorated very nicely. It would pass as an artsy custom apartment to those who don't recognize the center column! He has re-hung the floors from the ceiling mounts. If you walk quickly toward the wall and stop suddenly, you can see the floor swaying slightly in the rattle space. The original security gate is still in place at this site, and the silo structure is mostly intact. We looked around on level 2 but I didn't venture up or down on those rusty stairs. One of two Quonset huts remain on this site. The emergency escape hatch is in good shape, near the entryway. I noticed survey markers set in the concrete next to the silo doors. An interesting feature is the UHF antenna, which still has the emitter in place.

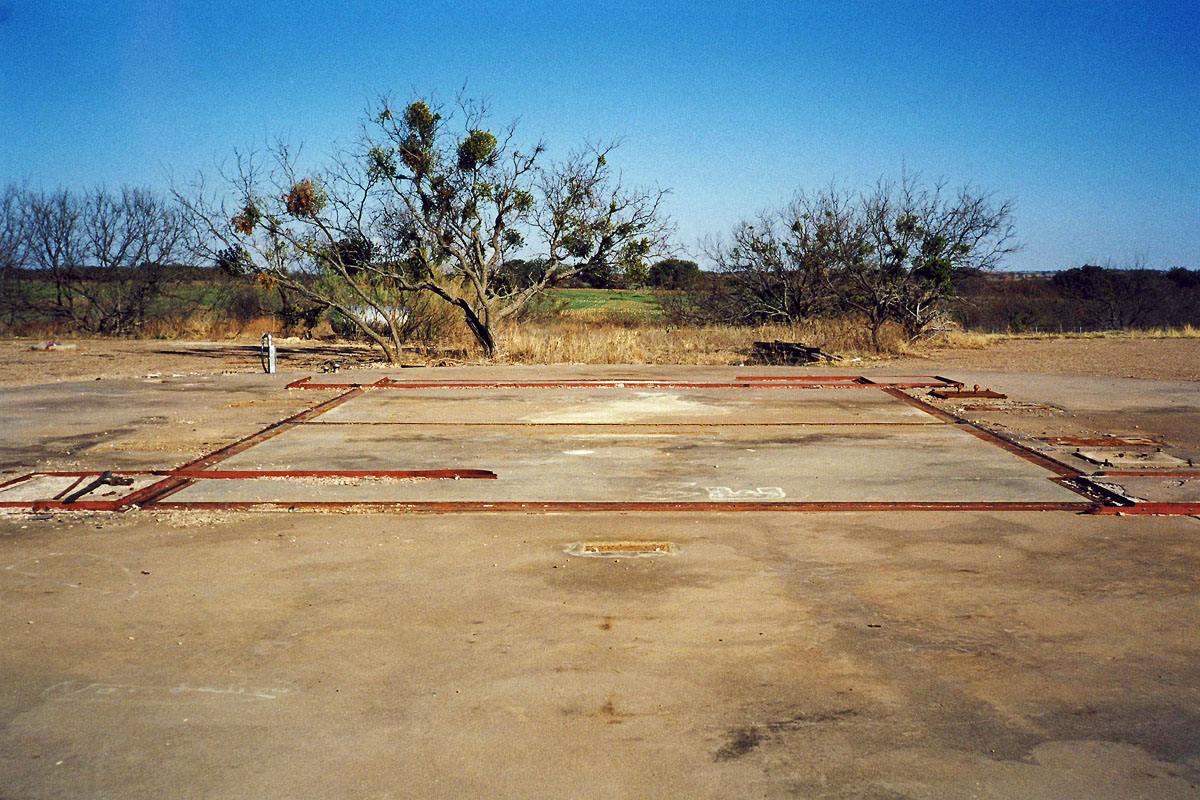

Silo doors

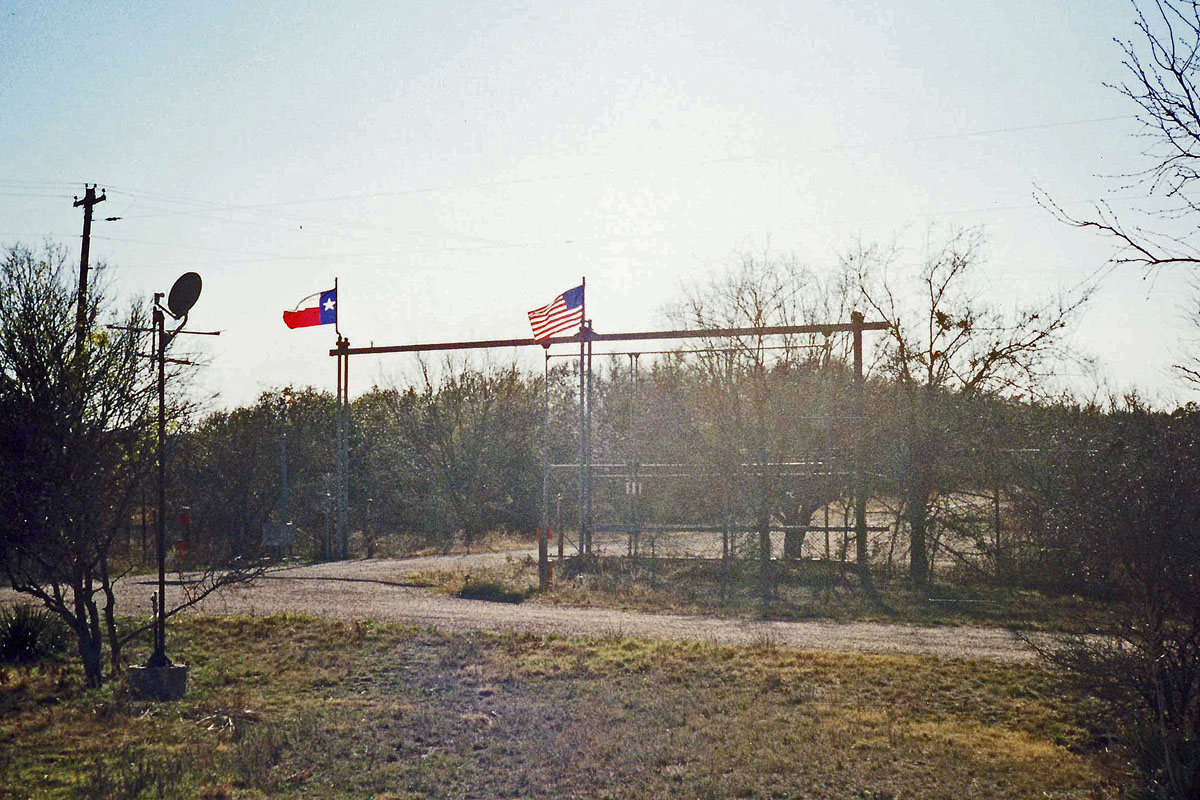

Security gate
General view showing personnel entryway

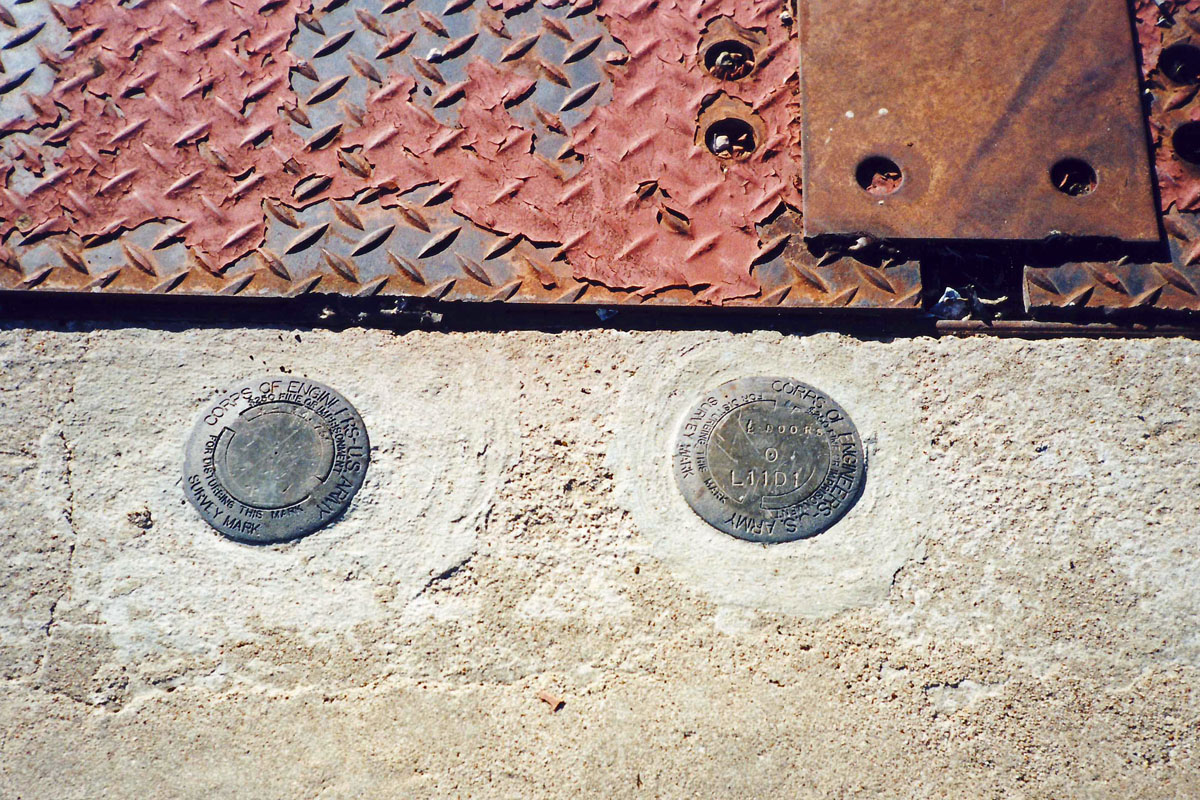

Survey markers

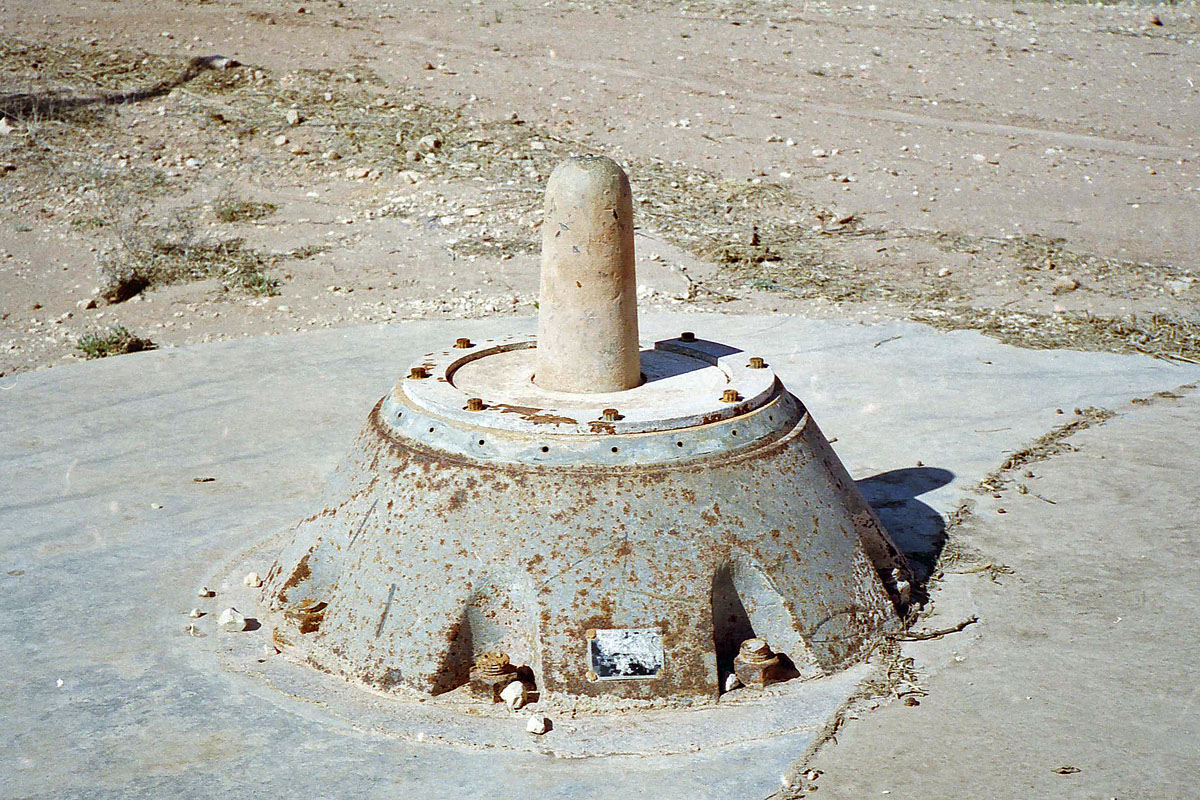

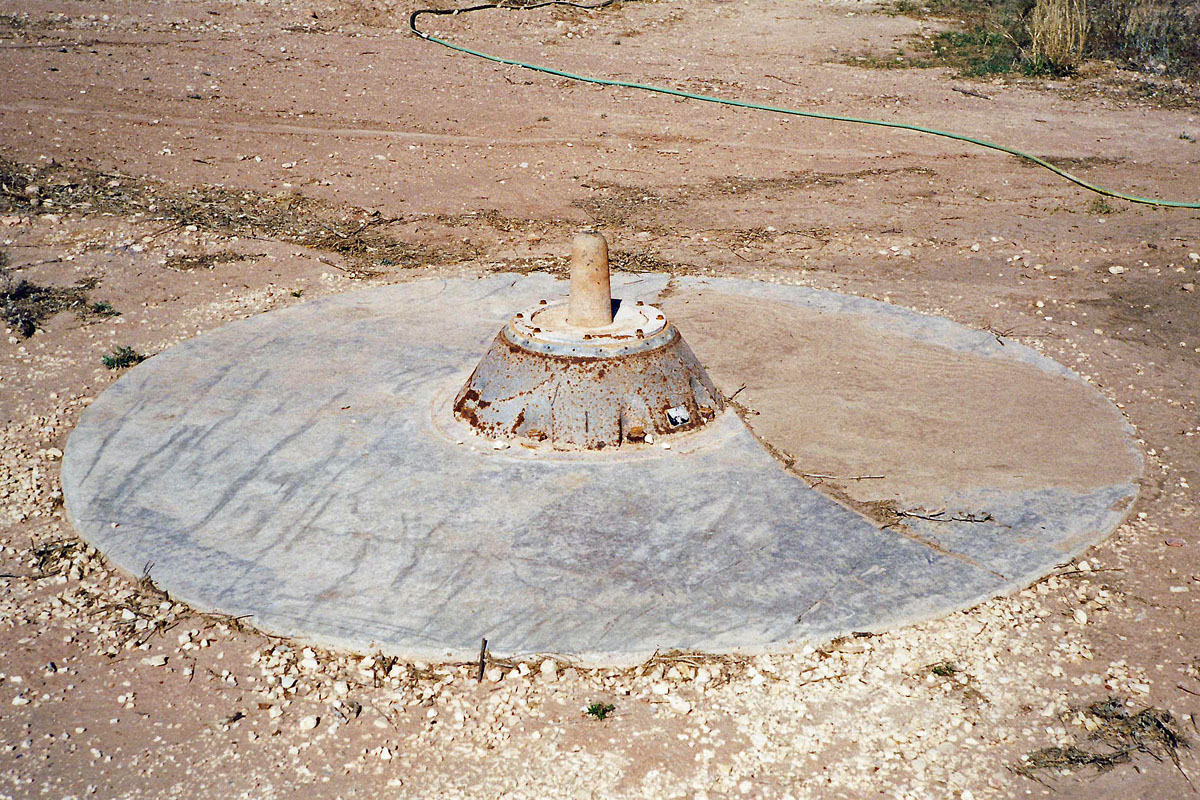

Hard UHF antenna
Hard UHF antenna This facility did have a separate water systems annex, but I did not attempt a visit on this trip. Dyess Missile Site #6 (578-6) TX, PIN 7271. On 24 June 2000, The Atlas ICBM Historical Society hosted an open house of Dyess Missile Site #6, in cooperation with Missile Base Enterprises, the agency controlling the site. This open house, east of Lawn, Texas, had been advertised both in the Abilene newspaper and the Dyess AFB base paper. Those braving the heat and dust were treated to explanations of the surface features, such as the silo doors, pop-up antenna silo, UHF antenna, sight tube platform, this foundation, and the concrete entry portal. Stainless steel piping still gleams in the sun. This was followed by guided tours of both levels of the LCC. On L1 (upper level) visitors noted the large central column, the escape hatch, and coil spring mounts for fluorescent light fixtures. From L2 (the lower level), we could see the remains of the walls which had boxed-in the center column. Complicated ductwork still hangs from the ceiling. Hats off to Bruce Townsley, president of the historical society, and Larry Sanders, president/CEO of Missile Base Enterprises, for allowing the community this chance to see an ICBM facility up close. Several other society members worked the event, spending their Saturday afternoon educating visitors on the Atlas system. After the public tours ended, society members enjoyed a nice dinner in the LCC, talking about--what else--the challenges and joys of renovating missile sites!

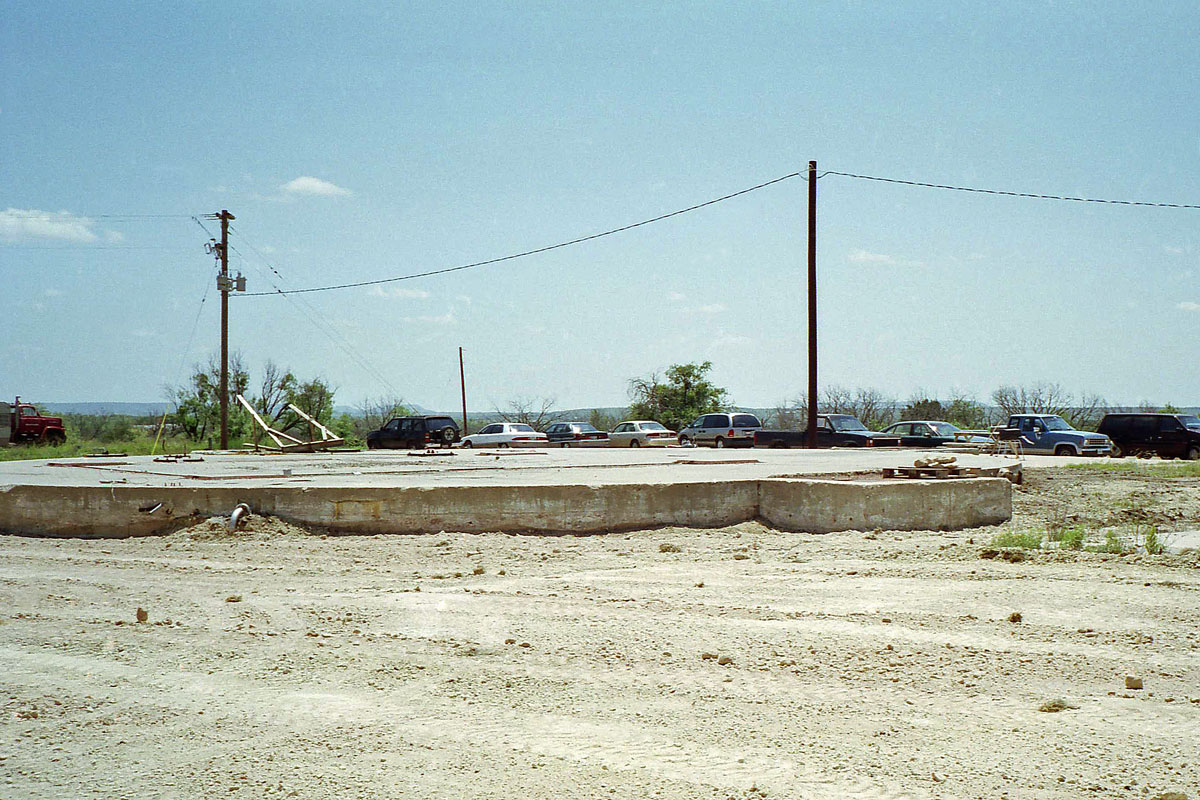

General view

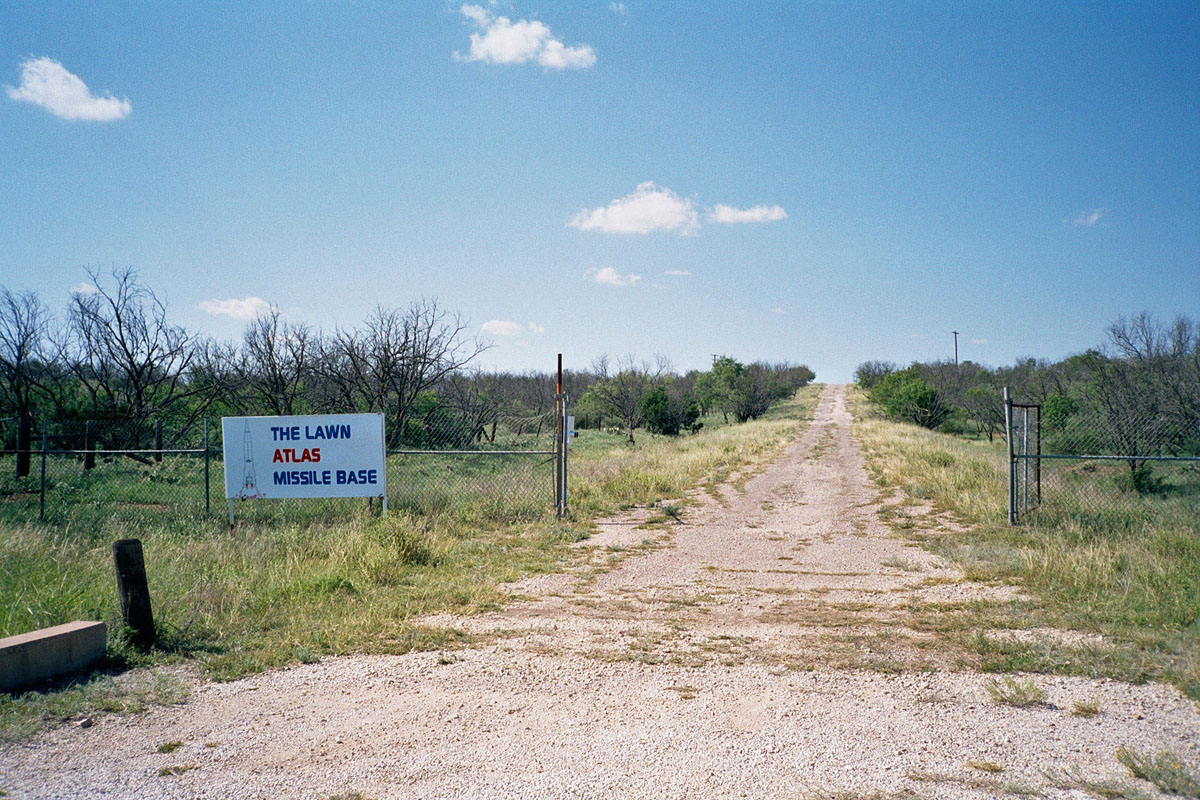

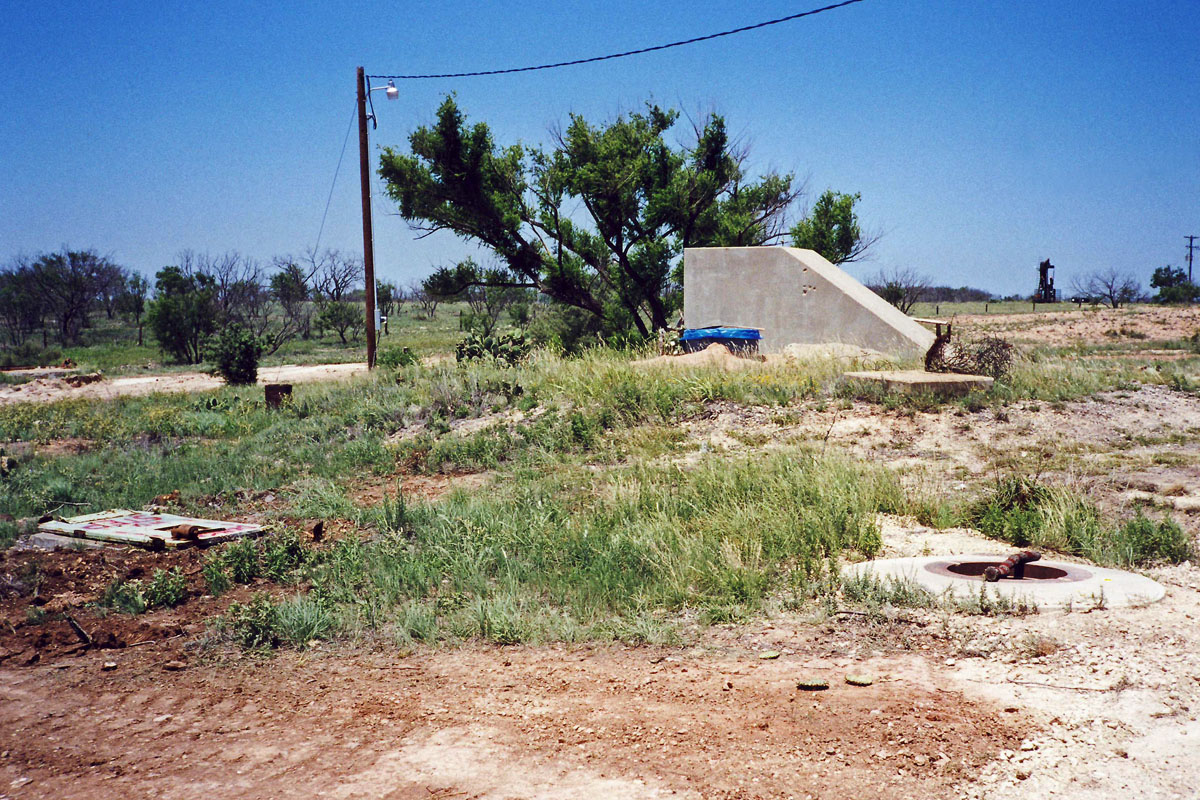

View from access road
General view

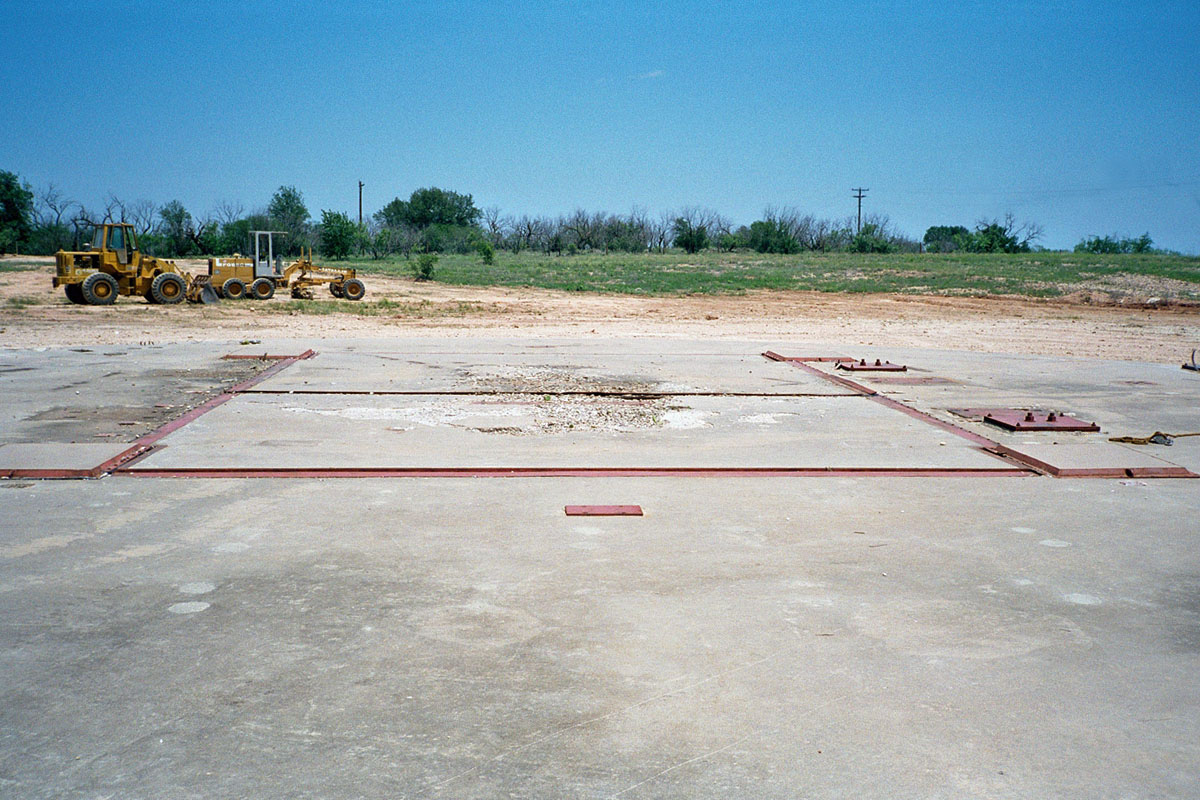

Silo doors

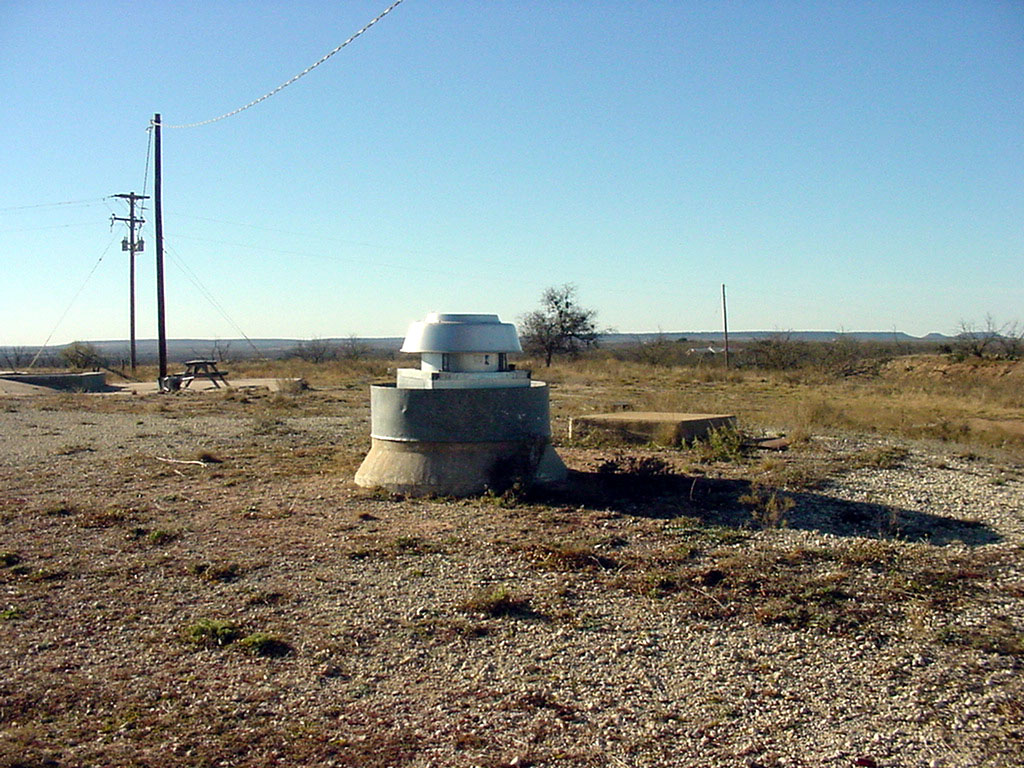

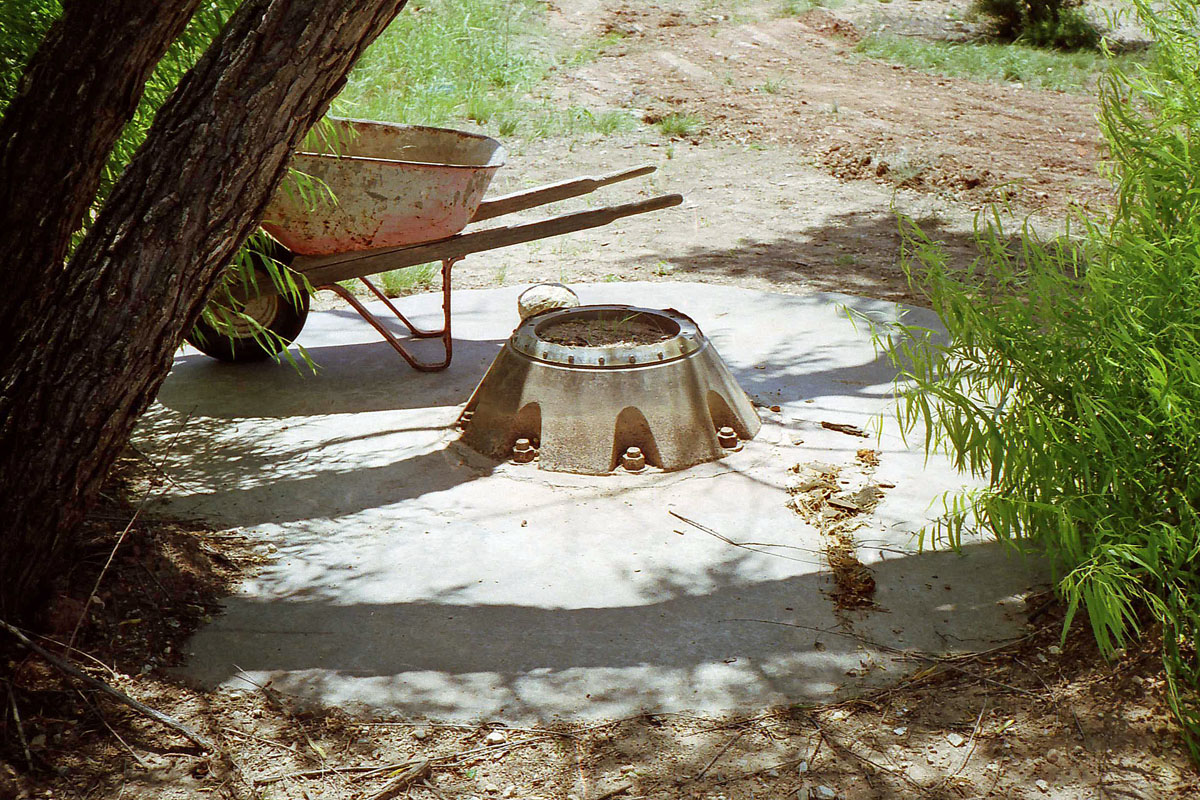

Pop-up antenna silo
Hard UHF antenna
Sight tube platform

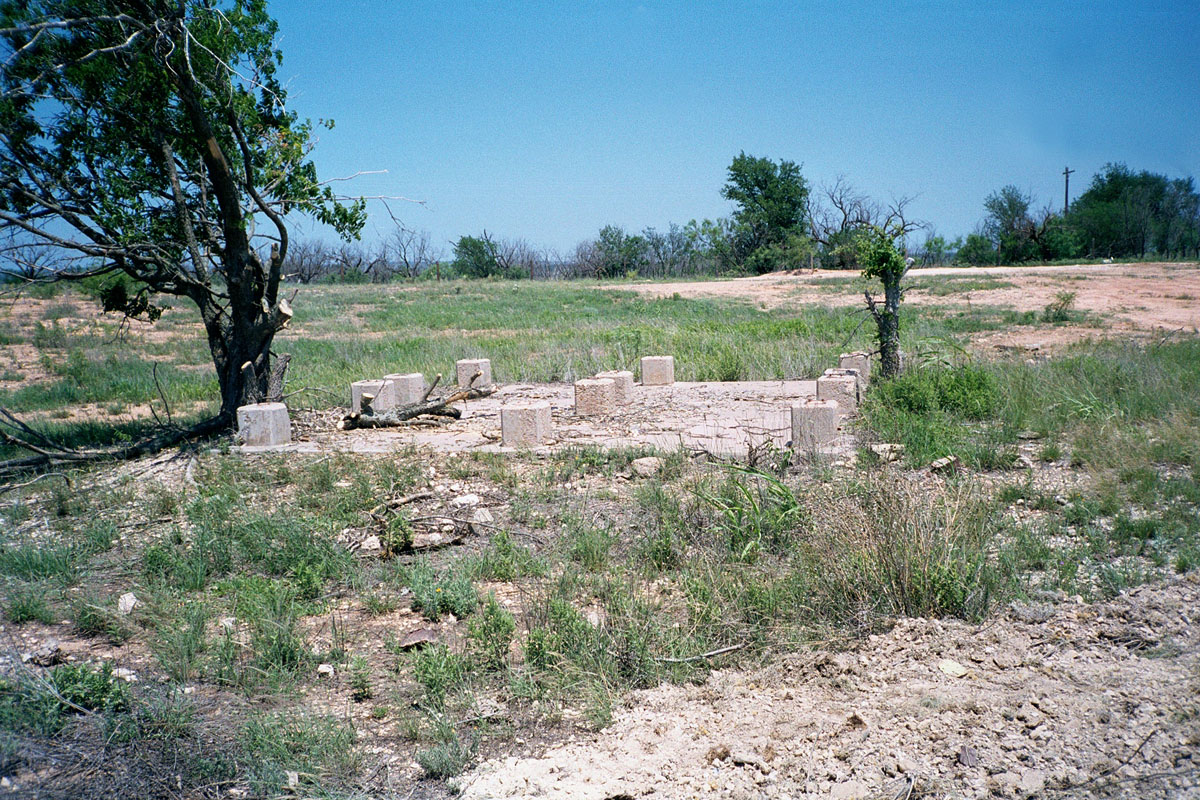

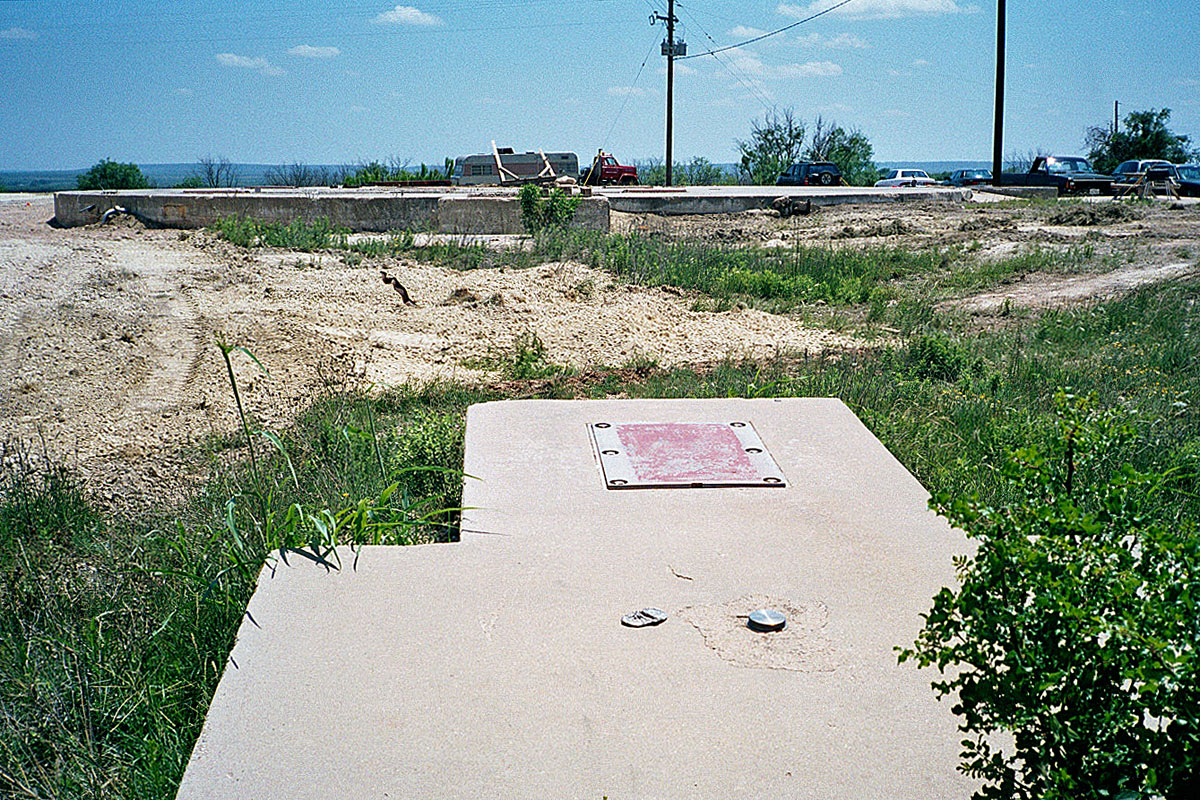

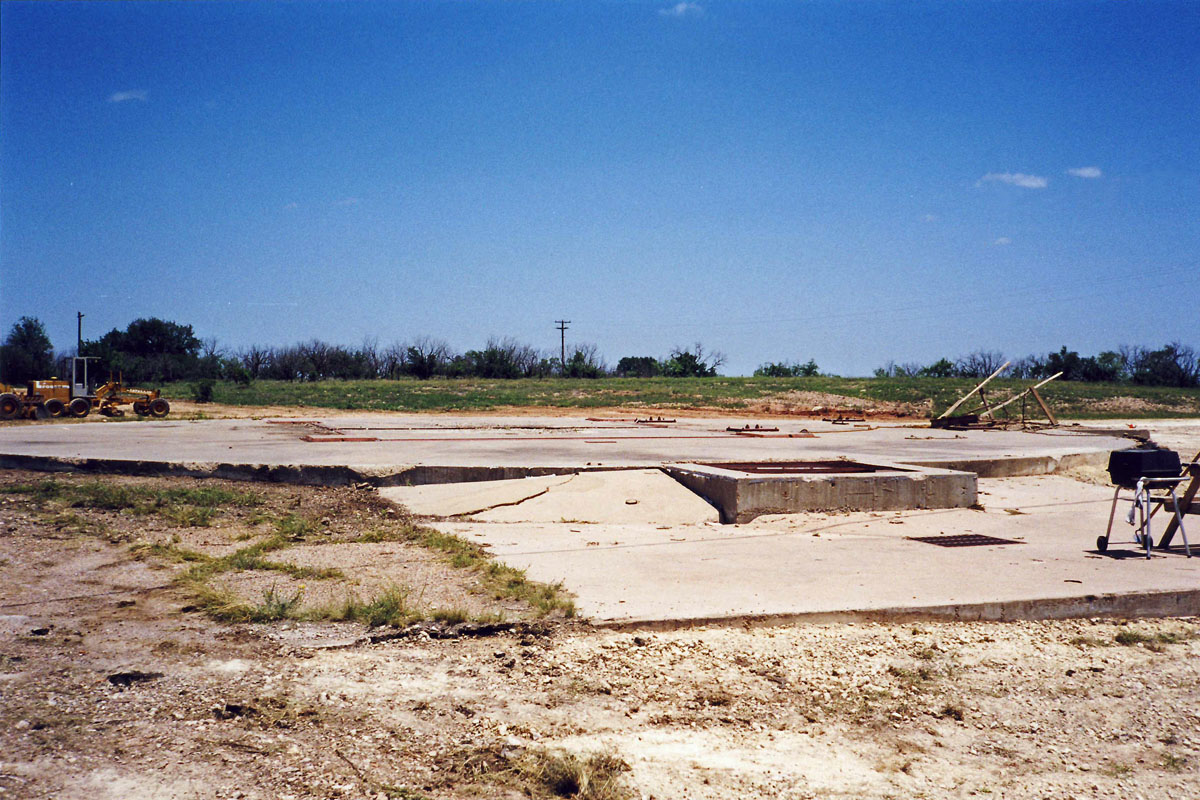

Concrete pad
Personnel entryway
General view showing personnel entryway
Stainless steel piping

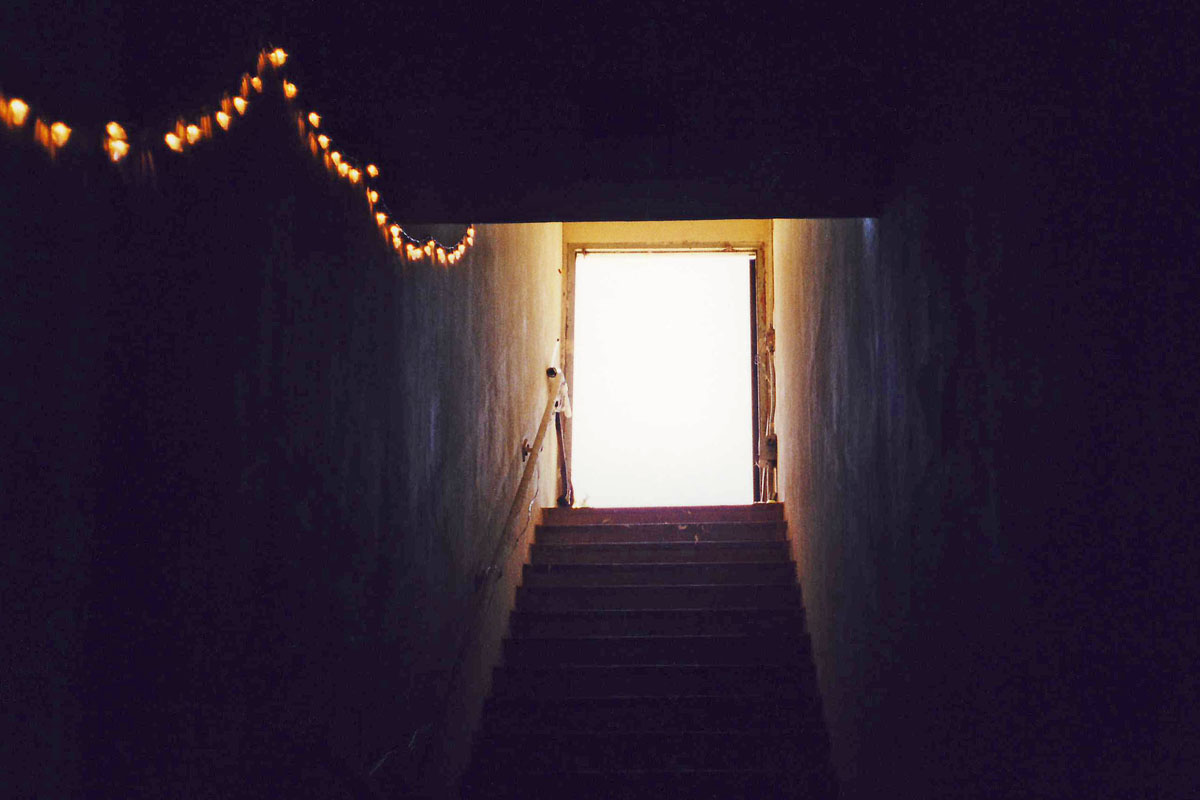

Entrance stairway
Launch control center escape hatch

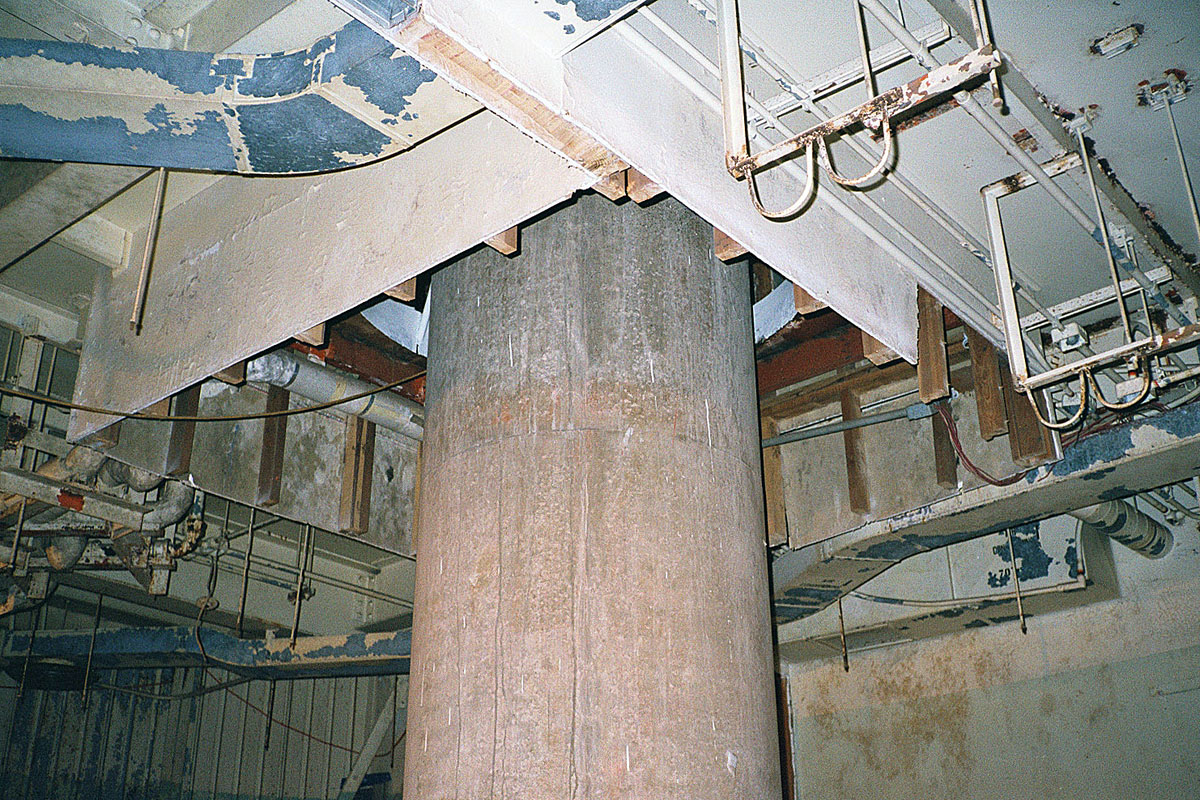

Launch control center L2 showing remains of original walls

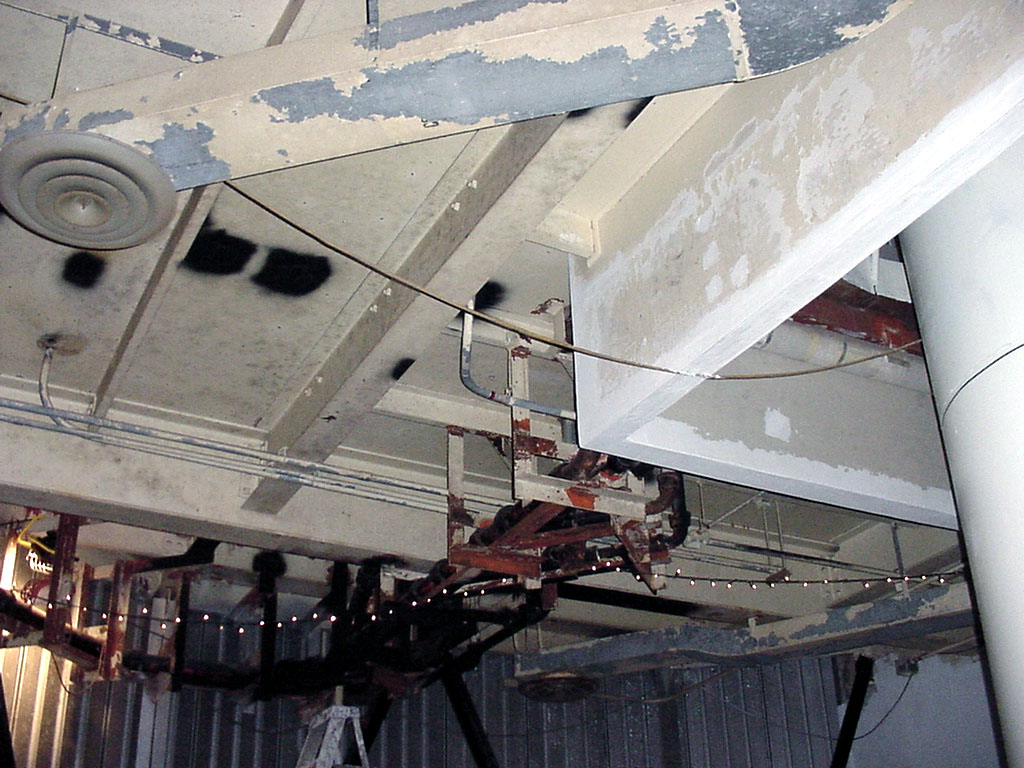

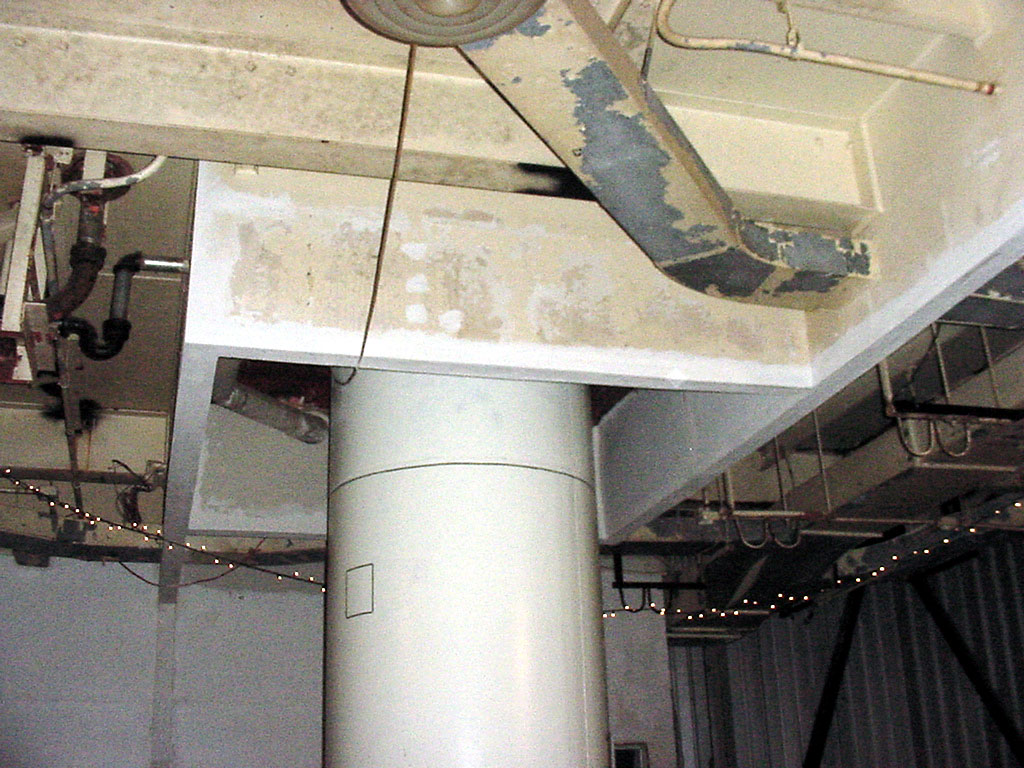

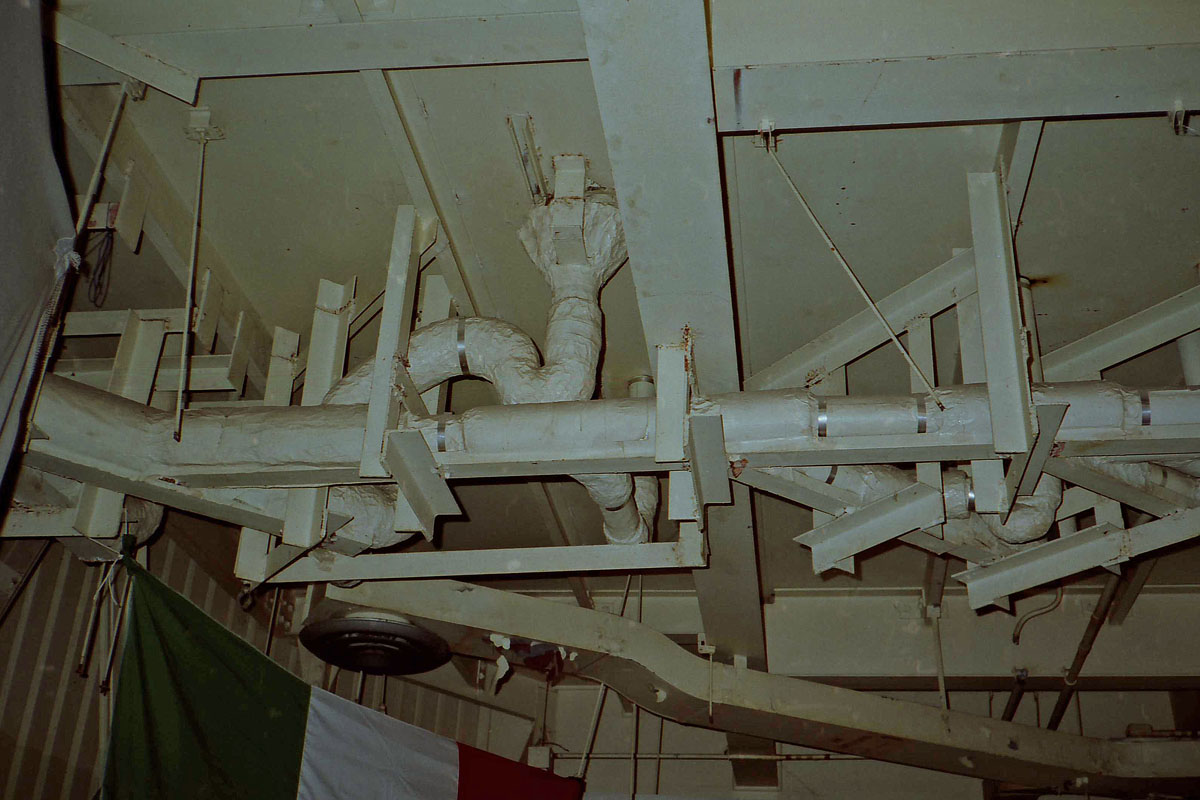

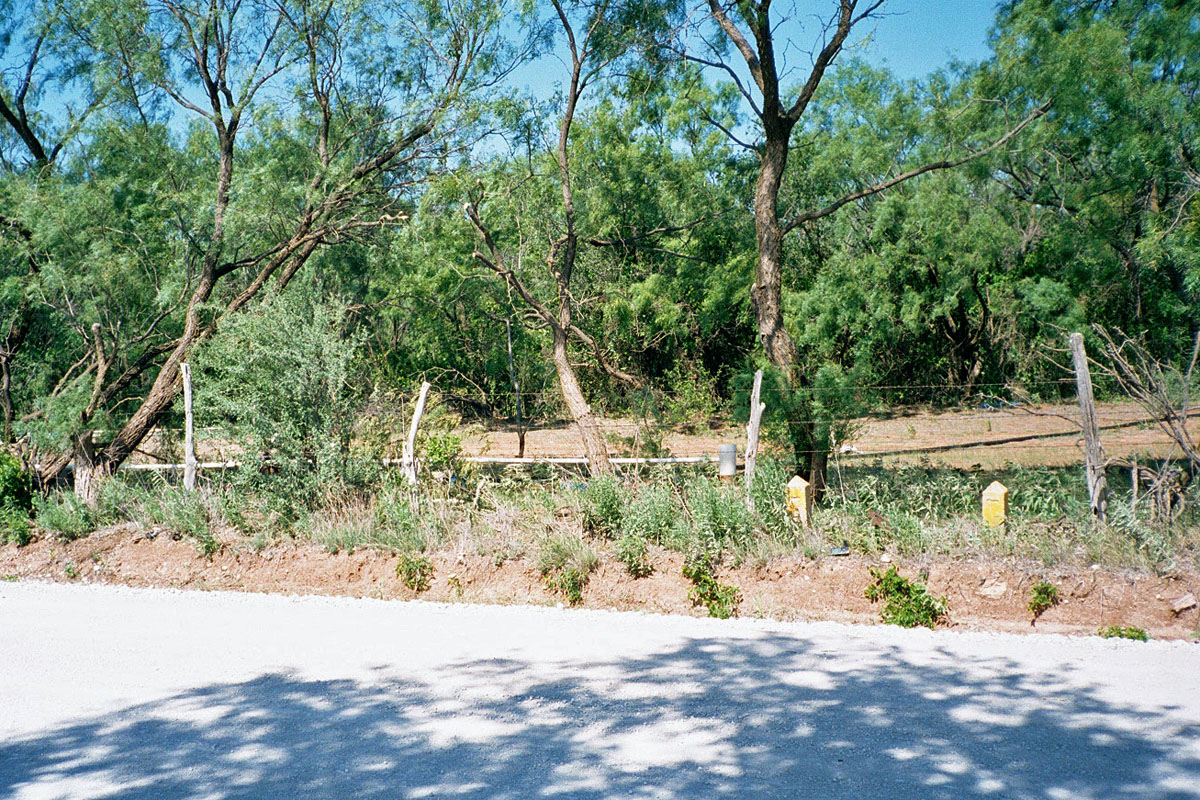

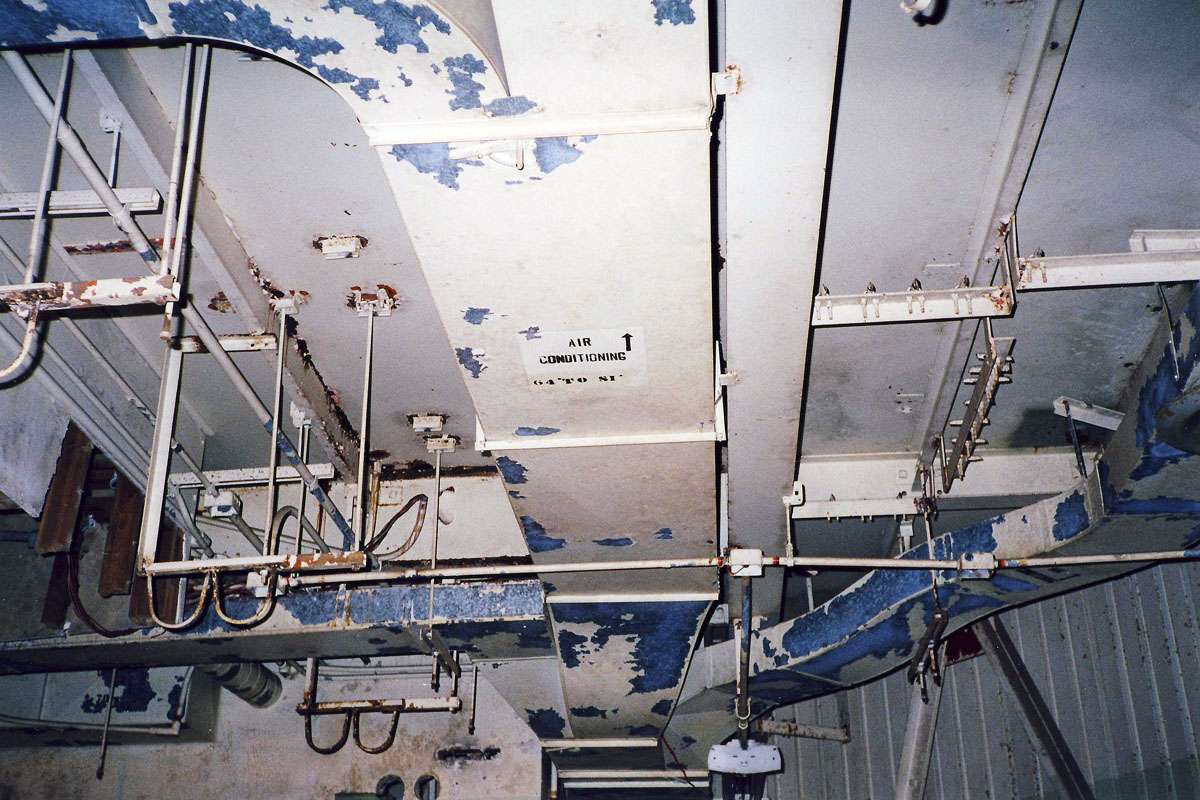

Launch control center L2 ductwork Dyess Missile Site #6 Water System Annex TX, PIN 7819. I found the separate water system site for Missile Site #6. It sits 1.5 miles west of the missile site, and consisted of two wells which provided fresh water through a pipeline.

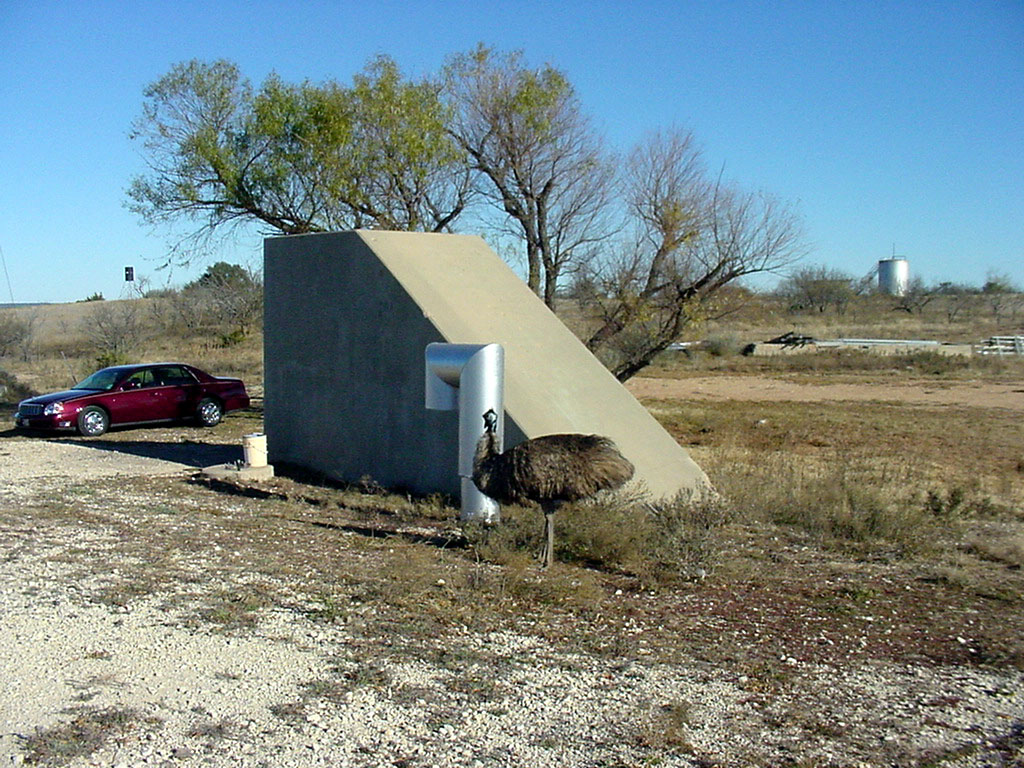

General view of remains On 19 December 2003, I made a return visit to Dyess Missile Site #6. More hard work had been spent cleaning up the site. An emu had taken up residence on the property, observing me as I observed the entry portal and escape hatch. Downstairs, the LCC including the escape hatch were in good shape. I appreciated that Larry has retained the upper portions of wall framing in the lower level of the LCC. This way, future visitors will be able to visualize the layout of the walls that used to exist here.

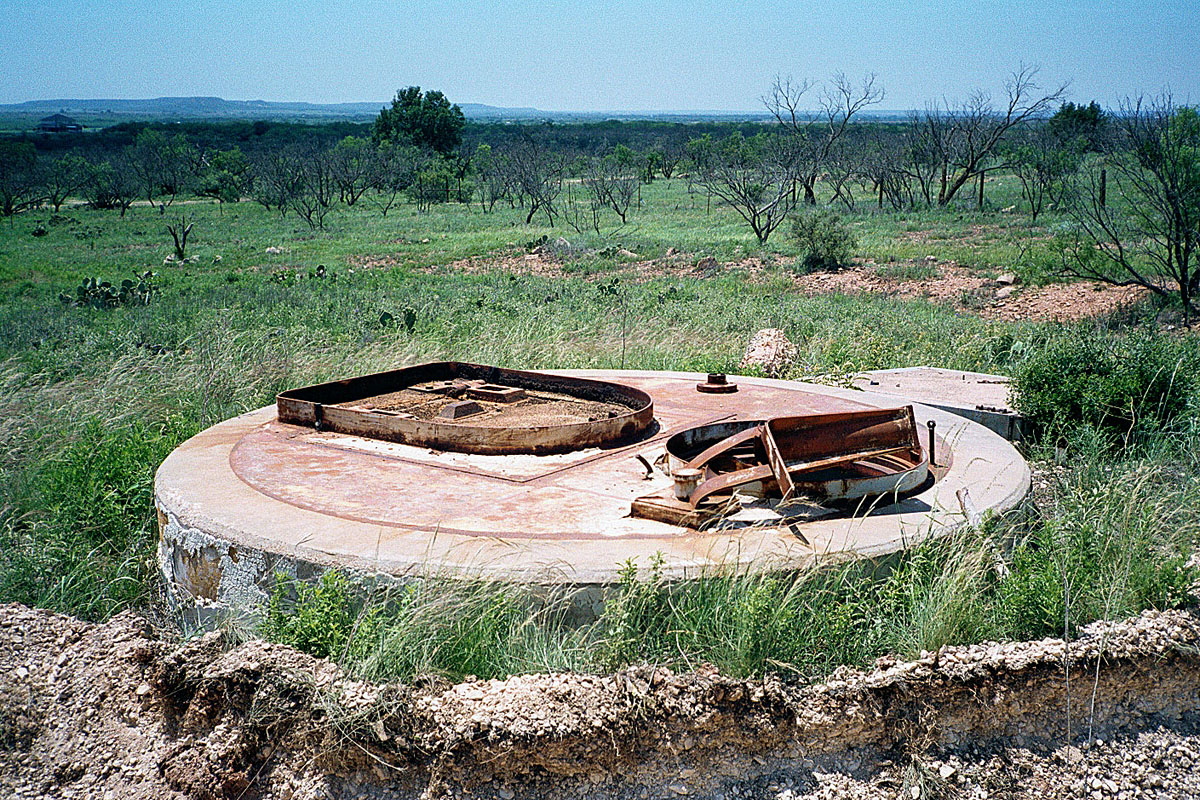

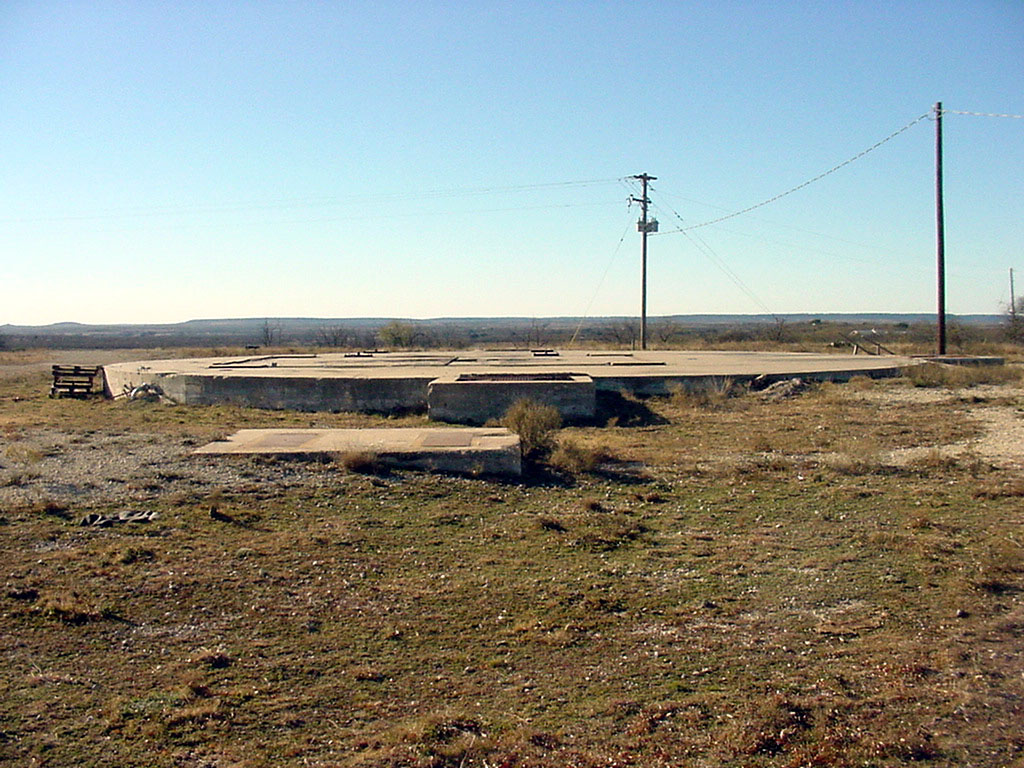

Silo doors

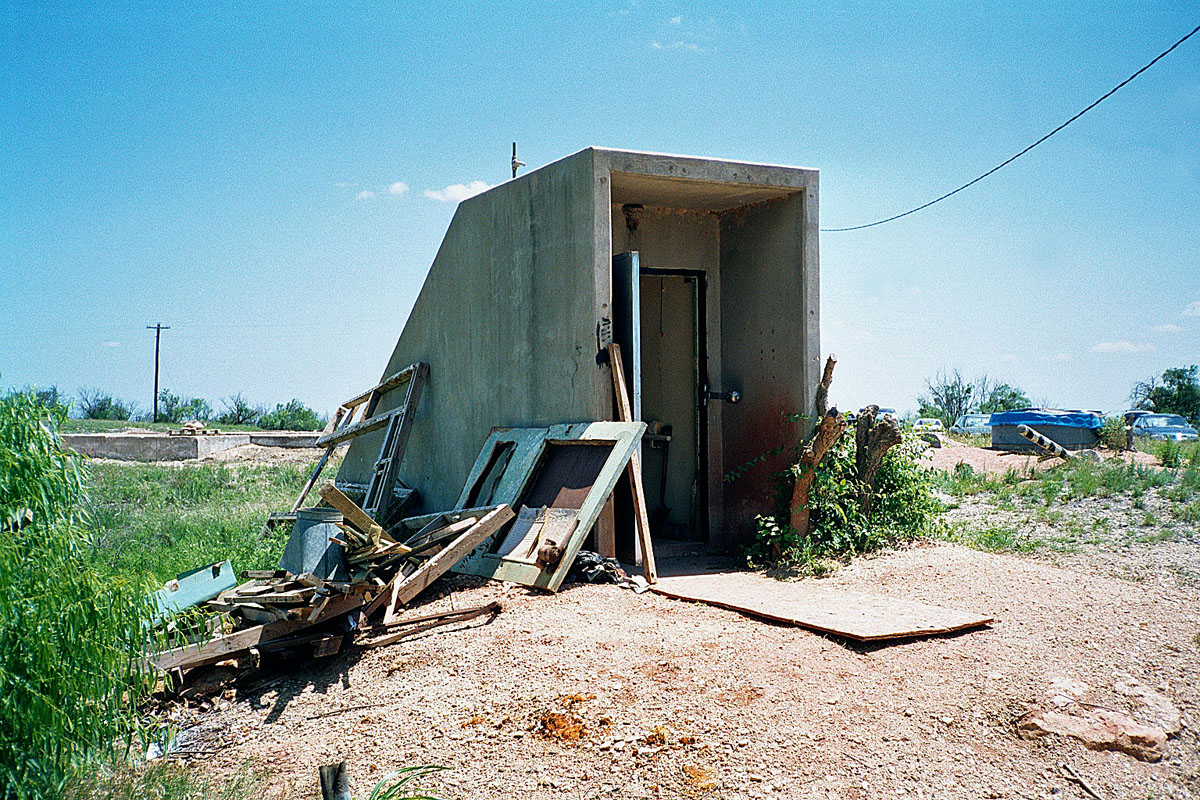

Personnel entryway
Escape hatch

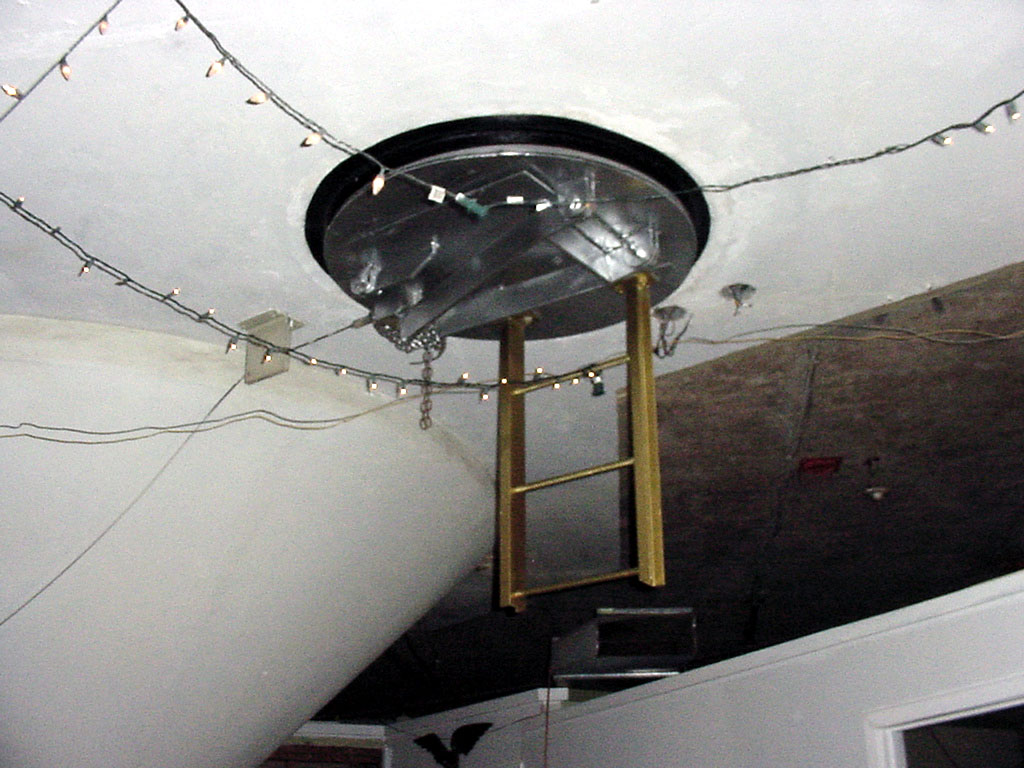

Launch control center escape hatch

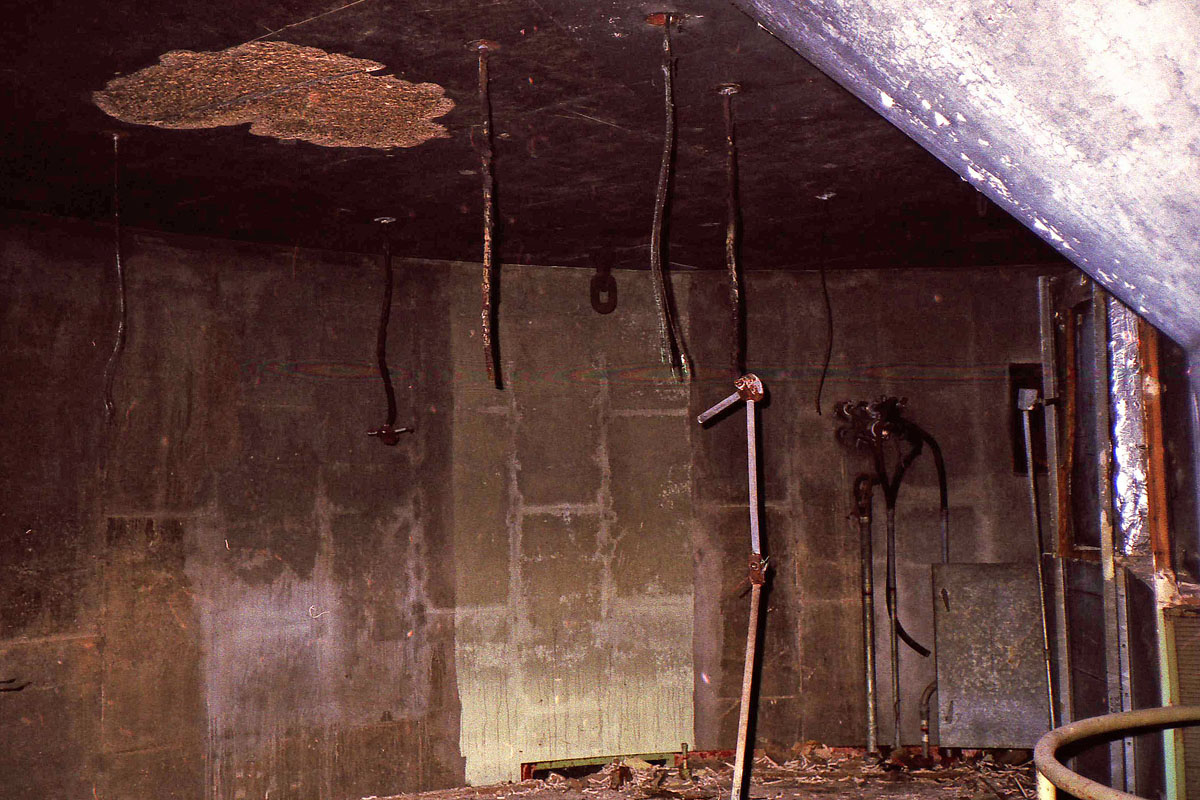

Launch control center

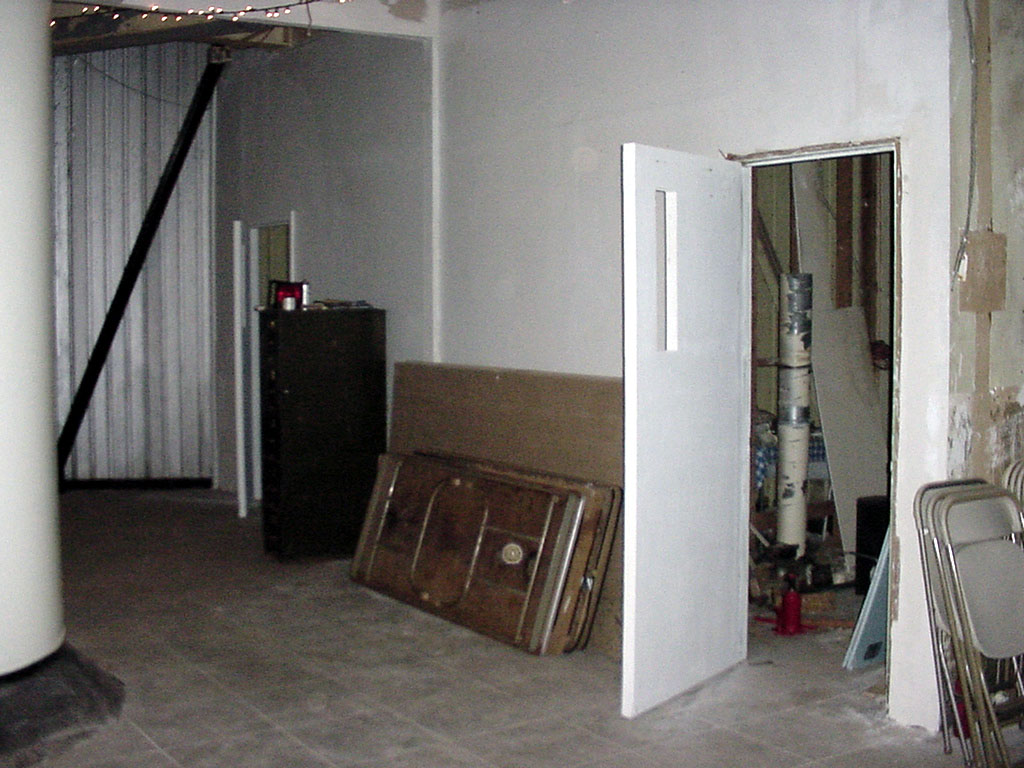

Launch control center showing remains of original walls
Launch control center showing remains of original walls Dyess Missile Site #10 (578-10) TX, PIN 7275, ILC FNXZ. The owner offered a tour on 14 October 2000, in conjunction with the Atlas ICBM Historical Society. This site was purchased directly from the government by the present owner. The seemingly random assortment of debris on the silo cap is actually a large and accurate sundial. The silo lacks crib structure, and is partly water-filled. Here is a view of the silo doors from below. In the LCC, most of the interior wood framing and trim is intact, although much of the sheetrock has been covered with paneling. One curious feature is this unusual steel cover, of undetermined origin and purpose, placed over the communications pop-up antenna silo. It is not original to the site, and resembles the antenna support housing for a VORTAC.
Personnel entryway and escape hatch

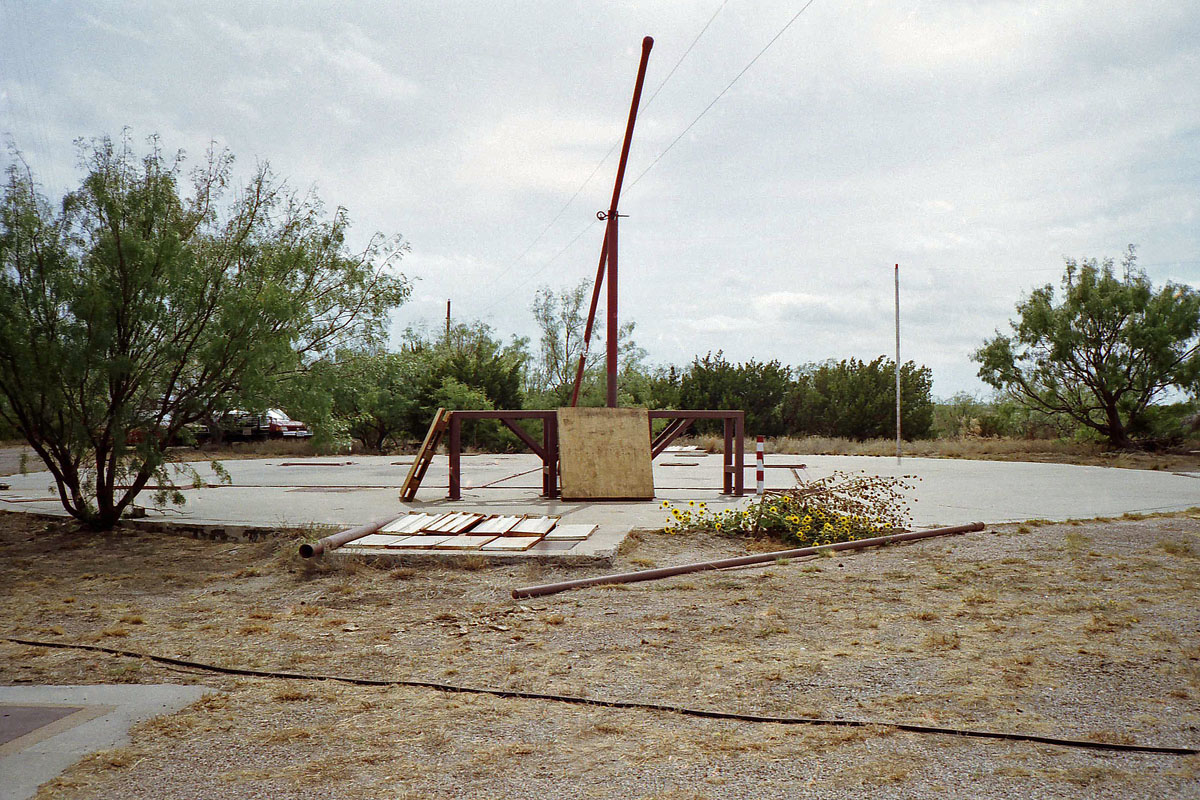

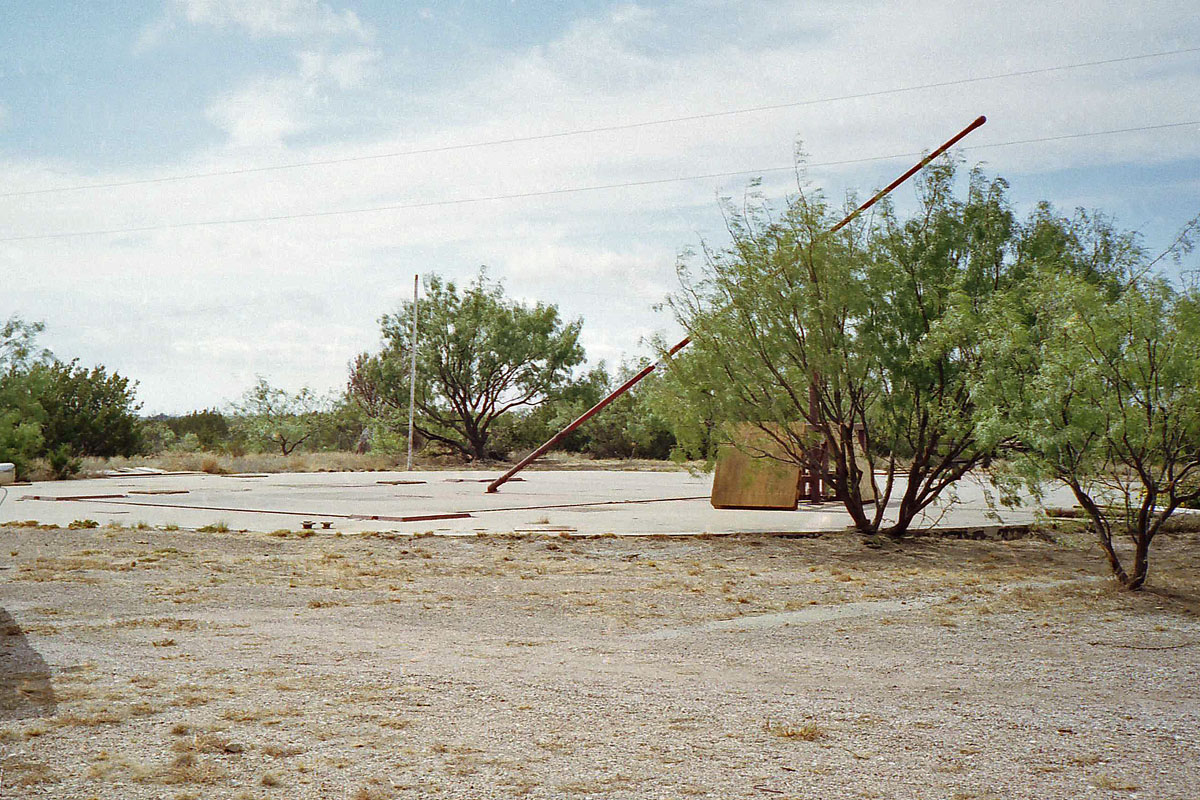

Silo doors

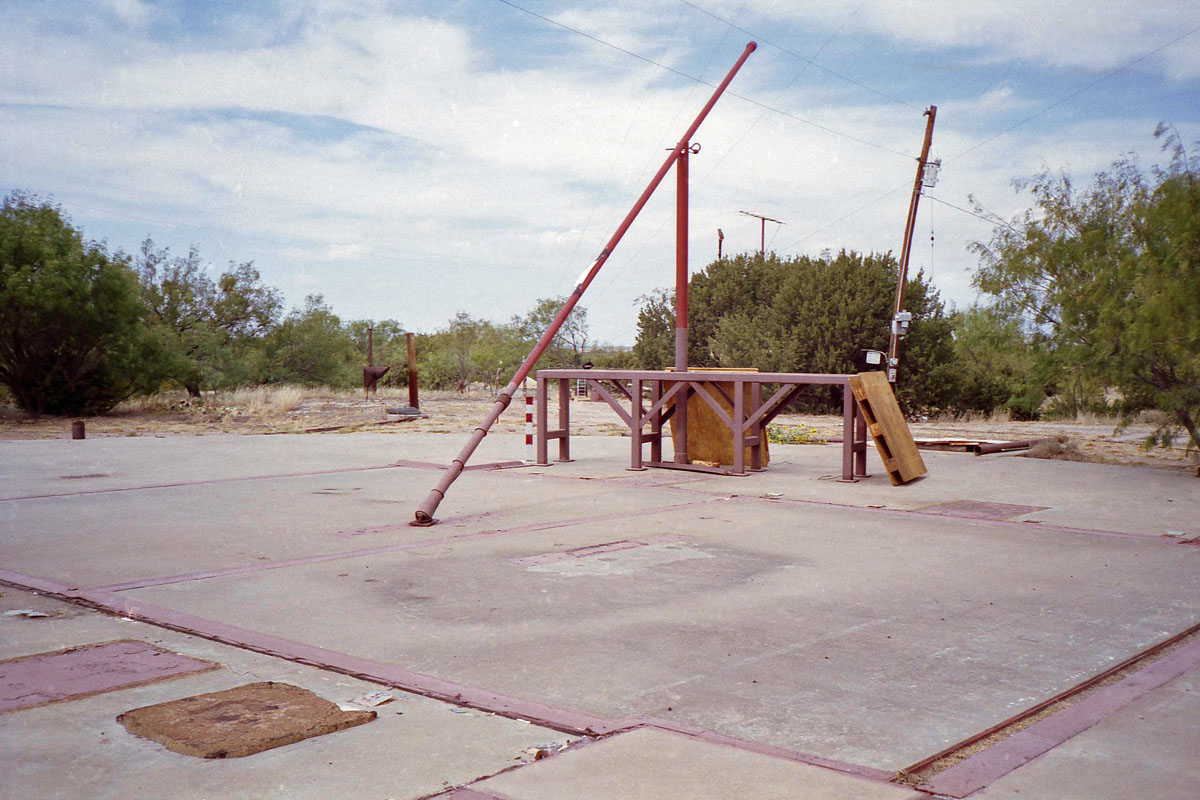

Silo doors
Silo doors

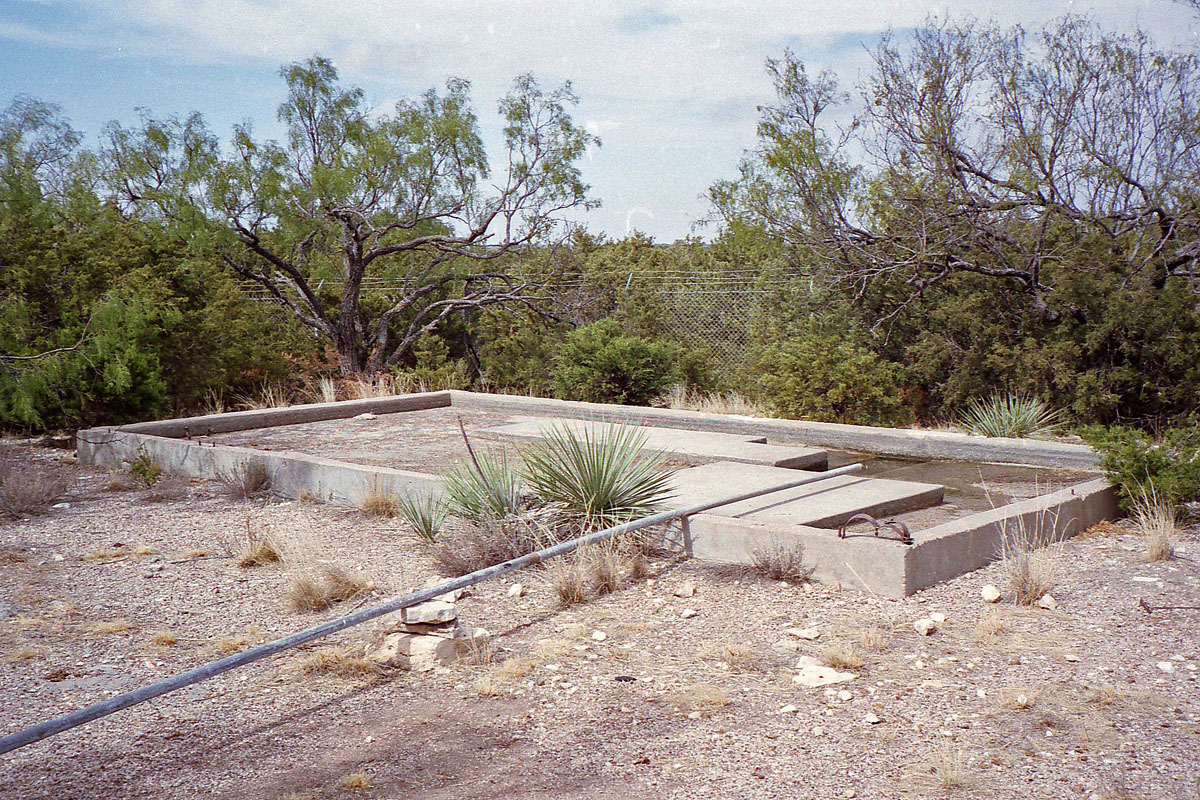

Water plant remains

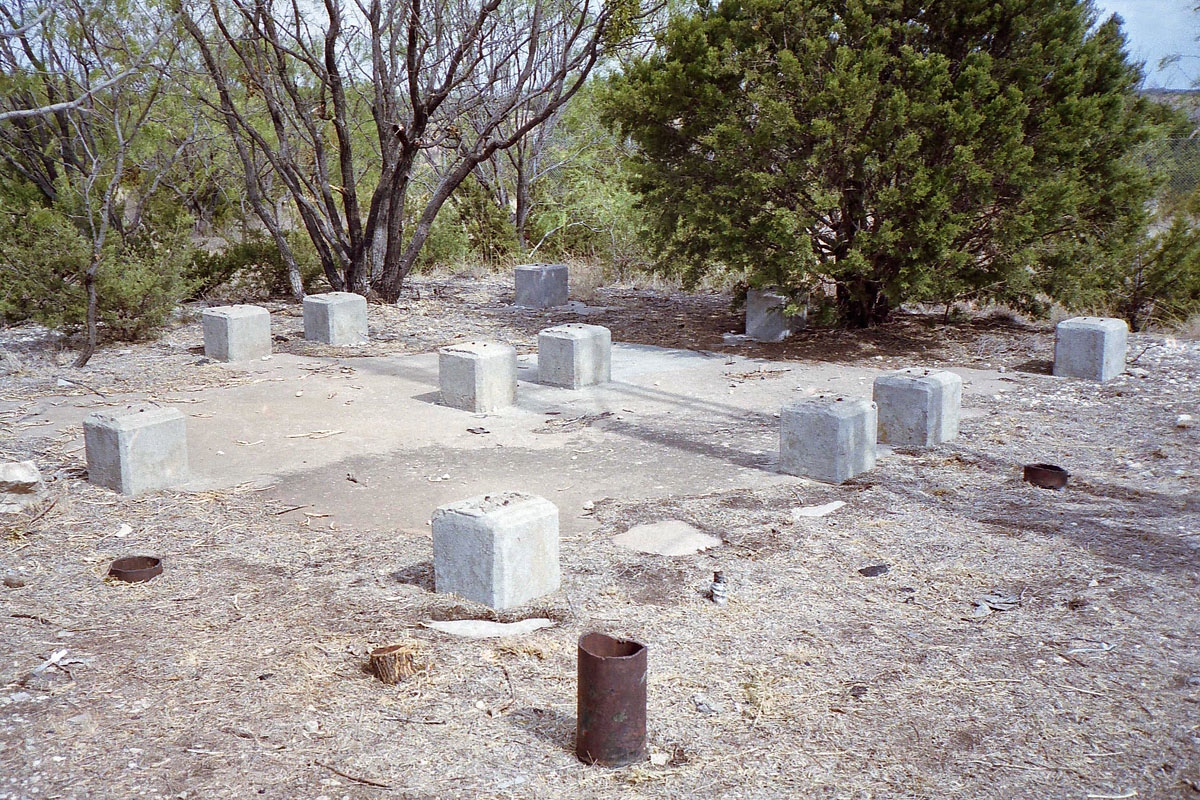

Cooling tower
Escape hatch

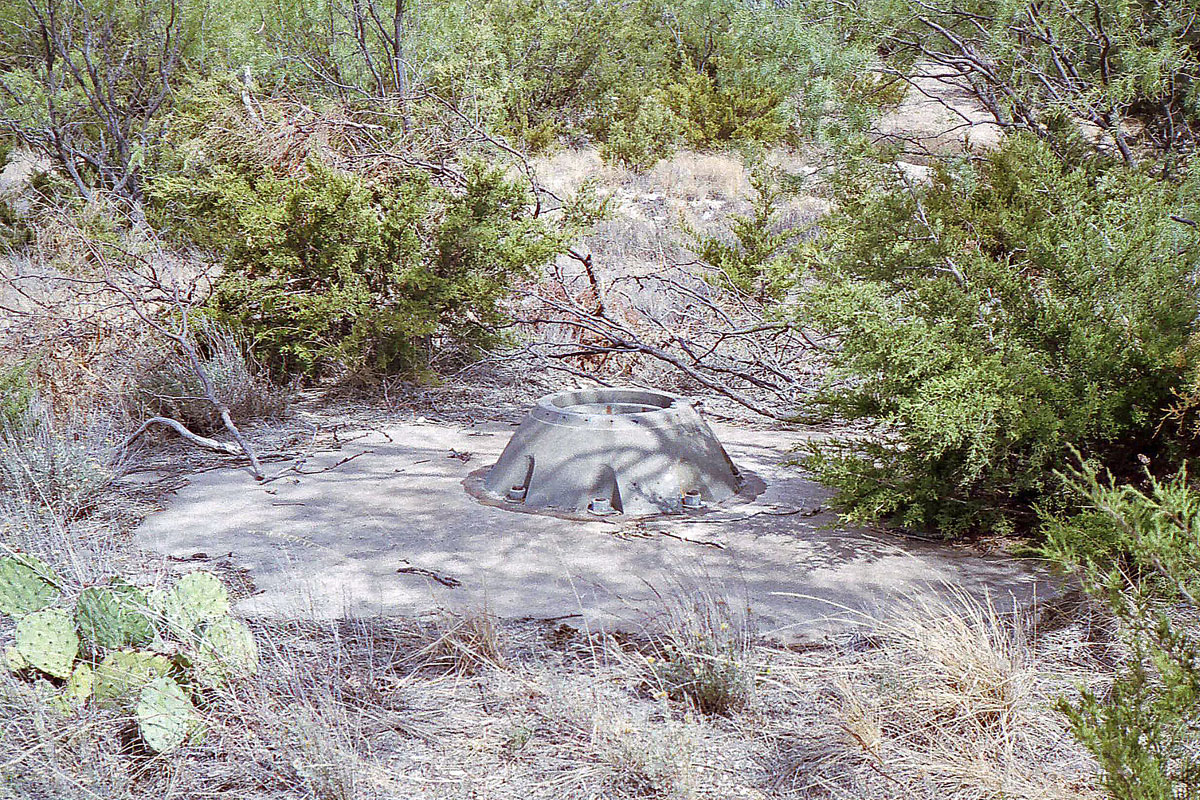

UHF antenna
Personnel entryway
Personnel entryway

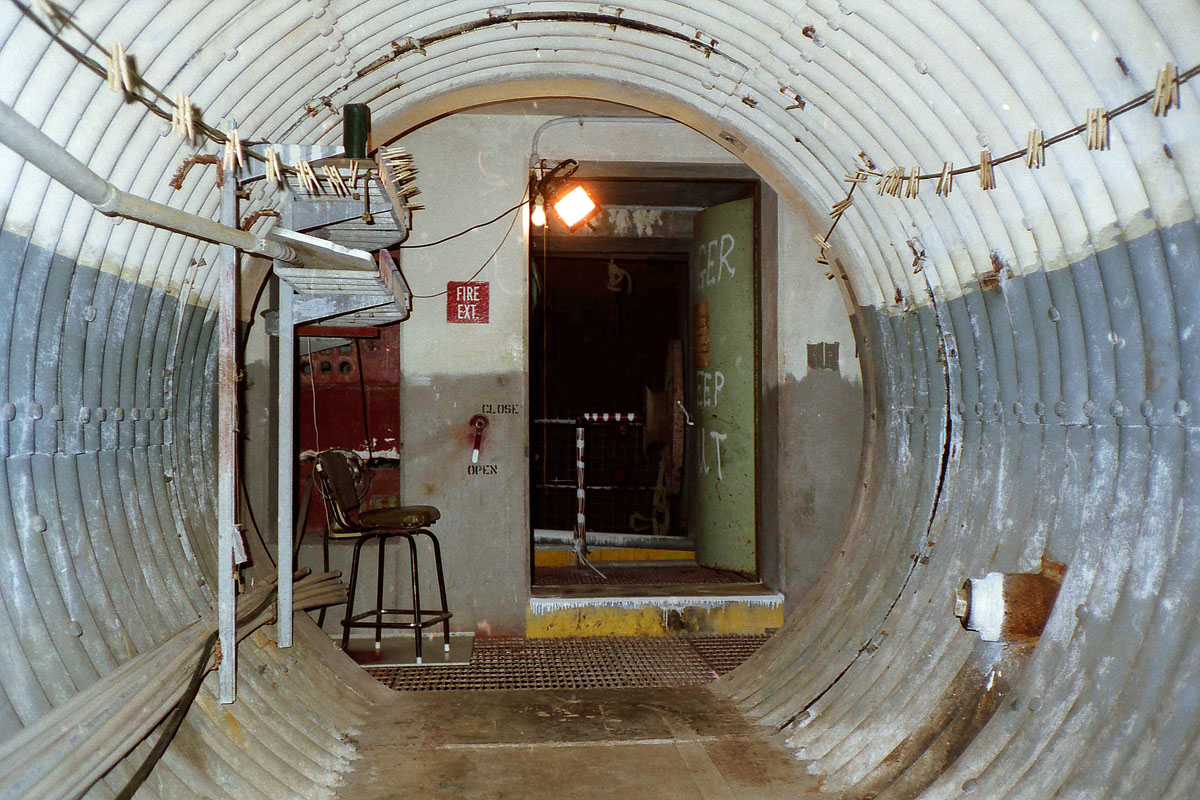

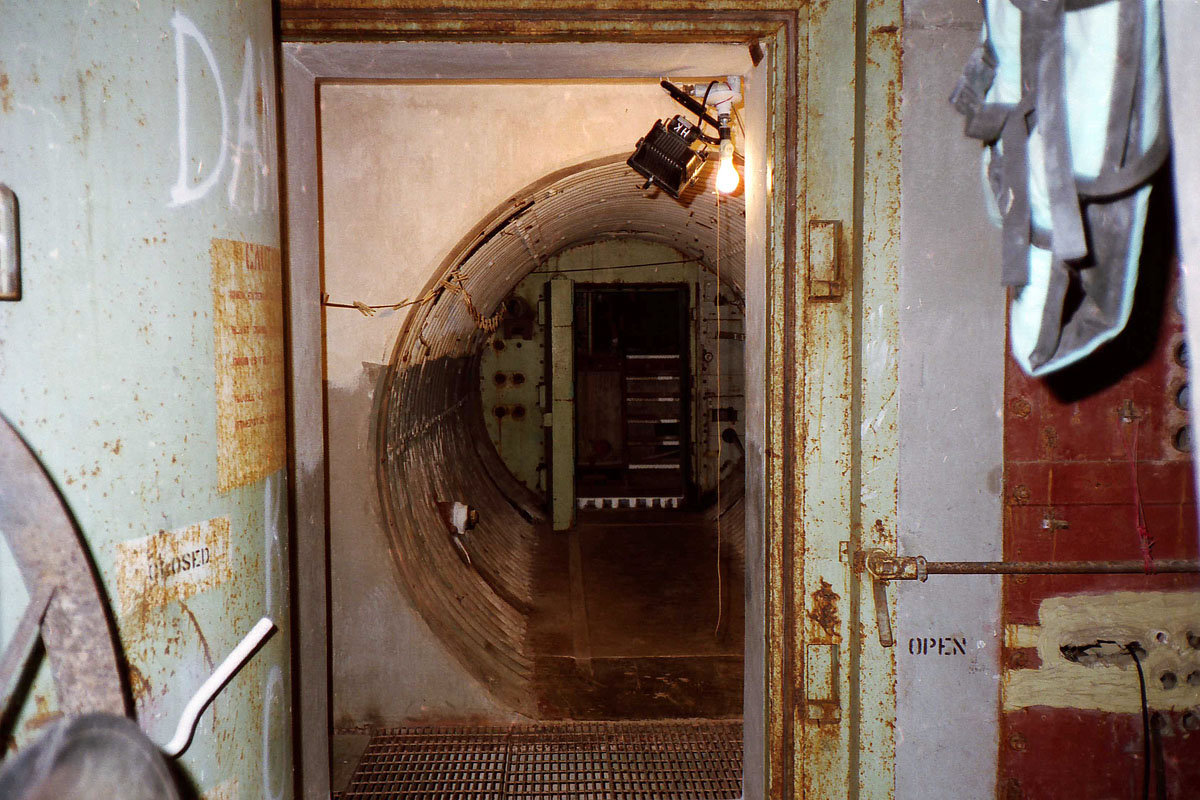

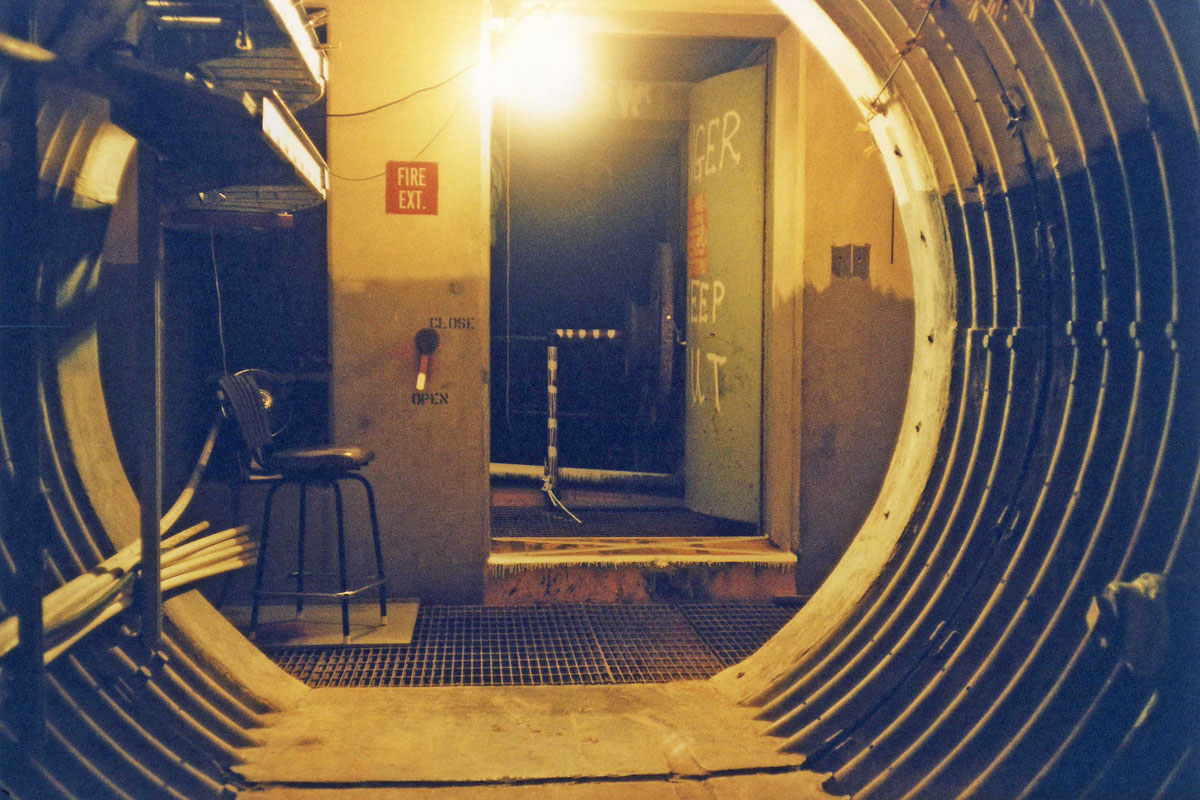

Tunnel, view from LCC toward silo
Tunnel, view from silo toward LCC

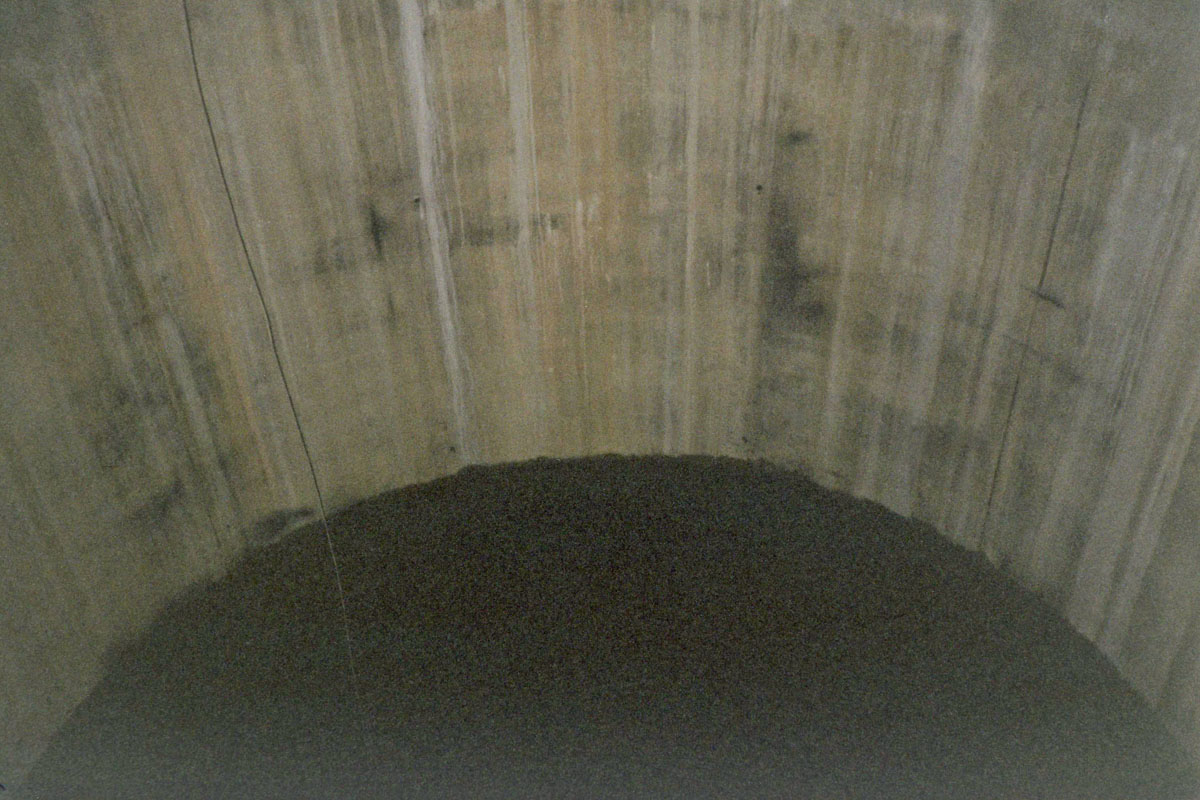

Silo

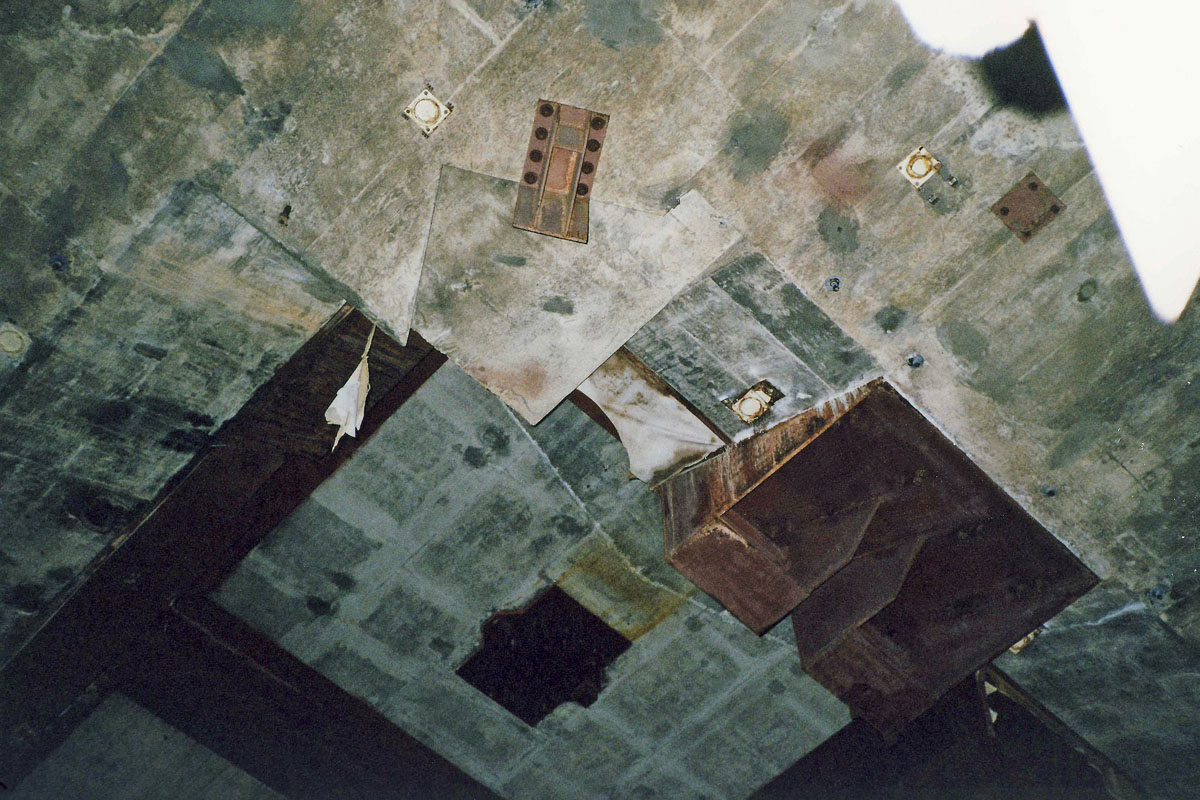

Silo doors viewed from L2 below
Silo doors viewed from L2 below
Tunnel, view from LCC toward stairway

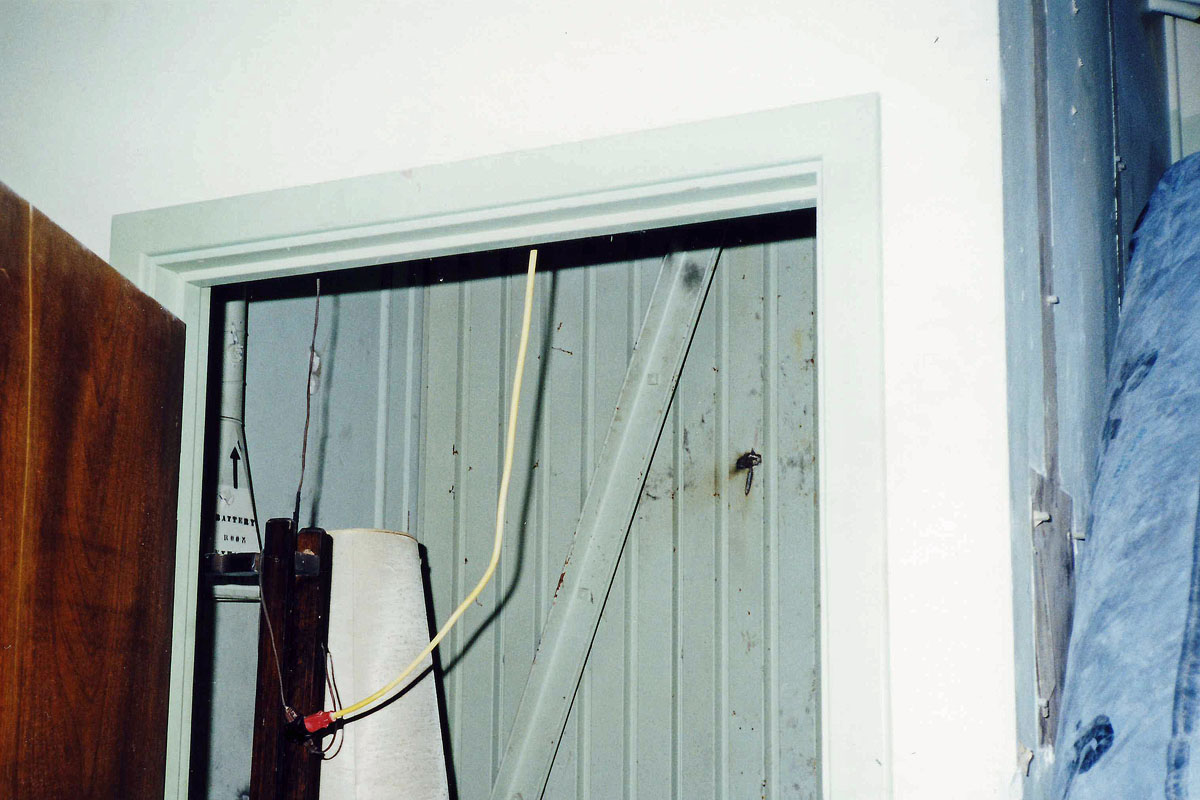

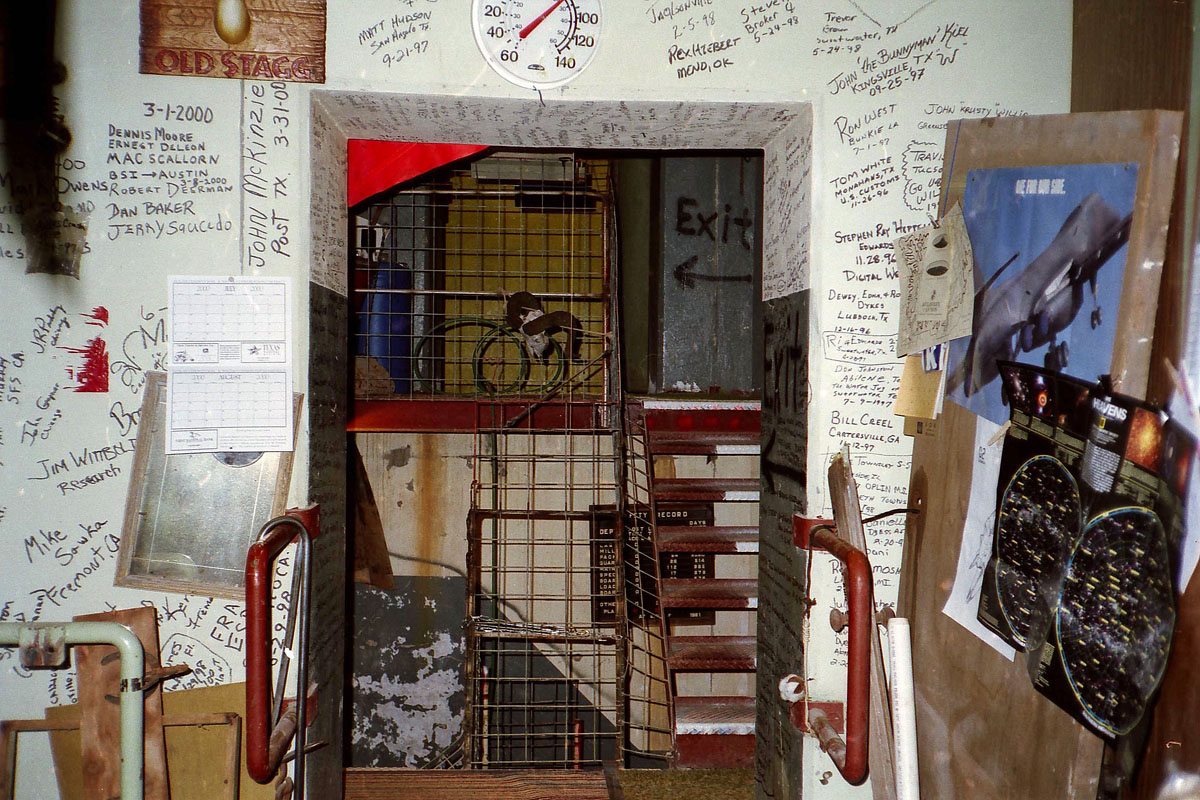

Launch control center showing original door and trim
Launch control center stairway

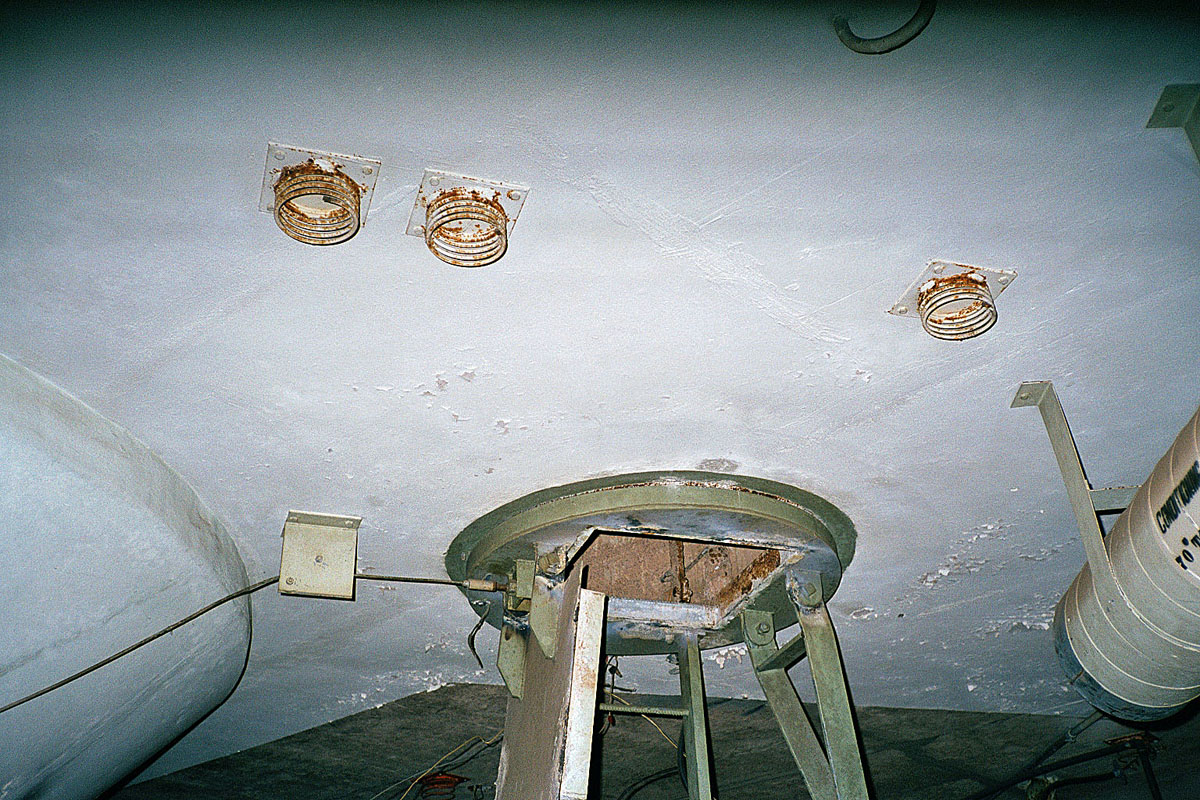

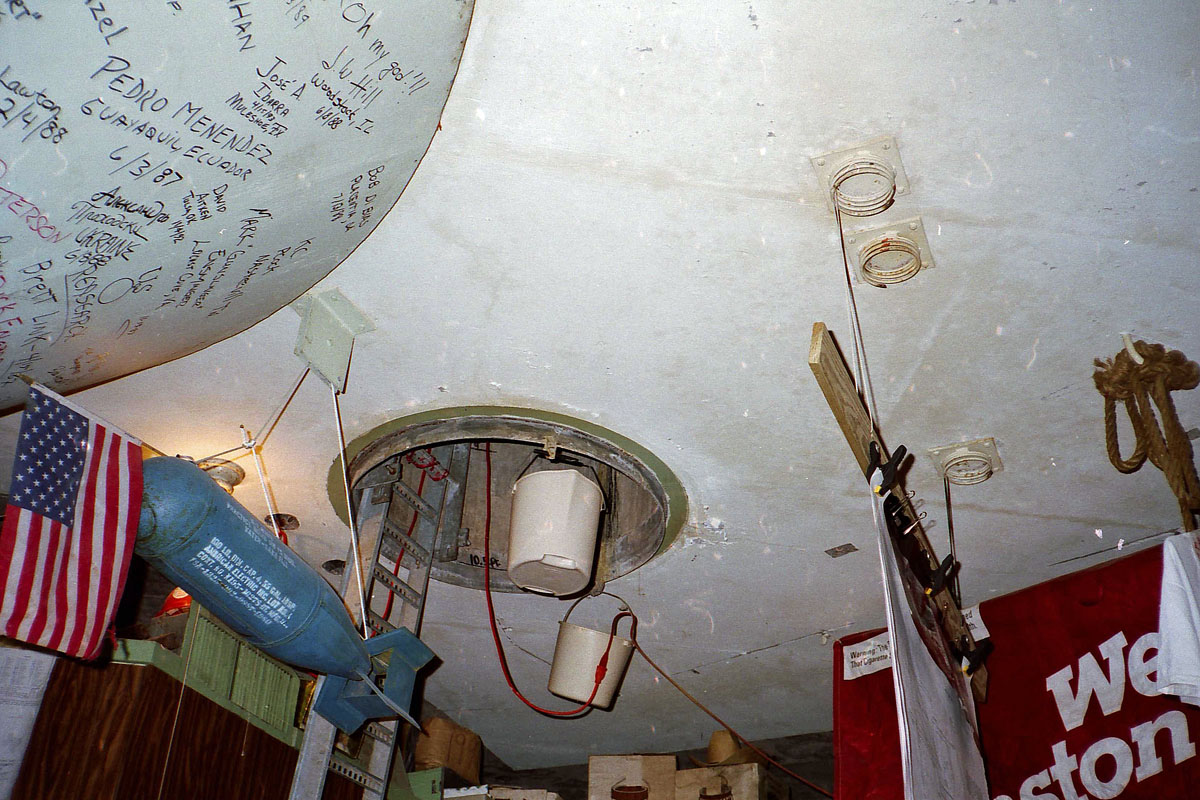

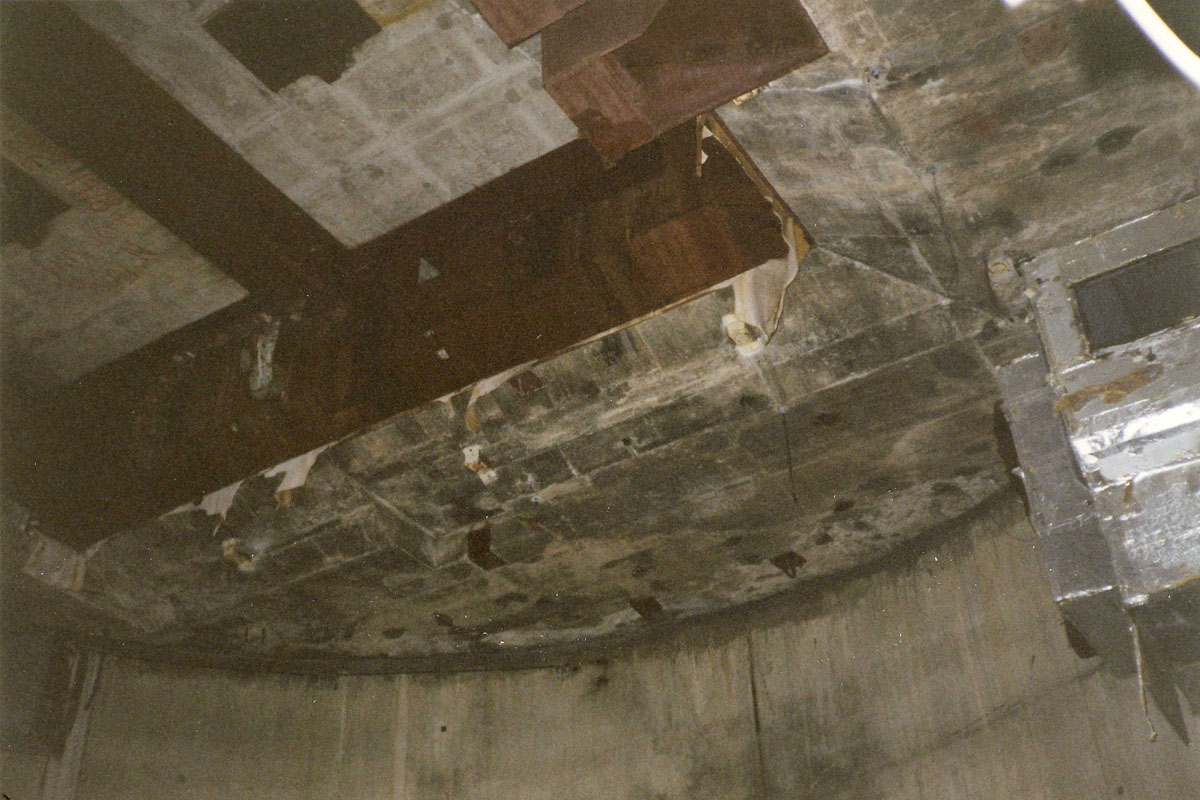

Launch control center L1 ceiling

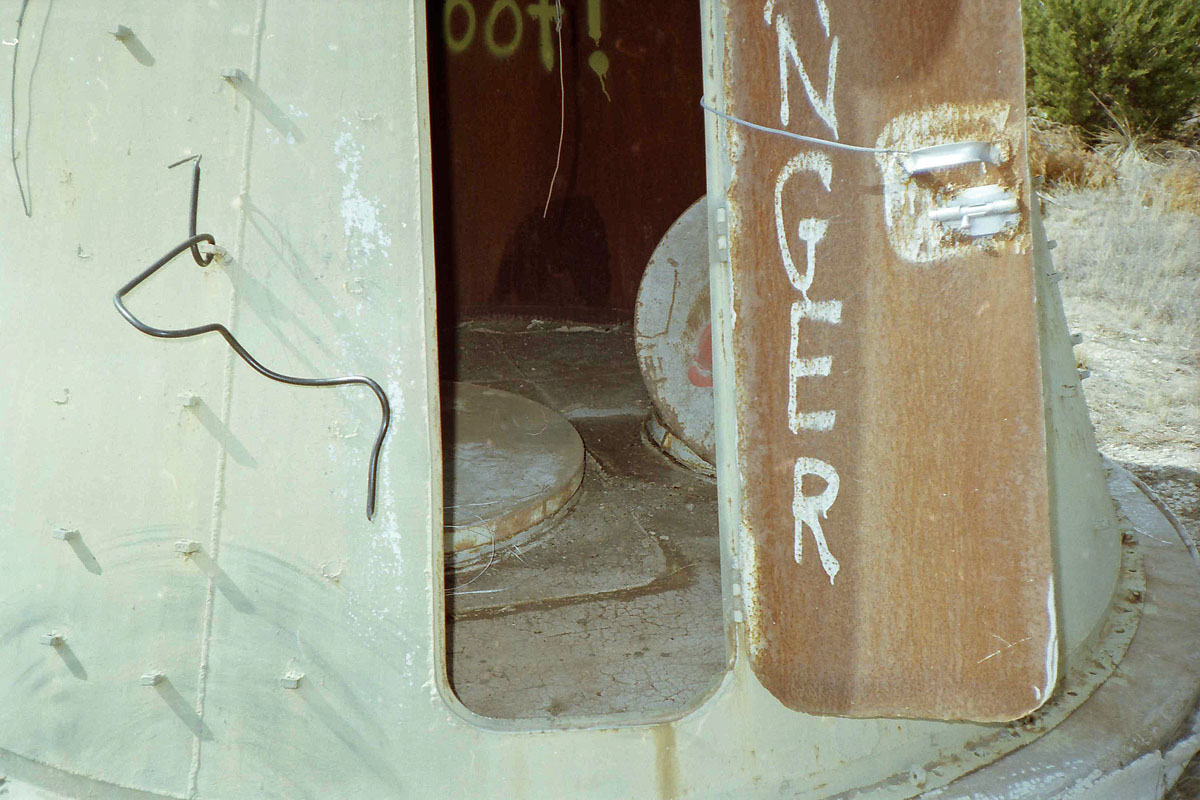

Launch control center escape hatch

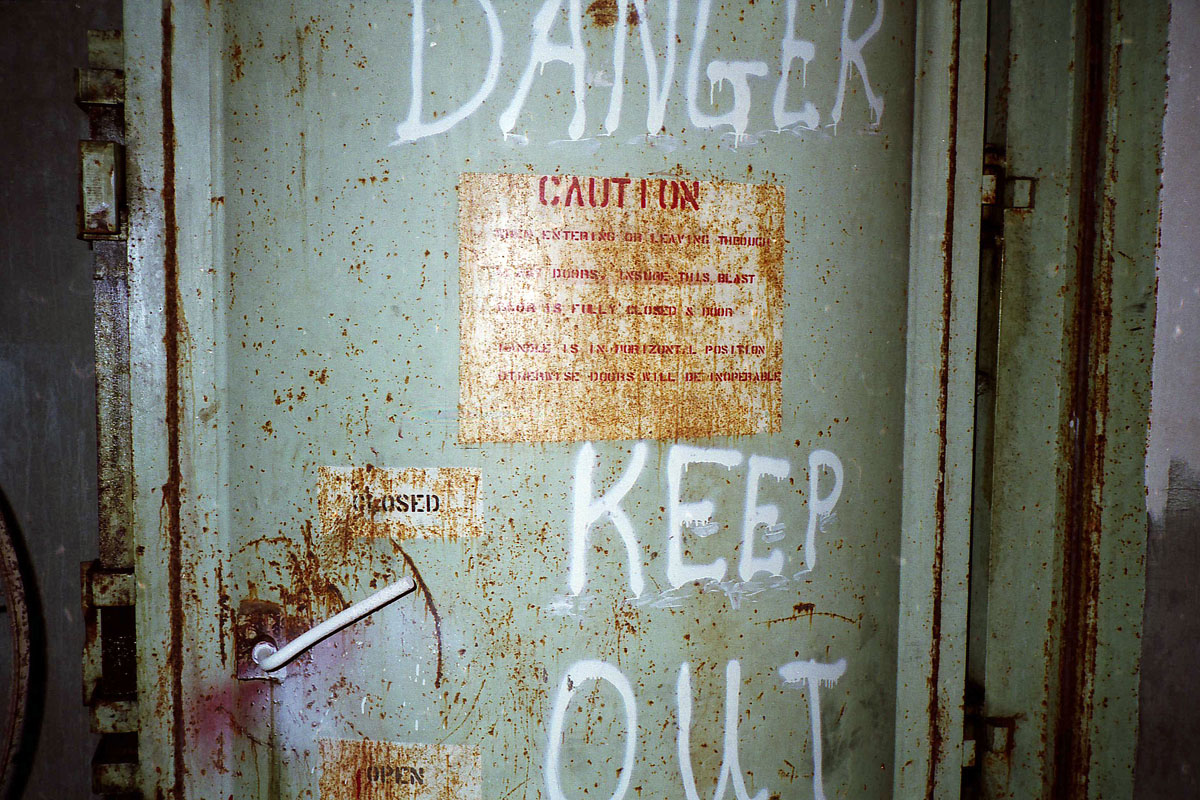

Blast door

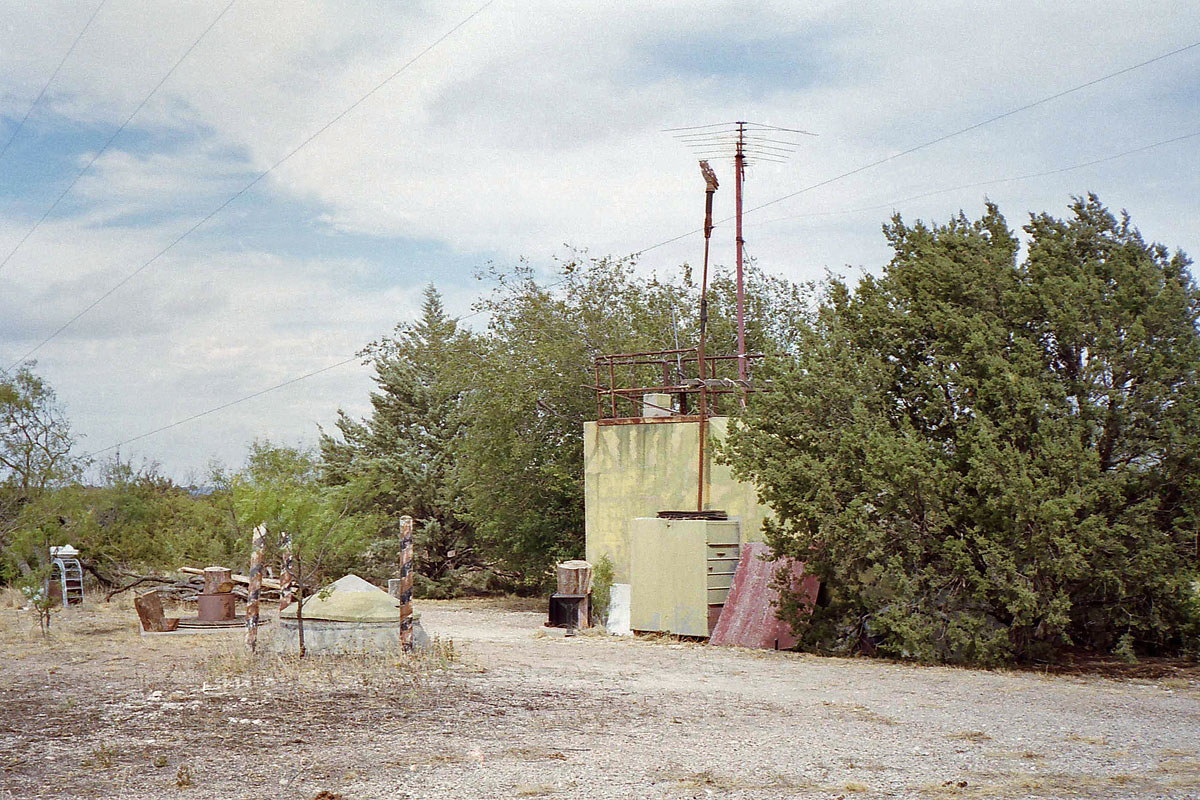

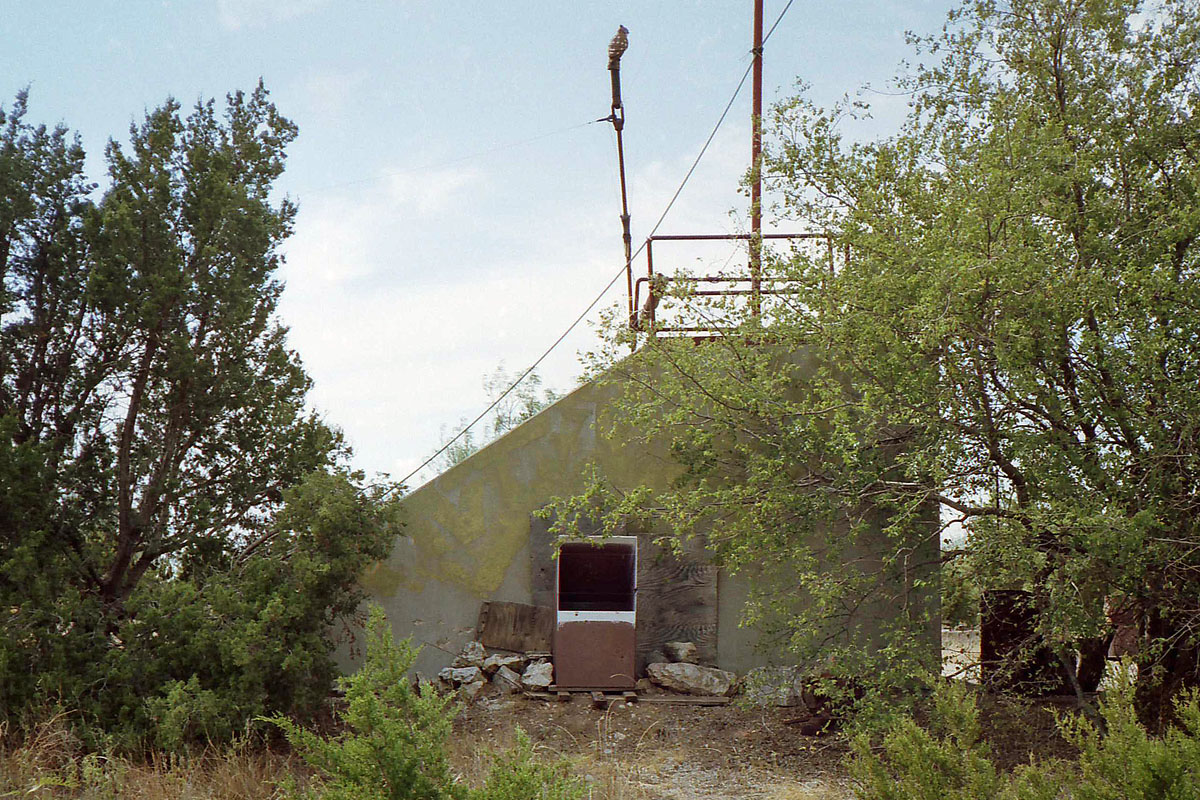

Non-historic feature concealing antenna silo

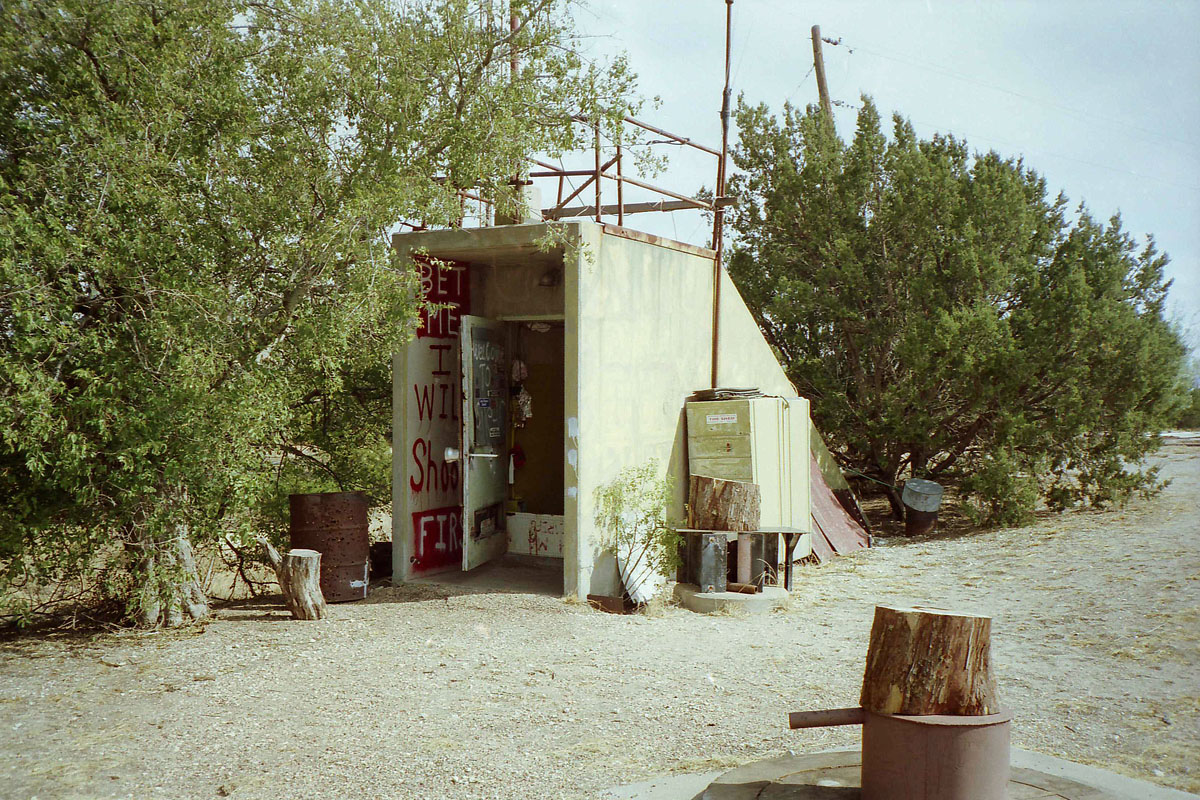

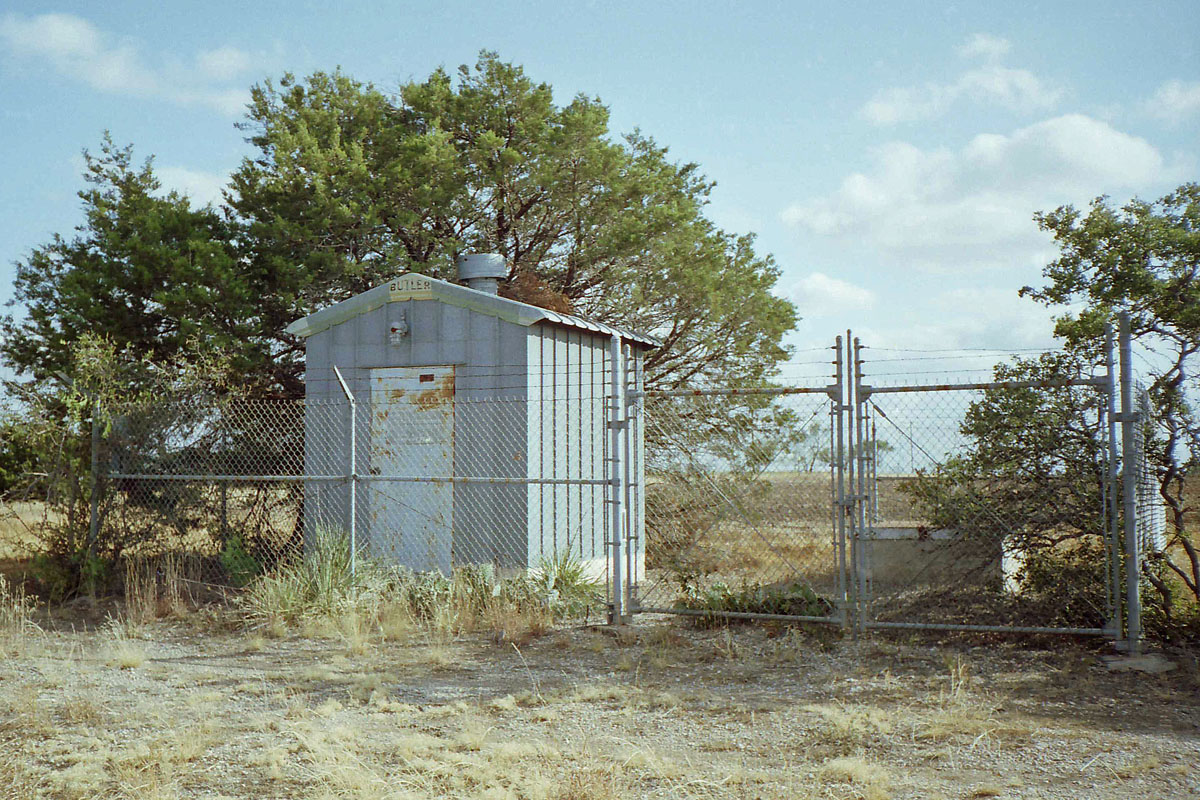

Non-historic feature concealing antenna silo Dyess Missile Site #10 Water System Annex TX, PIN 7821, ILC FPEE. The site #10 owner also acquired three water well sites located 3/4 mile west of the missile site. Each well is in a fenced enclosure. One has the original Butler building inside the fence, with a Dyess AFB phone number to call in case of emergency.

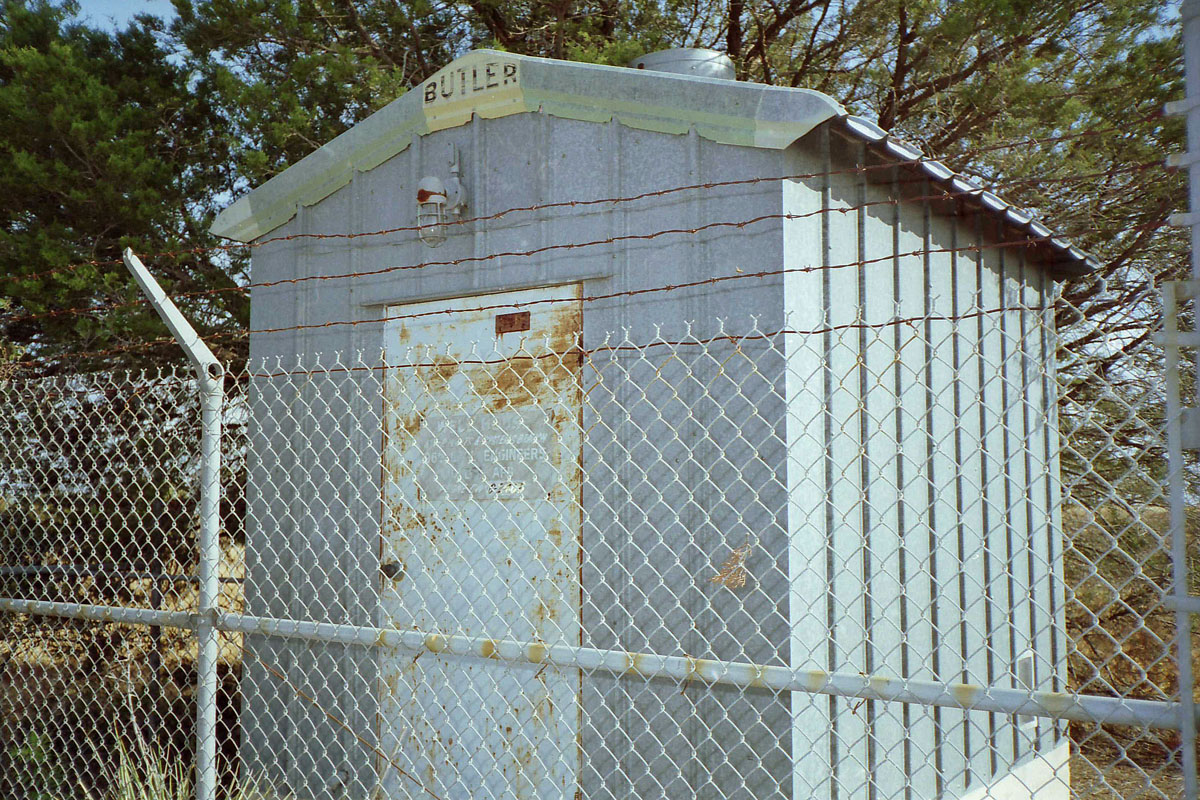

Building
General view Dyess Missile Site #11 (578-11) TX, PIN 7276. On 25 March 2000, I joined several other members of the Atlas ICBM Historical Society in Anson for Phase I of their historical survey of Dyess Missile Site #11. The site is owned by the Anson Independent School District, and we were accompanied by an AISD representative. Our mission on this day was to assess the aboveground portion of the site; and prepare for Phase II which will be a carefully planned and coordinated entry of the sealed underground portion of the site. This site has a lot of trash obscuring the silo cap. Taking a reading through a hole in the silo doors, we found water is present in the silo 23 feet below the top of the silo cap. This means we should be able to get to the upper level of the Launch Control Center, but the bottom level and silo access will be under water. The original entry door is lying next to the UHF antenna mount, not far from the concrete entry portal. Steel plate is welded into the door frame, and the original light fixture is in place above the doorway. The UHF Antenna has remains of the fiberglass cover on the mount. The communications manhole has its original door welded in place, upside down. The communications silo has much Teflon foam insulation in place; the protective cap is missing from the nitrogen fill valve, and the hinge pins have been knocked out from the silo lid. The escape hatch is still in place. The sight tube has the original cover plate bolted in place. The concrete bases for both blast detection optical sensor masts are still in place. One of two Quonset huts remains on site. The hut sits inside its own fenced enclosure adjacent to the main site, to the SW. The foundation from the second Quonset is also in a separate fenced enclosure, on the NW edge of the site. Site #11 did not have a separate water system site.

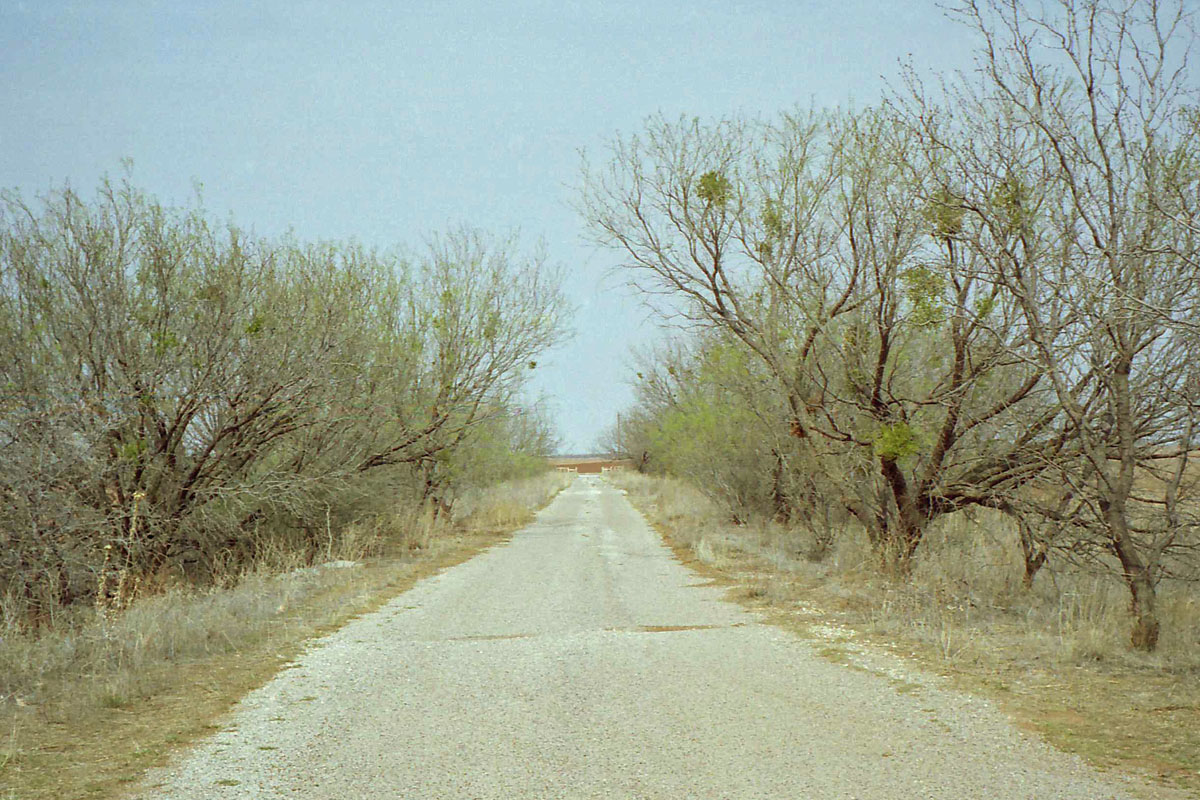

Access road

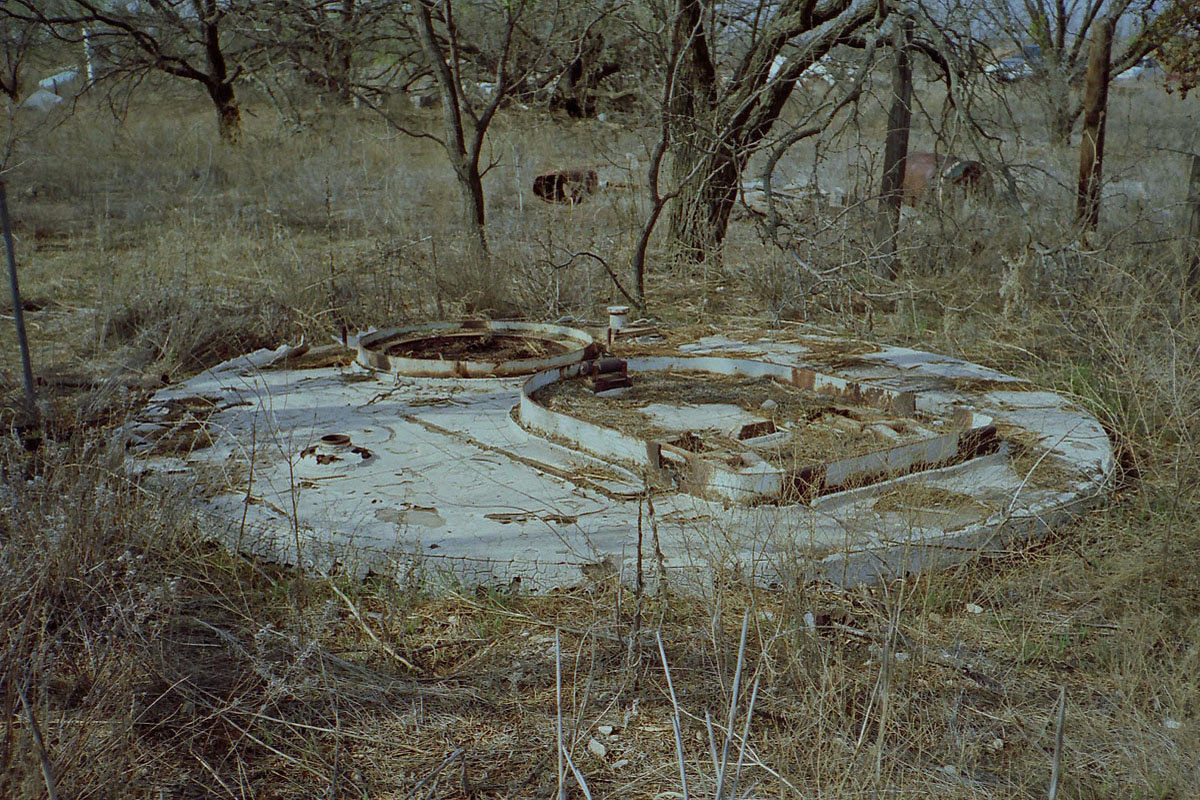

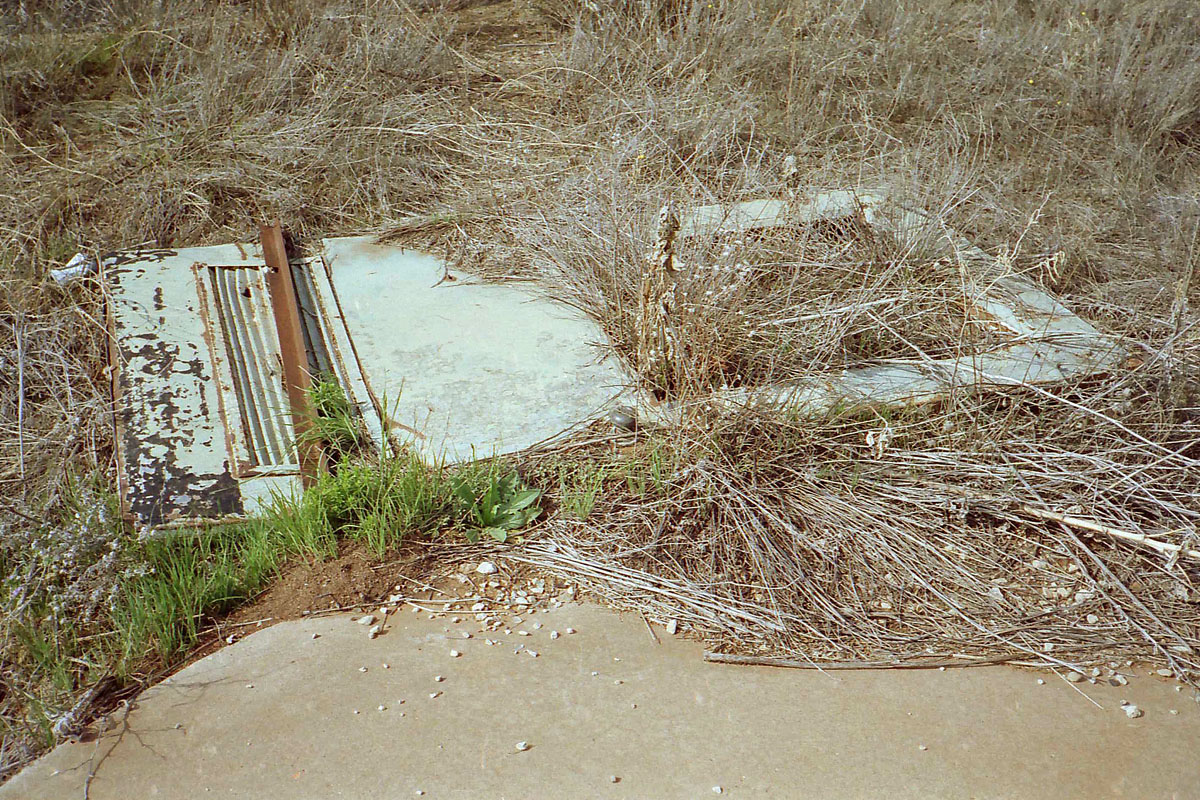

Silo door area
Exterior door from personnel entryway

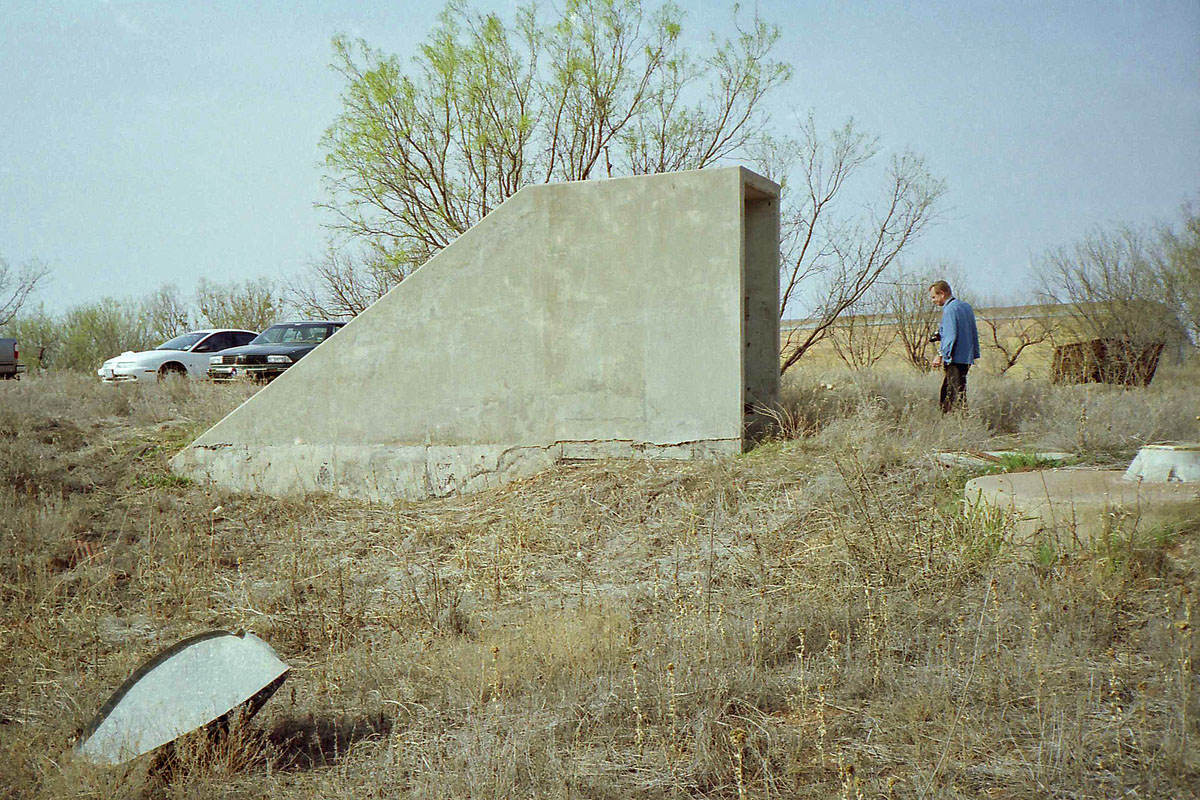

Personnel entryway
Personnel entryway

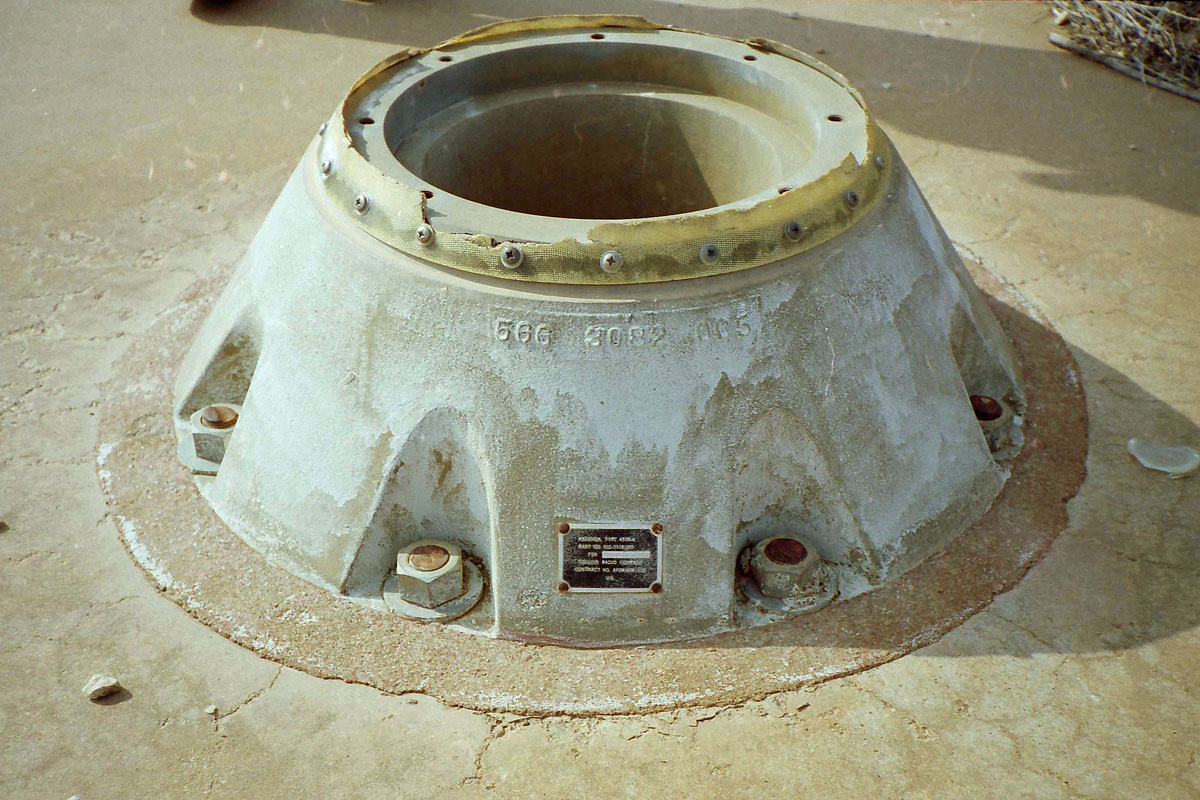

Hard UHF antenna mount

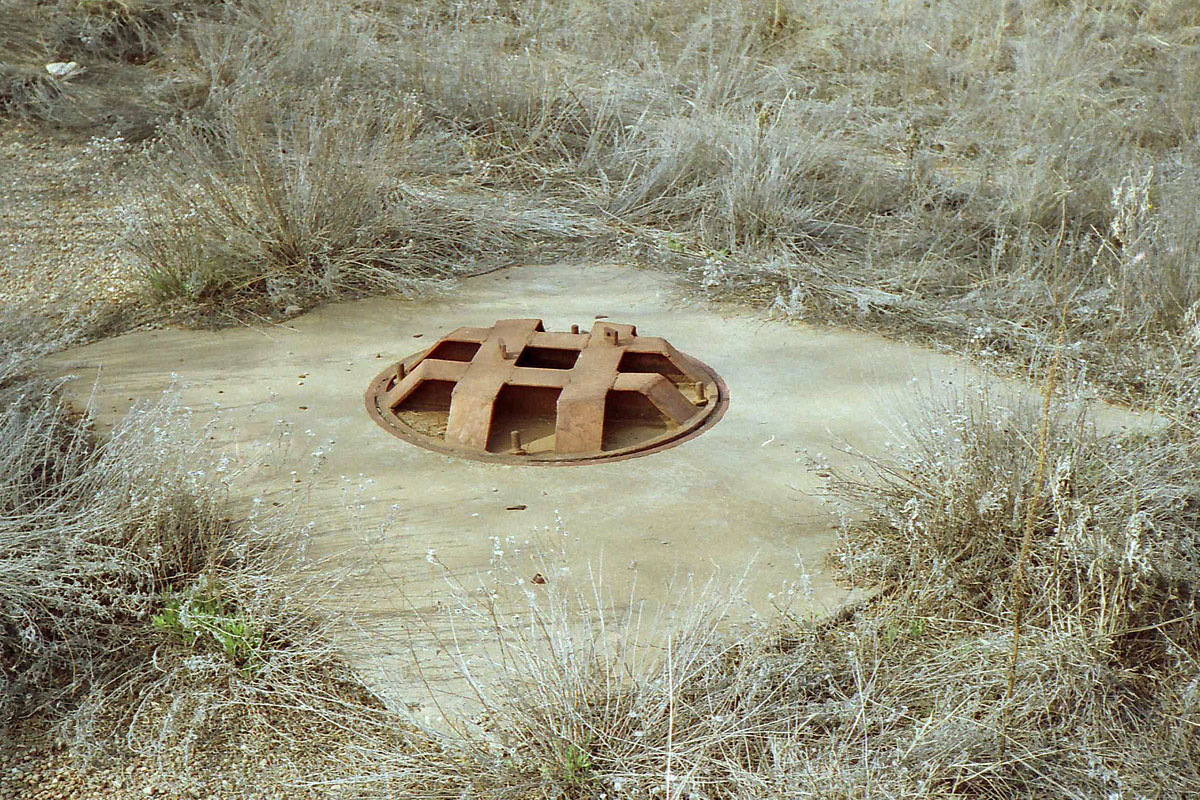

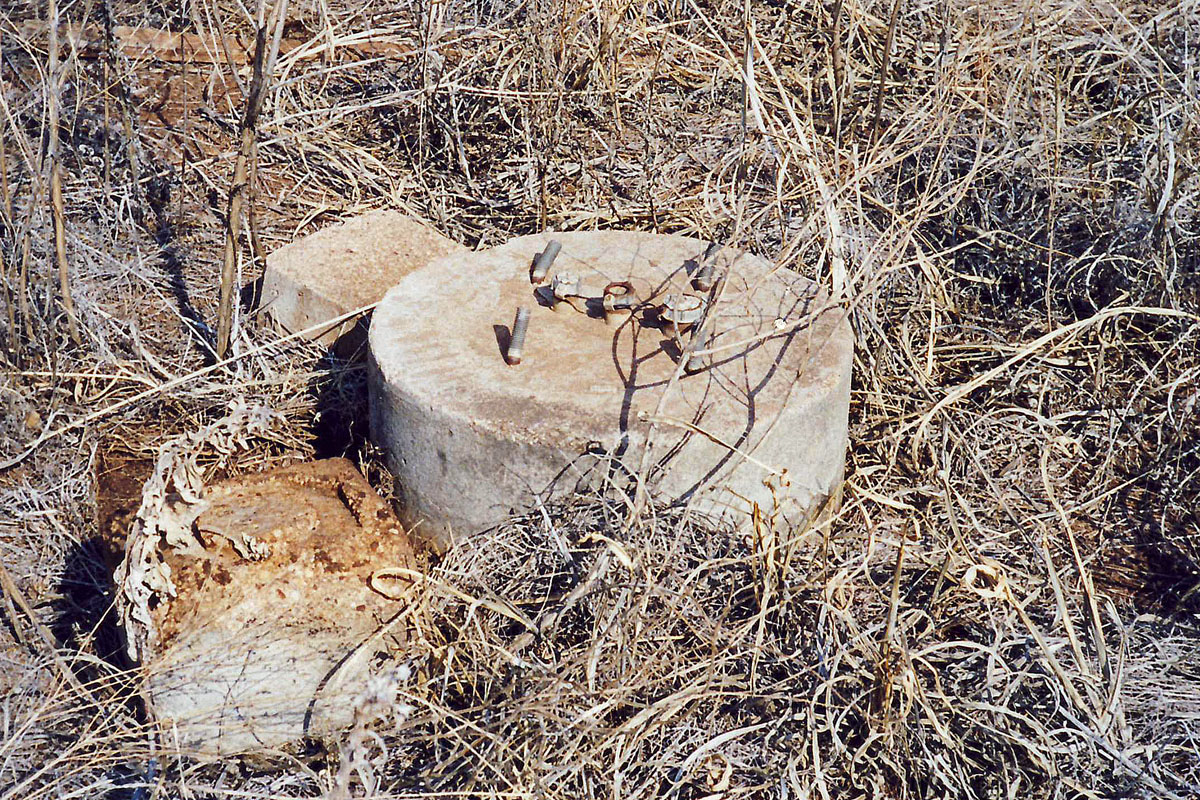

Communications manhole
Communications antenna silo detail

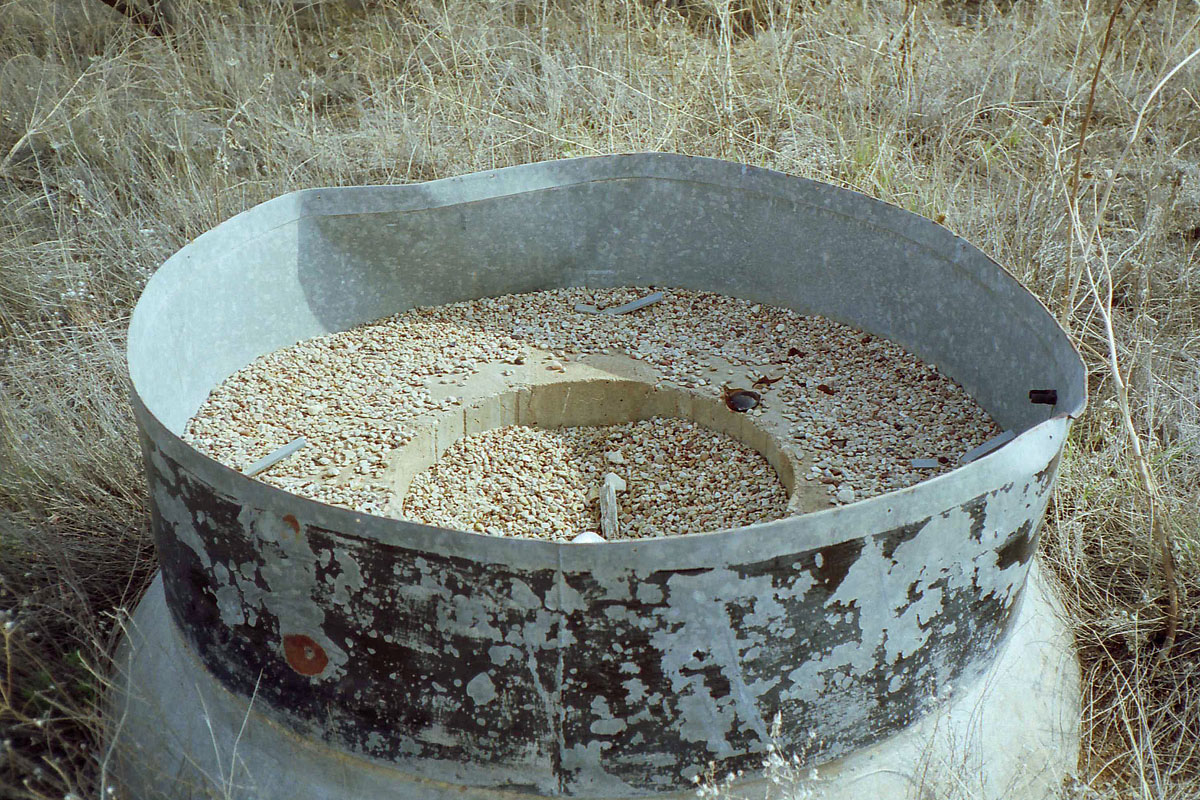

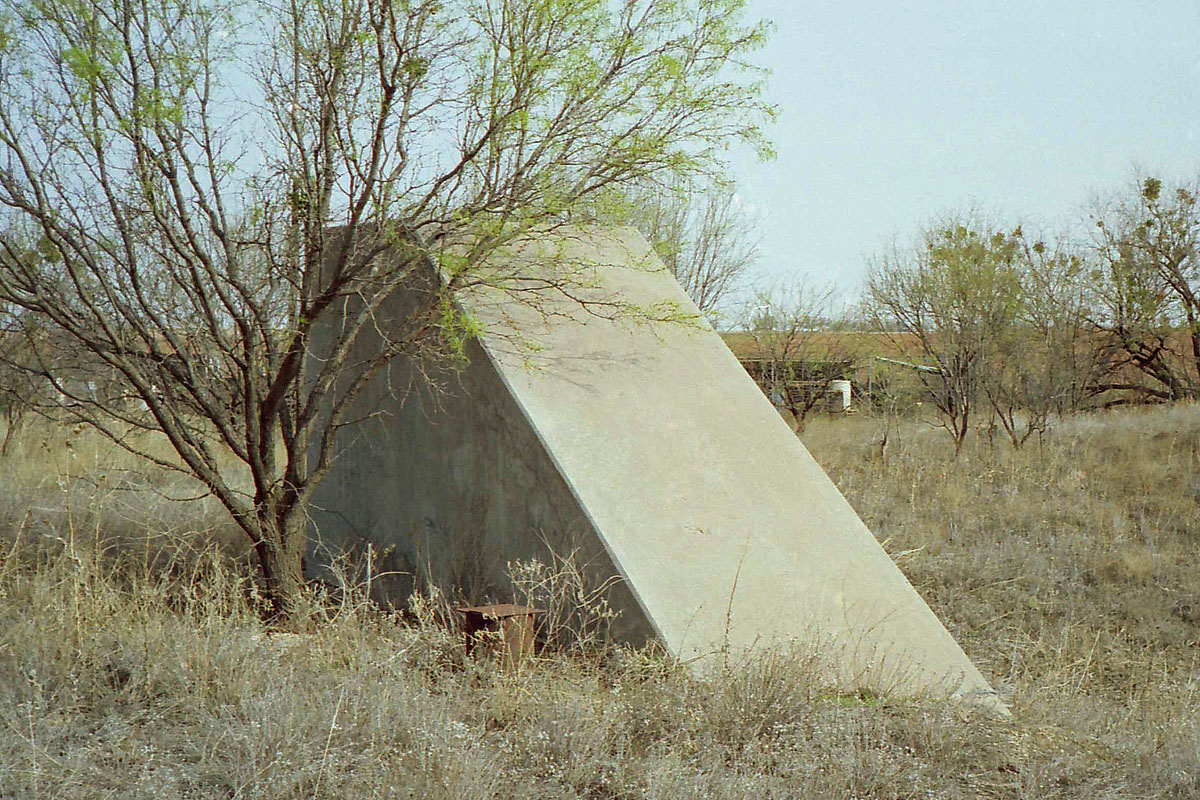

Communications antenna silo
Escape hatch

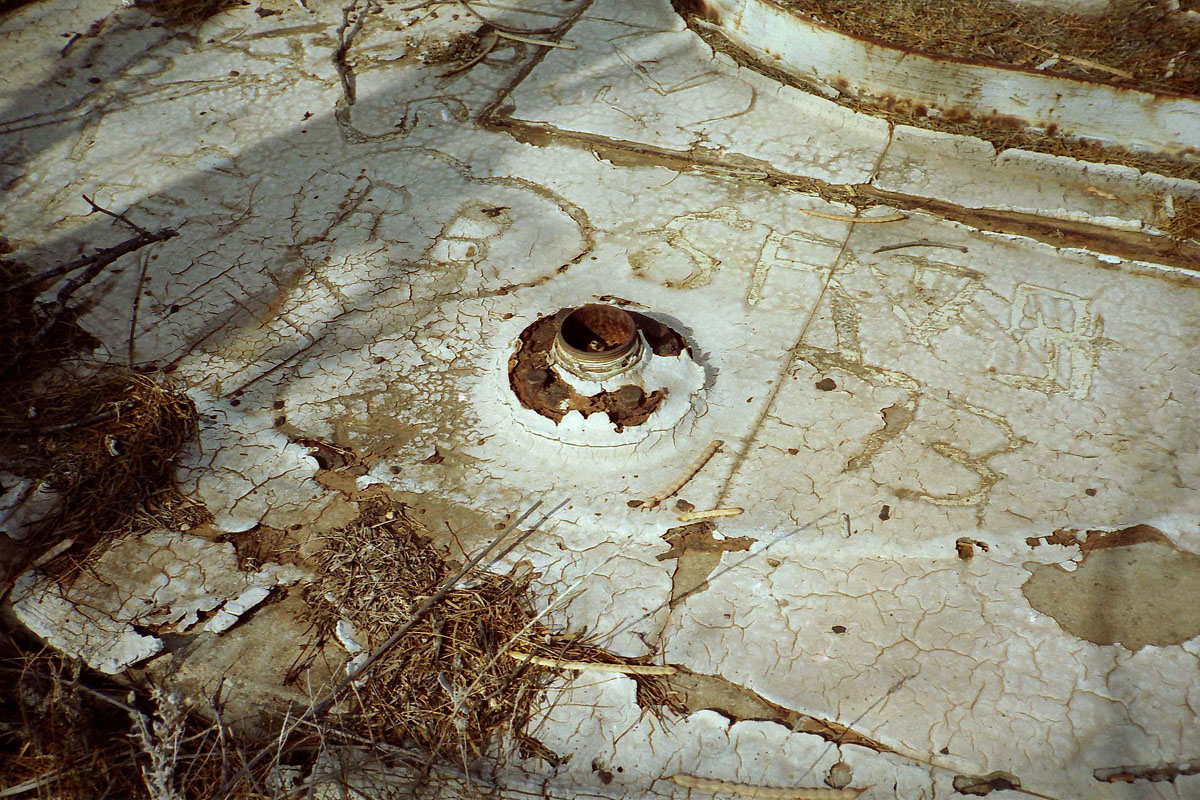

Sight tube

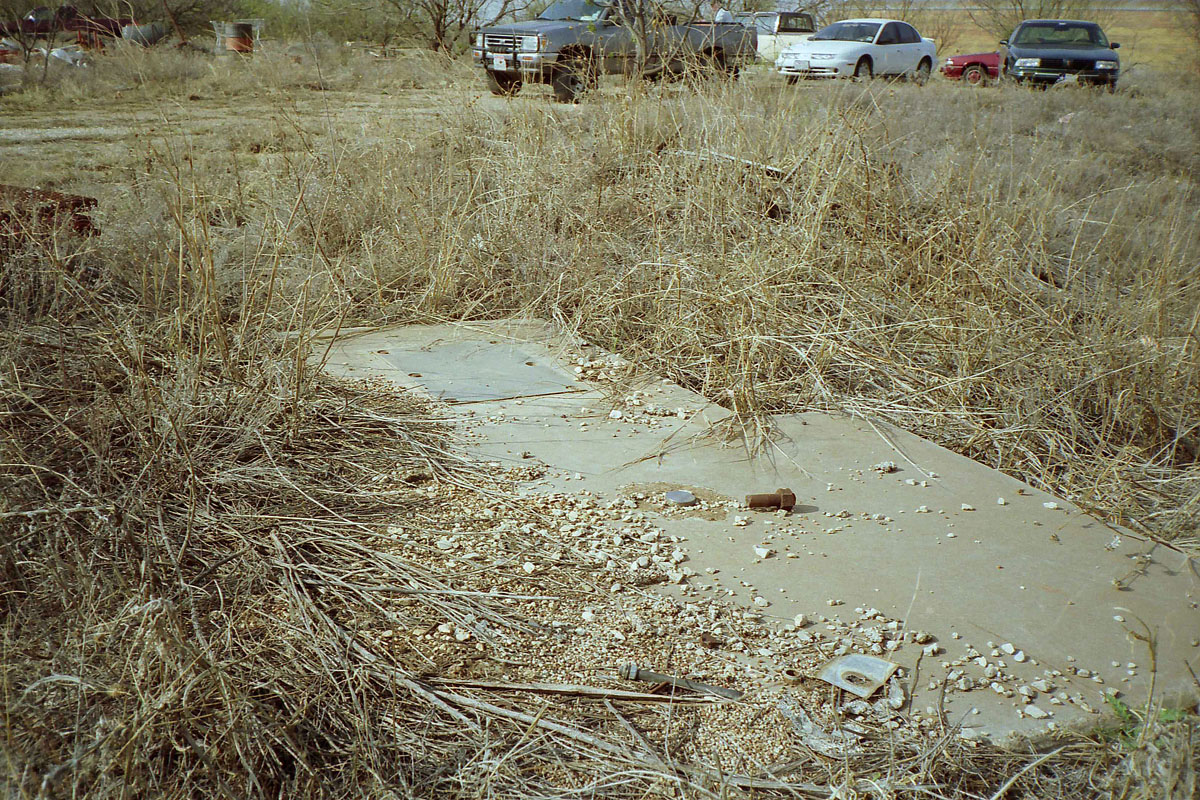

Concrete base for blast detection optical sensor mast

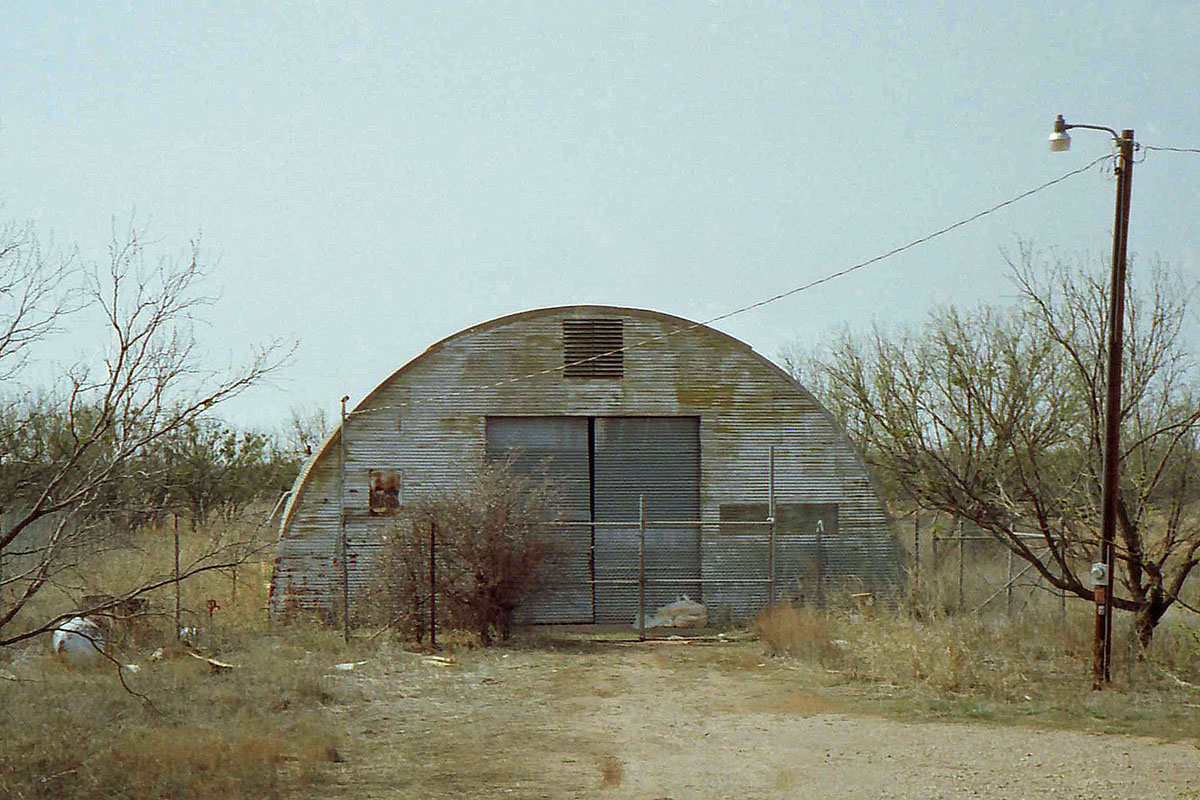

Quonset hut (warehouse)
Quonset hut (warehouse) Dyess Missile Site #12 (578-12) TX, PIN 7277. On 18 March 2000, I made the trip to Corinth West to tour Dyess Missile Site #12 at the owner's invitation. The owner lives topside while he remodels the property. We observed a foundation, the communications silo, and the silo doors. One Quonset hut remains, and there is a foundation slab from a second hut. The emergency escape hatch is intact, near the entryway. Underground, there is electricity in the LCC L1 (upper level) now. At the blast doors, much of the reflective tape is still in place. The owner has done lots of cleanup work in the control center in preparation for some renovation. The silo crib structure is gone, and the silo is about half full of water. From L2 we could look into the silo from the access tunnel and we could look up at the silo doors.

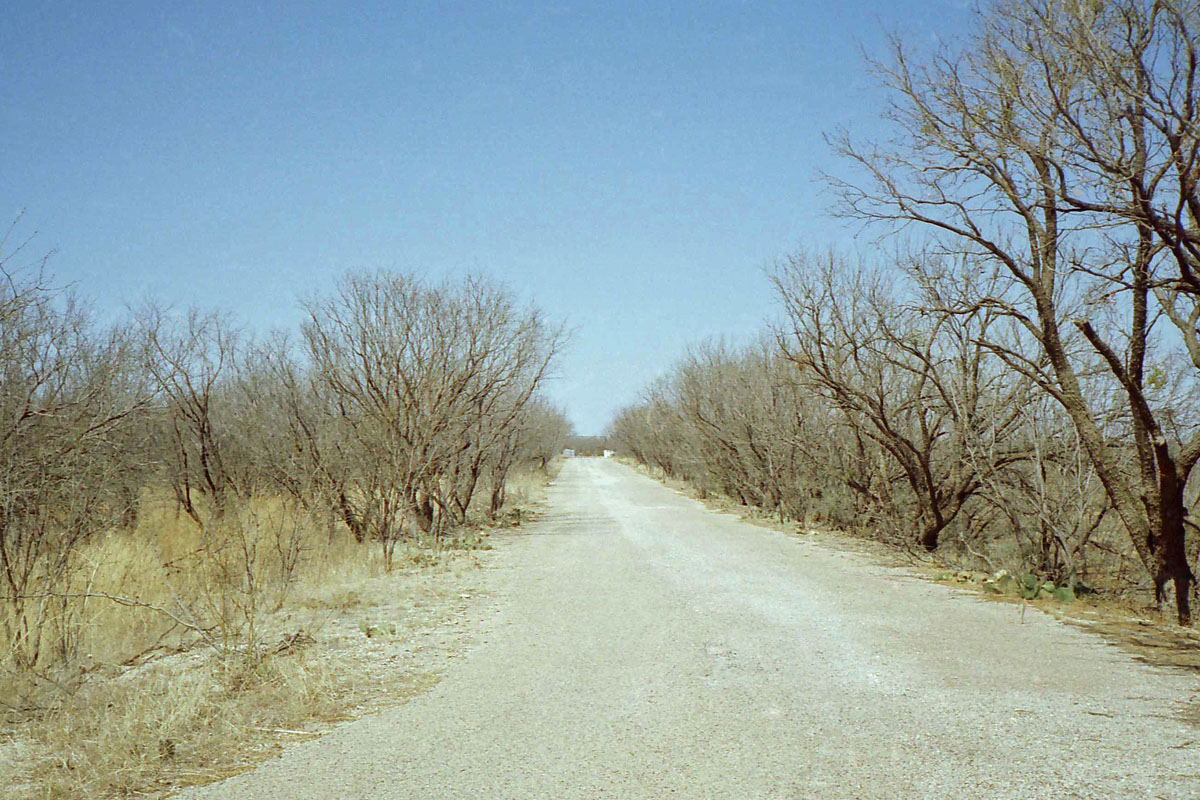

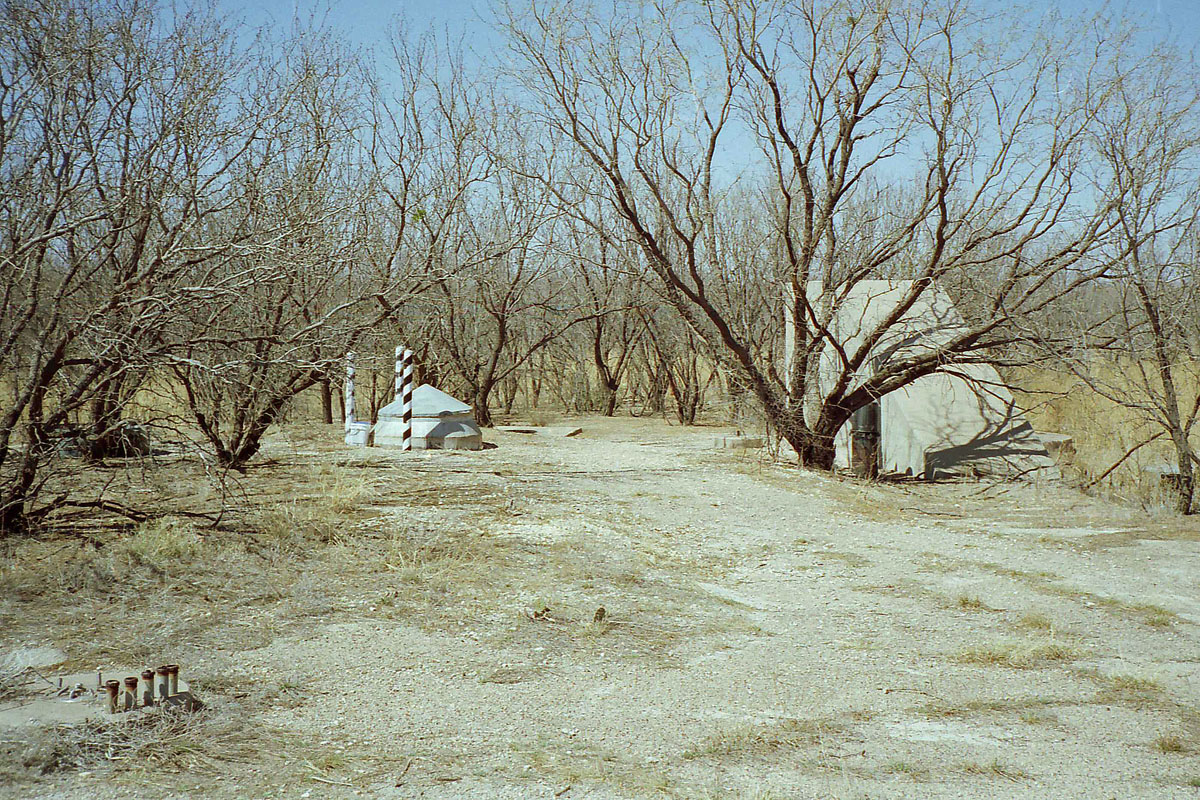

Access road

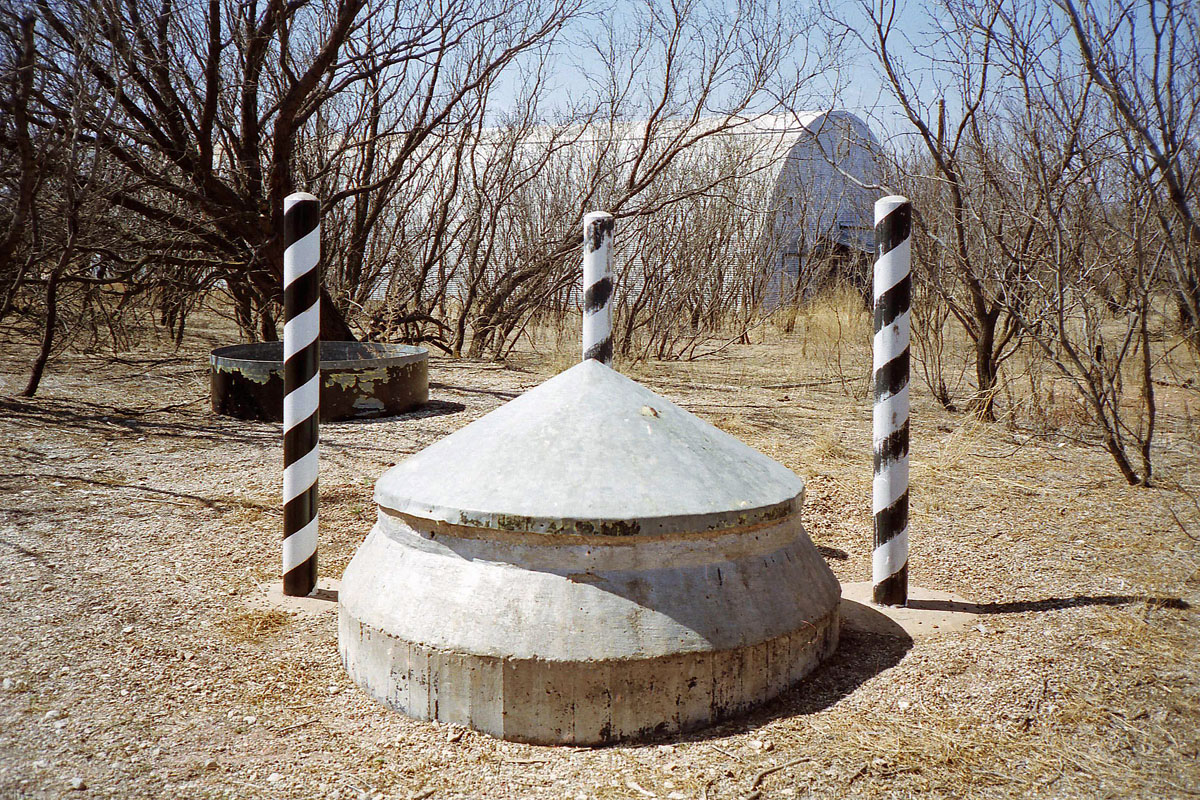

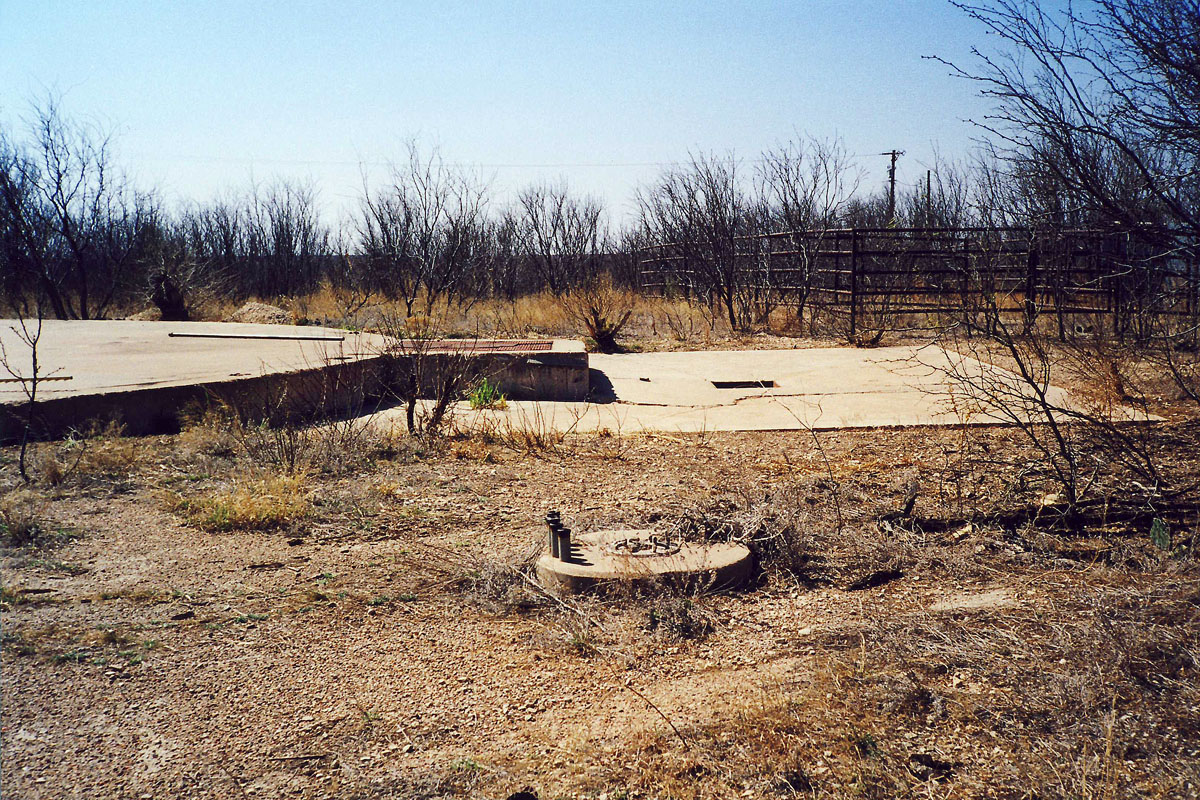

Silo cap area

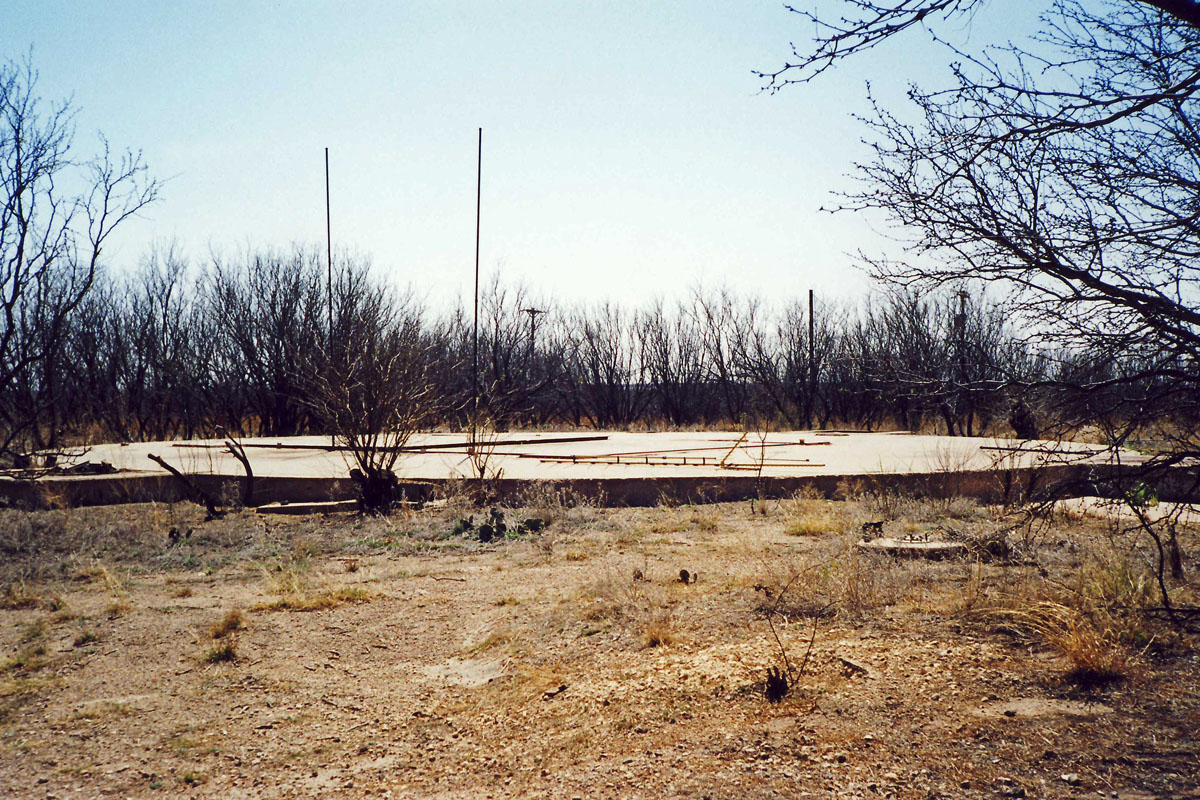

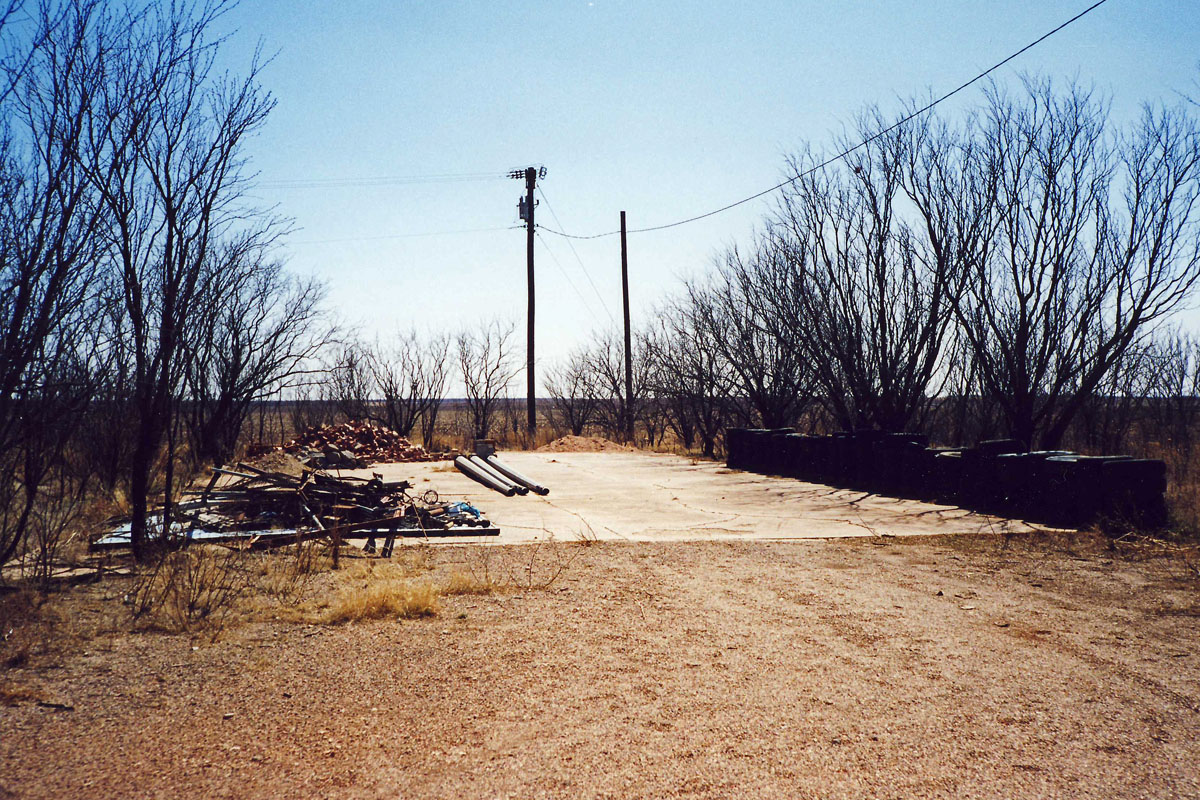

Concrete slab

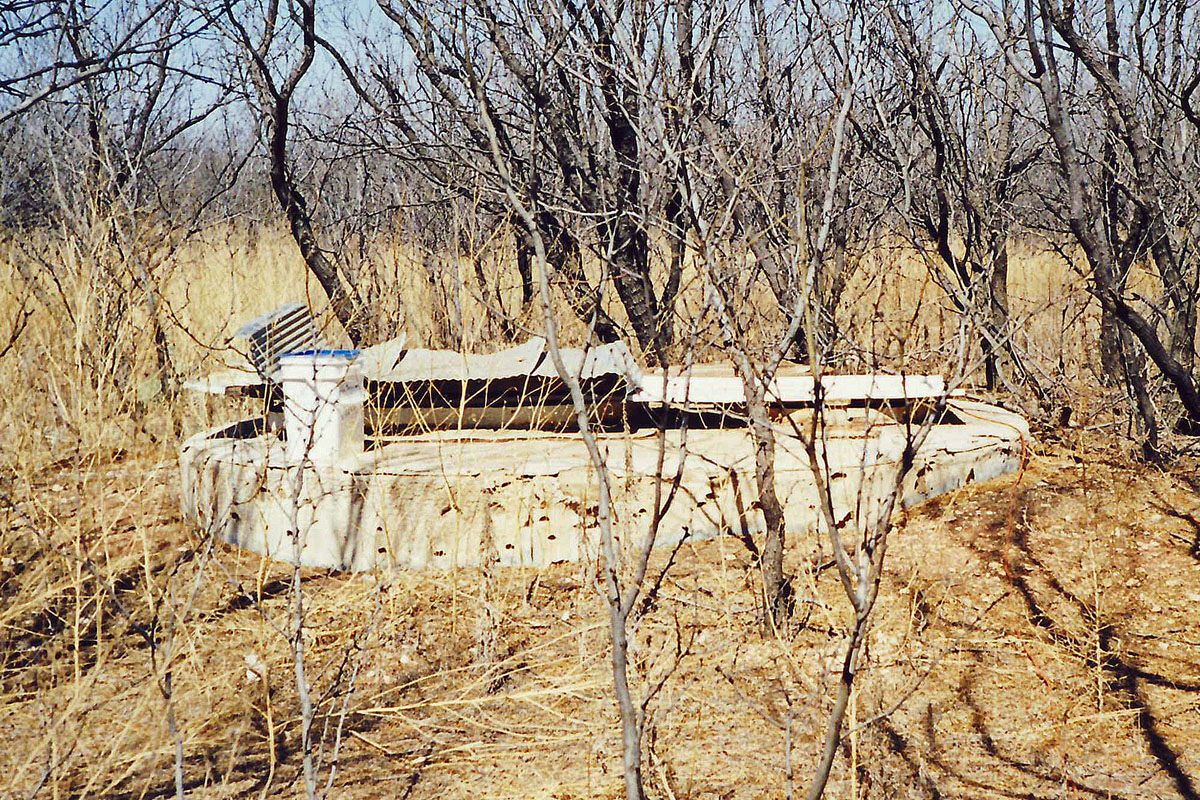

Communications antenna silo
Silo doors

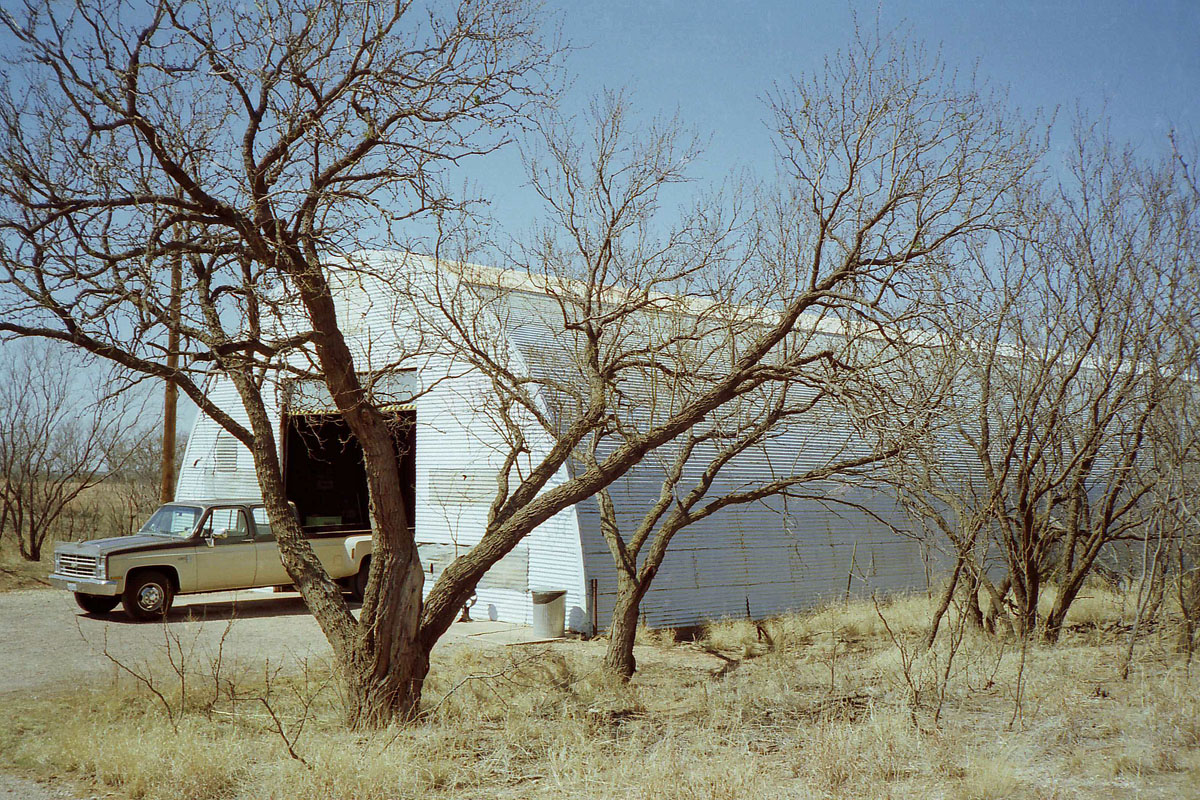

Quonset hut (warehouse)

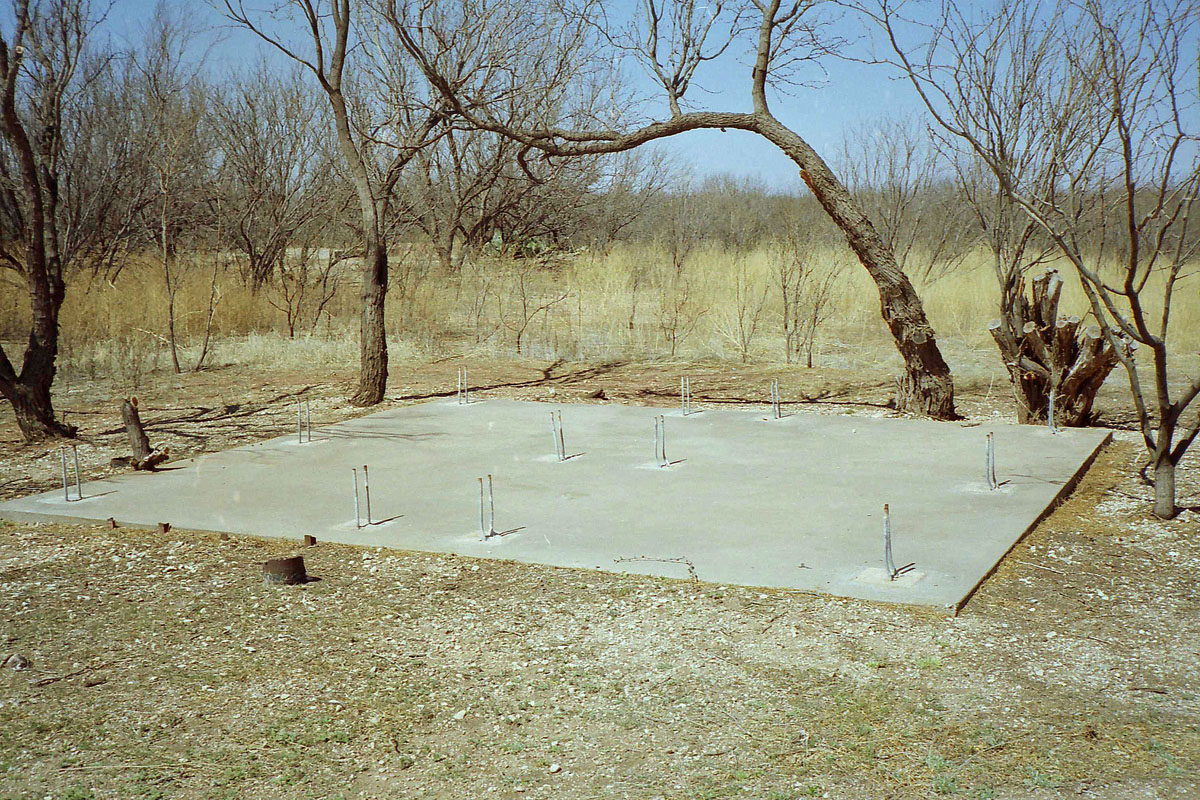

Concrete slab from former Quonset hut (warehouse)
Escape hatch
Personnel entryway and escape hatch

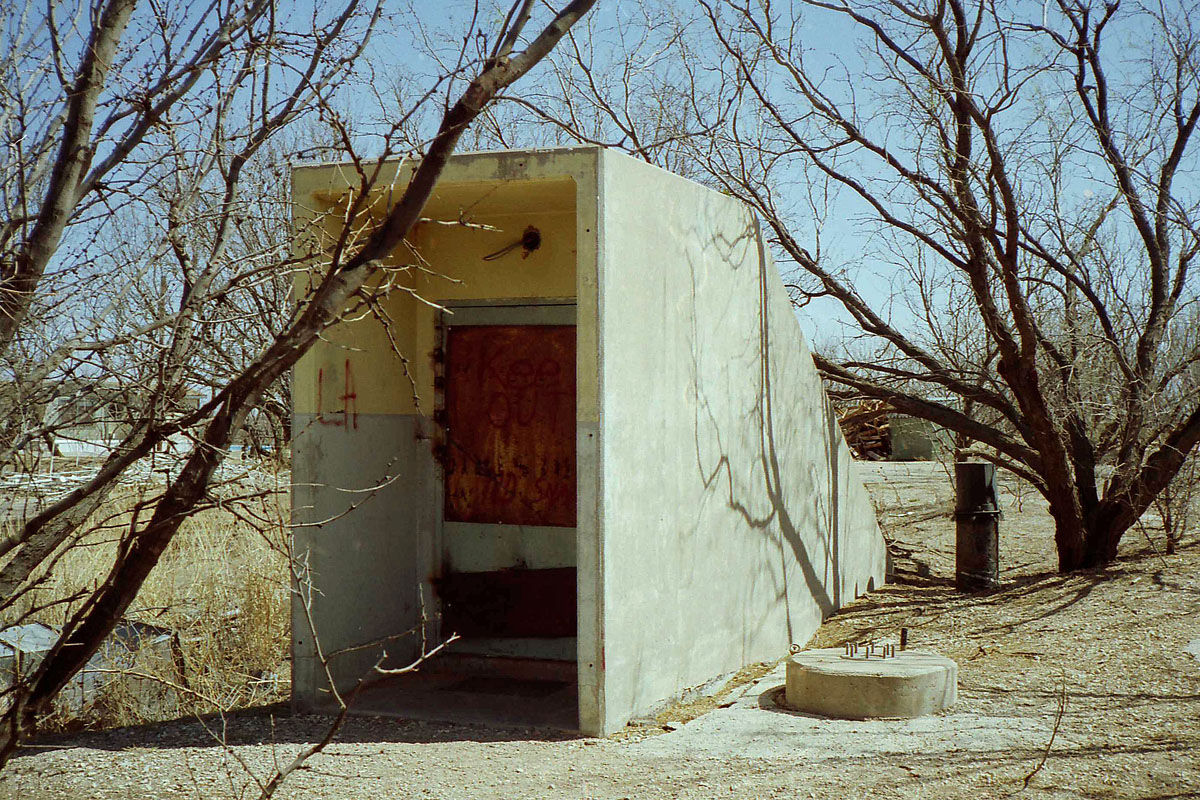

Personnel entryway
Personnel entryway
Control Center Level 1 (upper)

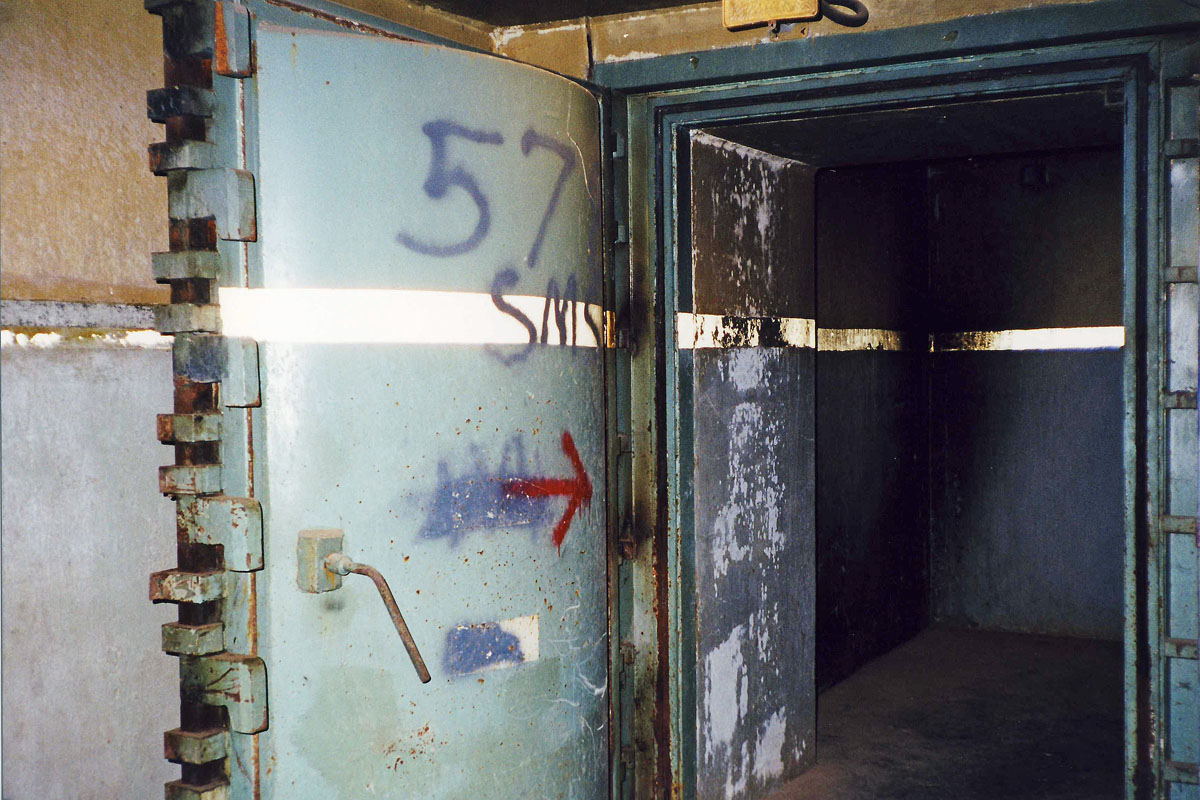

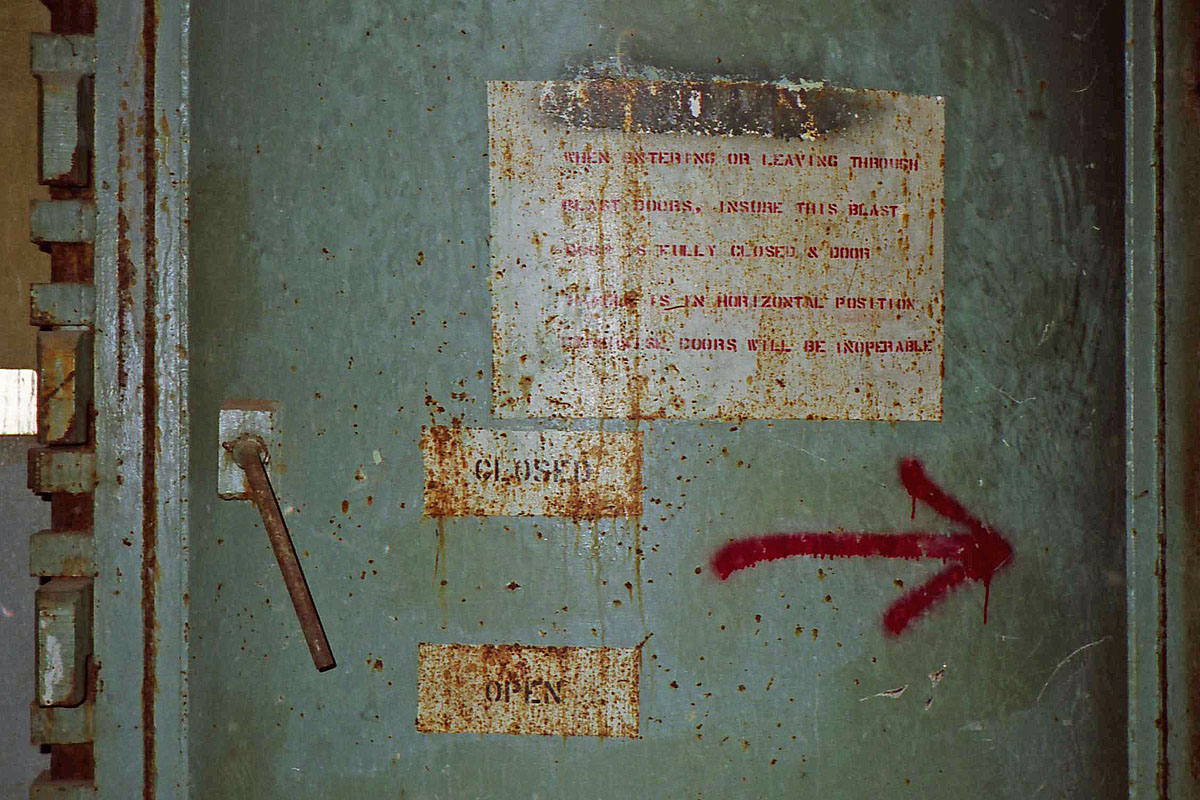

Blast door
Blast door

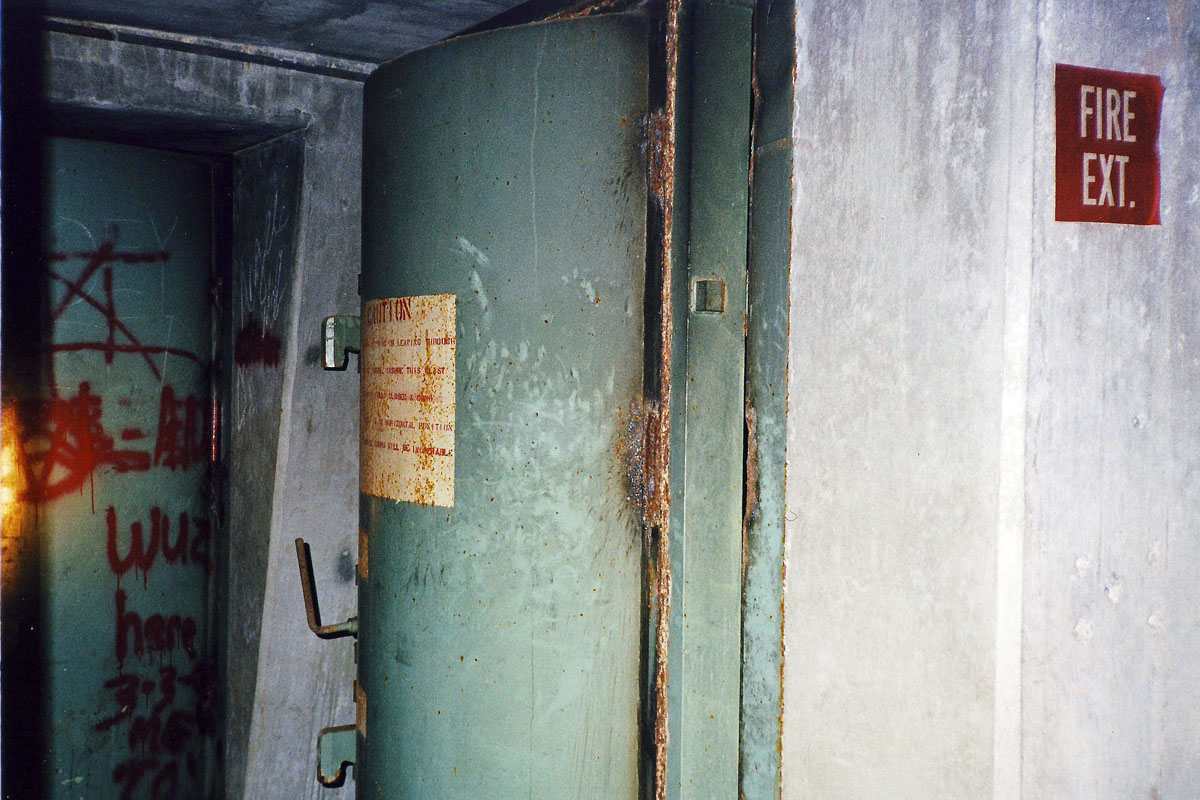

Blast door

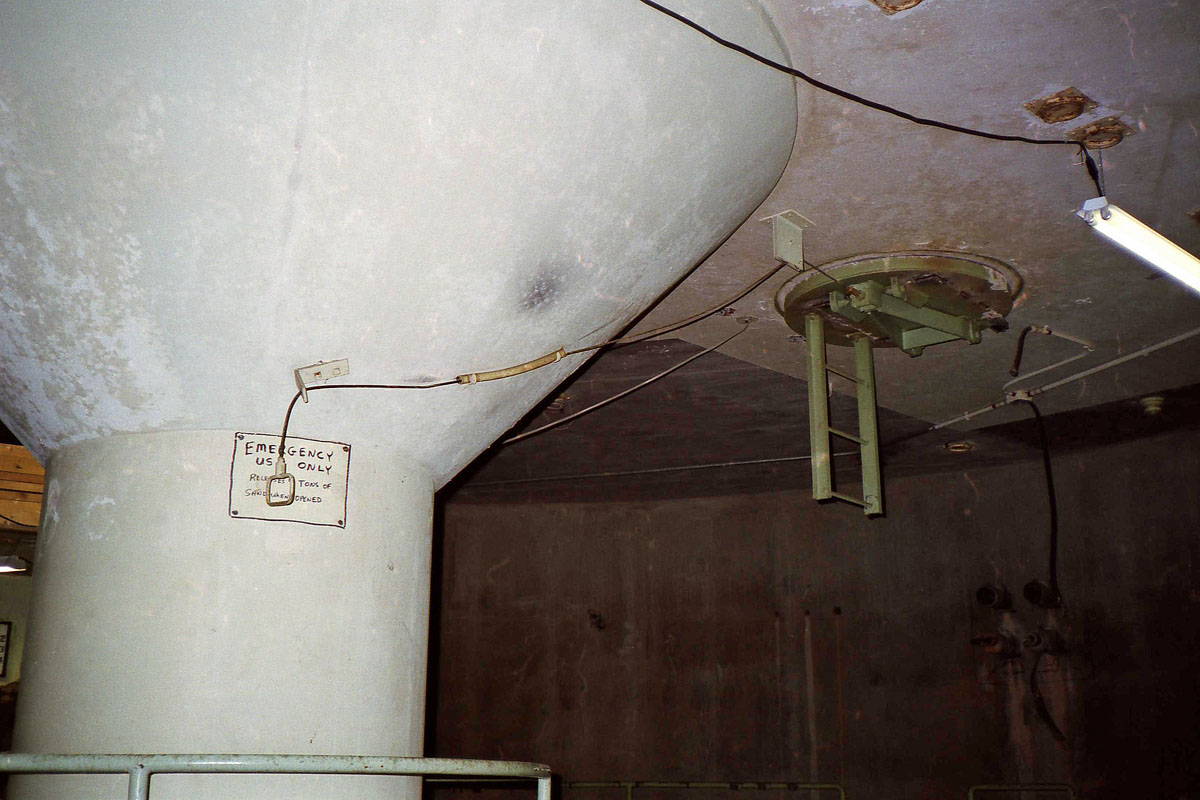

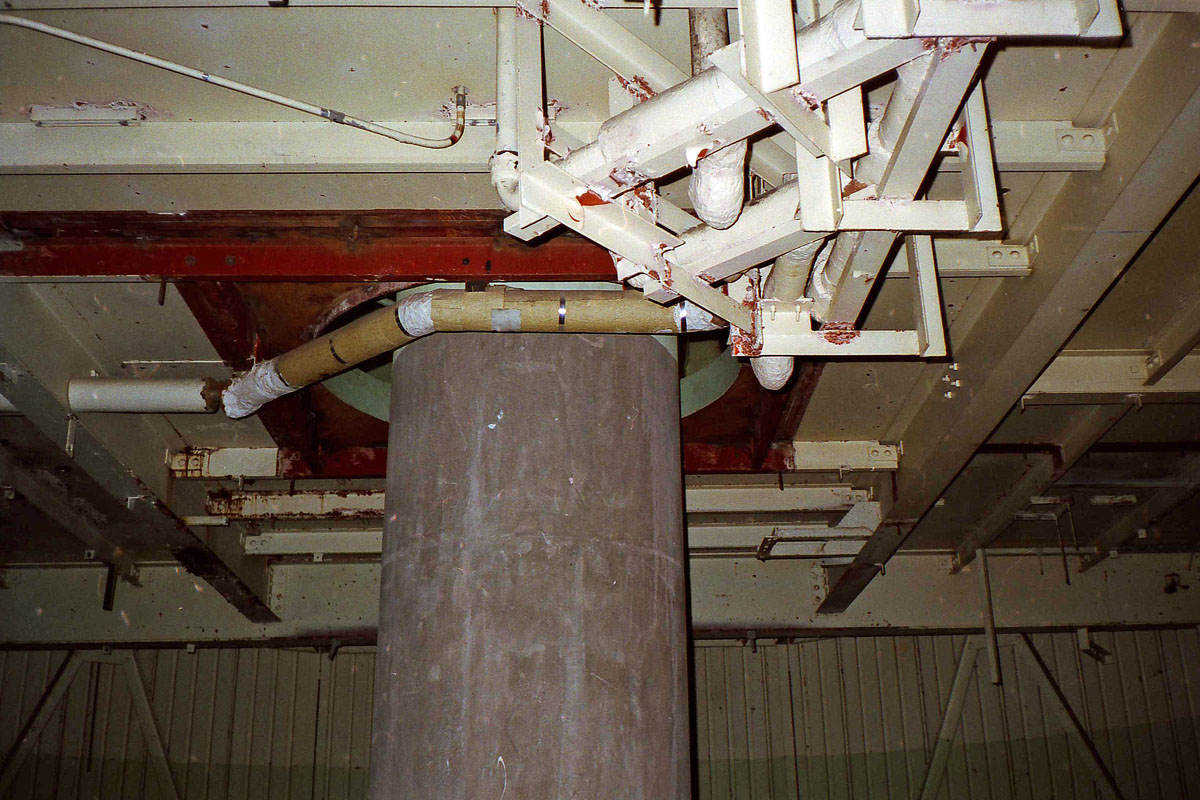

Launch control center L2 showing central column

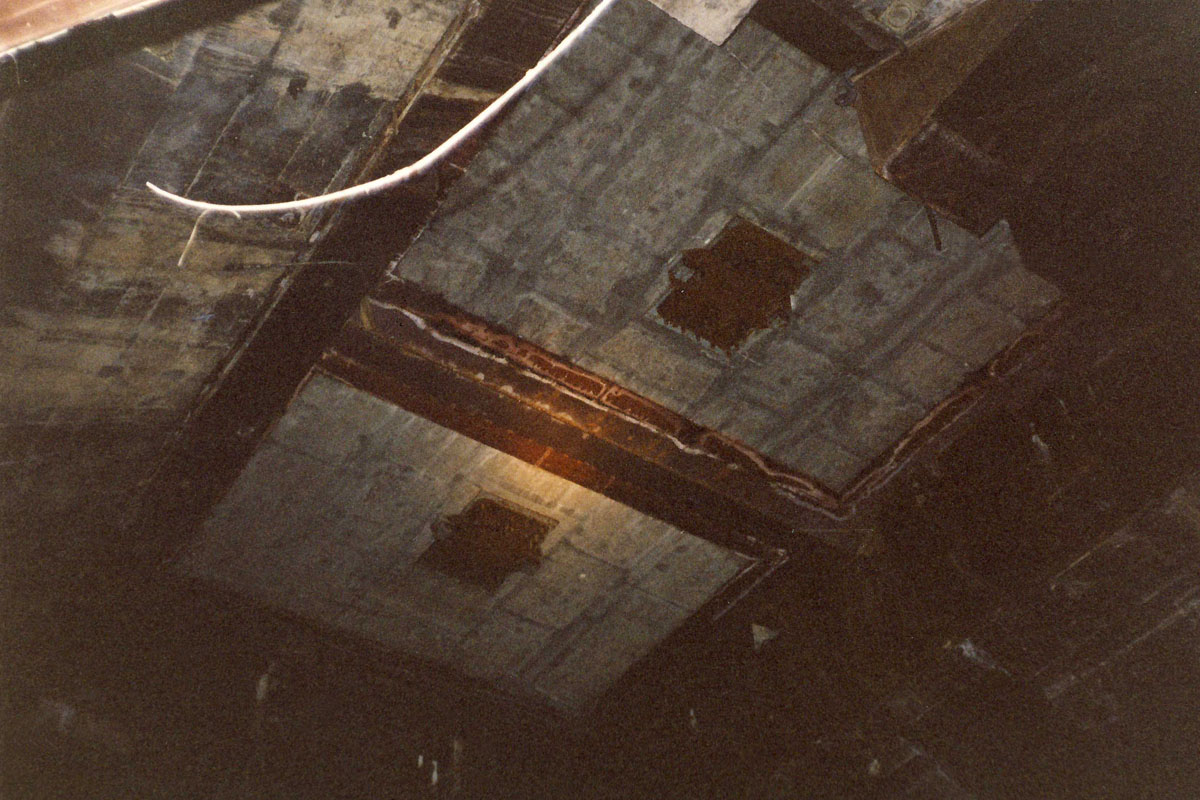

Silo doors viewed from L2 This facility did have a separate water systems site, consisting of a pumping station southwest of the site on Anson North Lake. I did not attempt a visit on this trip. Intersite Communications Cable System The Dyess missile sites were connected by a buried cable system. I have not attempted to find any remnants of this system. The following information is from a General Services Administration memo, written after the missile sites had been inactivated, and while the property was being disposed of.
"The property consists of 349 right of way easements and 138 licenses 16 1/2 feet in width and a total length of 200.5 miles located in the six counties set forth above. [Jones, Shackelford, Nolan, Taylor, Callahan, and Runnels Counties.] The entire system consists of 12 lines, each line containing cables of a varying number of pairs from two to 18. The cable interconnects all twelve missile sites to each other and to a command post located on Dyess Air Force Base. Also included are 33 manholes. Repeaters and repeater housings have been removed from the manholes by the Air Force, the repeaters for use elsewhere and the repeater housings for disposal through the Dyess AFB Redistribution and Marketing Office. That portion of the cable lying within the boundary fences of the missile sites has been disposed of to Progress Petroleum Corporation, Wichita Falls, Texas, under Defense Logistics Services Center contract."An Inventory attached to the above memorandum lists these equipment types:

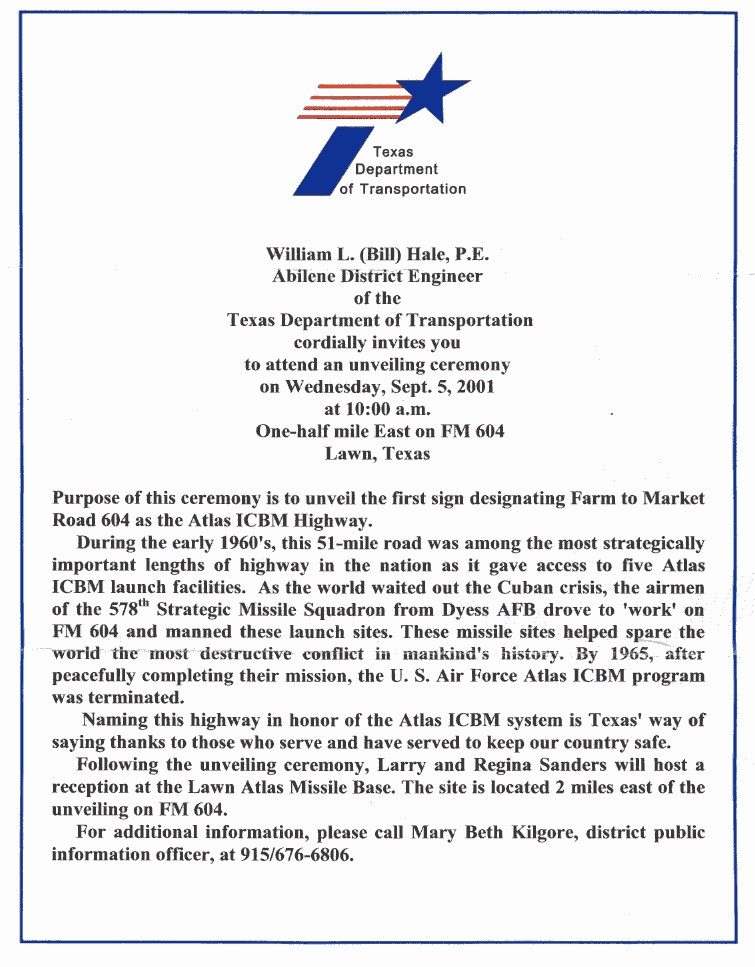

Man Holes, small CGER 4562Source: General Services Administration, Region 7, Real Property Division, Memorandum to File, May 11, 1966, Subject "Inspection Report, ICBM Communication Cable Line, Jones, Shackelford, Nolan, Taylor, Callahan, and Runnels Counties, Texas, D-Tex-604-P". This is filed under Record Group 291 at the National Archives and Records Administration-Southwest Region, Fort Worth, Texas. You may download a .pdf copy at my Uploads page. Atlas ICBM Highway Those of you who are members of the Atlas ICBM Historical Society know that Larry Sanders worked to have Farm to Market Road 604 designated as the Atlas ICBM Highway. The unveiling ceremony was on 5 September 2001, and Larry hosted a reception afterwards at site #6. Here is the invitation.
Man Holes, large CGER 8533
Repeater Housings (Raleigh) K 7241
Repeaters, Reg. Type (Raleigh) K-2442-1
Repeaters, Non-reg. (Raleigh) KC-2413-3
Terminal Box (Electro-kinetics) 161206-1
Larry Sanders and the Atlas ICBM Highway sign Presentation to Atlas ICBM Historical Society I was honored to be the guest speaker at a meeting of the society, on 18 December 2003. My slide deck is available for download as a .pdf file. Updated January 26, 2025
